Antiglare 10.1 Inch Chimei LCD Panel High Brightness With Full View
Angle N101ICG-L21
Chimei N101ICG-L21 Optical Features:
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 120/135g (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 216.96×135.6 mm (H×V) |
| Bezel Area : | 219.31×138.25 mm (H×V) |
| Outline Dimension : | 227.42×147.69 mm (H×V) |
| Outline Depth : | 2.16/4.85 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Museum, Bank, Restaurant, Airport, Shopping mall,Exhibition
,Railway station, Police office, Control room, Studio room. All the
places where require high display advertisement or Security
surveillance.
Our Company Advantage in Industrial LCD Panel:
N&S Electronics Co., LTD, integrated LCD touch display
solutions, which will make the process of your development easy.
The module seals LCD, touch screen, the foundation hardware and
software (driver), and universal connection (USB or RS232) to PC
and embedded system.We focuses on LCD display module integrate
touch screen in medium and small size between 5~12.1 inches. Touch
screen technology is the most popular form in applications ranging
from industry to consumer . It is more convenient compaired with
key button control technology. The input signal includes HDMI, AV,
VGA, S-video, DVI, YPbPr and 3G-SDI, etc.
Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10
years.
2. We got the ISO9001 quality management system certification.
3. We have our own R&D team, and accept OEM order as per
customer’s design.
4. We are the 5-years four star member of Globalsources and the
Three year Gold supplier in Alibaba.
5. Our main material LCD panels all are directly imported from
Samsung and LG in Korea.
6. All products win the certificate of CE,CCC,FCC and RoHS.
7. Prompt delivery, we always have the LCD panels in stock.
Delivery can be made in 5 days.
8. 3-years warranty is offered.
Applications for Chimei LCD Panel , N101ICG-L21:
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems

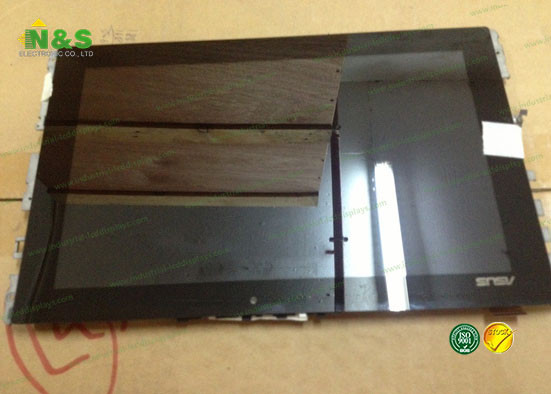

Details Picture for the N101ICG-L21 LCD Screen Display Panel:
