Flat Rectangle Innolux LCD Panel Landscape Type HJ070NA-13A / HJ070NA-13B

Ask Lasest Price
Brand Name :	Innolux LCD Panel
Model Number :	HJ070NA-13A HJ070NA-13B
Certification :	ISO9001
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Supply Ability :	500PCS/DAY
Delivery Time :	2-3 Working Days after order confirmation

Add to Cart

Product Details
Company Profile

Flat Rectangle Innolux LCD Panel Landscape Type HJ070NA-13A / HJ070NA-13B

Flat Rectangle Innolux LCD Panel Landscape Type HJ070NA-13A / HJ070NA-13B

Optical Features :

Panel Model :	HJ070NA-13A	HJ070NA-13B
Panel Size :	7.0 inch	7.0 inch
Dot Resolution :	1024(RGB)×600 (WSVGA)	1024(RGB)×600 (WSVGA)
Pixel Configuration :	RGB Vertical Stripe	RGB Vertical Stripe
Pixel Density :	169 PPI	169 PPI
Aspect Ratio :	17:10 (H:V)	17:10 (H:V)
Form Factor :	Flat Rectangle Display	Flat Rectangle Display
Dot Pitch :	0.050×0.150 mm (H×V)	0.050×0.150 mm (H×V)
Pixel Pitch :	0.150×0.150 mm (H×V)	0.150×0.150 mm (H×V)
Weight :	92.8g (Typ.)	TBD
Surface :	Clear
Active Area :	153.6×90 mm (H×V)	153.6×90 mm (H×V)
Bezel Area :	156.4×92.8 mm (H×V)	156.4×92.8 mm (H×V)
Outline Dimension :	165.75×105.39 mm (H×V)	165.75×105.39 mm (H×V)
Outline Depth :	2.45±0.2 mm	2.45±0.2 mm
Holes & Brackets :	Without	Without
Landscape or Portrait :	Landscape type	Landscape type
Touch Panel :	Without	Without
Display Mode :	TN, Normally White, Transmissive	TN, Normally White, Transmissive
Brightness :	250 cd/m² (Typ.)	300 cd/m² (Typ.)
Contrast Ratio :	700 : 1 (Typ.) (Transmissive)	500 : 1 (Typ.) (Transmissive)
Display Color :	262K/16.7M (6-bit / 6-bit + Hi-FRC)	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut :	70% NTSC (CIE1931)	70% NTSC (CIE1931)
Response Time :	10/15 (Typ.)(Tr/Td)	10/15 (Typ.)(Tr/Td)
Viewing Angle :	70/75/75/75 (Typ.)(CR≥10) (L/R/U/D)	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
White color Chromaticity :	Wx:0.310; Wy:0.330	Wx:0.310; Wy:0.330
White Variation :	1.33/1.43 (Typ./Max.)(9 points)	1.33/1.43 (Typ./Max.)(9 points)

Applications:

The maoyt. process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged

powder-coated steel enclosure, ensures maximum shock and vibration resistance. These monitors are ideal for a wide range of demanding applications including industrial, military, law enforcement, aviation, marine, inspection, surveying, cranes, oceanic, entertainment and transportation.

CHIMEI INNOLUX HJ070NA-13A HJ070NA-13B Backlight Systems:

Panel Model :	HJ070NA-13A	HJ070NA-13B
Lamp Position :	Edge light type	Edge light type
Lamp Type :	WLED	WLED
Lamp Life Time :	15K(Min.) (Hours)	15K(Min.) (Hours)
Lamp Voltage :	9.3/10.2V (Typ./Max.)	9.3/10.2V (Typ./Max.)
Lamp Current :	160/200mA (Typ./Max.)	160/200mA (Typ./Max.)
Lamps Power Consumption :	1.488W (Typ.)	1.488W (Typ.)
Interface Type :	Included in panel signal interface	Included in panel signal interface
Lamp Driver Board :	No	No

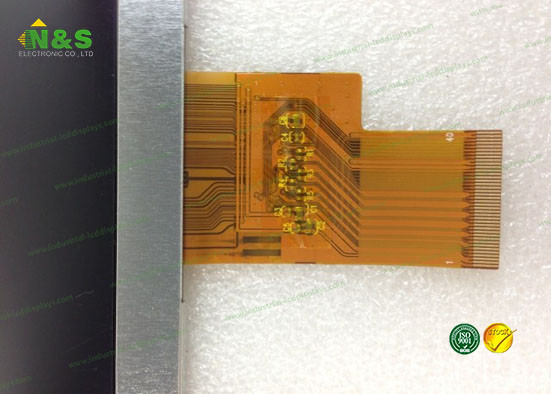

Details Pictures for the HJ070NA-13A HJ070NA-13B Screen Display Panel:
