    New Original High Brightness LCD Panel No Holes / Brackets For Digital Camera

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : ZJ070NA-03C
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    New Original High Brightness LCD Panel No Holes / Brackets For Digital Camera

    7.0inch ZJ070NA-03C 500:1 High Brightness LCD Innolux LCD Panel


    Company Strength:

    1. ISO9001 certificated, Factory Direct Supplied.
    2. Competitive Price and Short Lead-time.
    3. Professional Team with Rich Experiences in Design / Mfg / Quality Control
    4. Small MOQ Support & Fast Response to Customers.
    5. Long Porduct Life Time.

    Specifications:


    Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.


    Panel Size :7.0 inch
    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :134 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0642×0.1790 mm (H×V)
    Pixel Pitch :0.1926×0.1790 mm (H×V)
    Weight :TBD
    Surface :Hard coating (3H)
    Active Area :154.08×85.92 mm (H×V)
    Outline Dimension :165.75×100 mm (H×V)
    Outline Depth :4.35±0.3 mm
    Holes & Brackets :Without
    Landscape or Portrait :Landscape type
    Touch Panel :Embeded (4-wire Resistive)
    Display Mode :TN, Normally White, Transmissive
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :70% NTSC (CIE1931)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)

    Museum, Bank, Restaurant, Airport, Shopping mall,Exhibition ,Railway station, Police office, Control room, Studio room.


    Competitive Advantage:


    1. We are a leading manufacturer of LCD products for more than 10 years.

    2. We got the ISO9001 quality management system certification.

    3. We have our own R&D team, and accept OEM order as per customer’s design.

    4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.

    5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.

    6. All products win the certificate of CE,CCC,FCC and RoHS.

    7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.

    8. 3-years warranty is offered.


    N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.

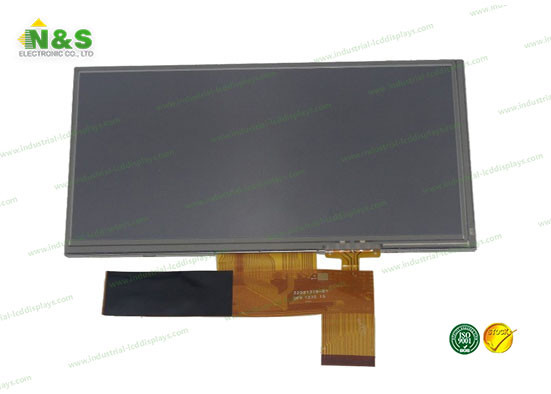

    Details Pictures for the ZJ070NA-03C Screen Display Panel:
