    E Ink 10.4 Inch TFT LCD Display Module , High Vibration Proof TFT LCD Display OD104SL4

    Ask Lasest Price
    Brand Name : E Ink
    Model Number : OD104SL4
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    E Ink 10.4 Inch TFT LCD Display Module , High Vibration Proof TFT LCD Display OD104SL4

    E Ink 10.4 Inch TFT LCD Display Module , High Vibration Proof TFT LCD Display OD104SL4

    E Ink OD104SL4 General Features:

    <

    Panel Brand :E Ink
    Panel Model :OD104SL4
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :10.4 inch
    Resolution :800(RGB)×600 , SVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :211.2×158.4 mm
    Outline :238.6×171 mm
    Surface :Antiglare, Hard coating
    Brightness :160 cd/m² (Typ.)
    Contrast Ratio :400:1 (Typ.)
    Display Colors :262K (6-bit)
    Response Time :15/20 (Typ.)(Tr/Td)
    Viewing Angle :45/45/15/40 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :1 pcs CCFL Without Driver
    Signal Interface :LVDS (1 ch, 6-bit) , 14 pins
    Input Voltage :3.3/5.0V (Typ.)(VDD)

    Delivery time is Approx:


    United States / United Kingdom / Australia 7-14 working days.


    Canada 7-25 working days.


    France / Spain / Germany may take 7-20 working days.


    Eastern Europe may take up to 16-30 working days.


    Italy / Brazil / South America may take up to 30-50 working days.


    Shipped by DHL Express (Need 3-6 working days to arrive)


    About Shipping & Delievery:


    We will test them strictly before shipping.


    We will ship it in 1-3 working days after your paying.


    We only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.


    E Ink OD104SL4 Backlight System:

    <

    Lamp Position :Edge light type
    Lamp Type :CCFL
    Lamp Amount :1 pcs
    Lamp Life Time :40K(Typ.) (Hours)
    Lamp Voltage :500±50V
    Lamp Current :3.0/5.0/6.0mA (Min./Typ./Max.)
    Lamp Operating Frequency :45KHz
    Lamp Startup Voltage :1000V (Min.)(Ta=0℃)
    Lamps Power Consumption :3.91W (Typ.)
    Interface Type :Connector

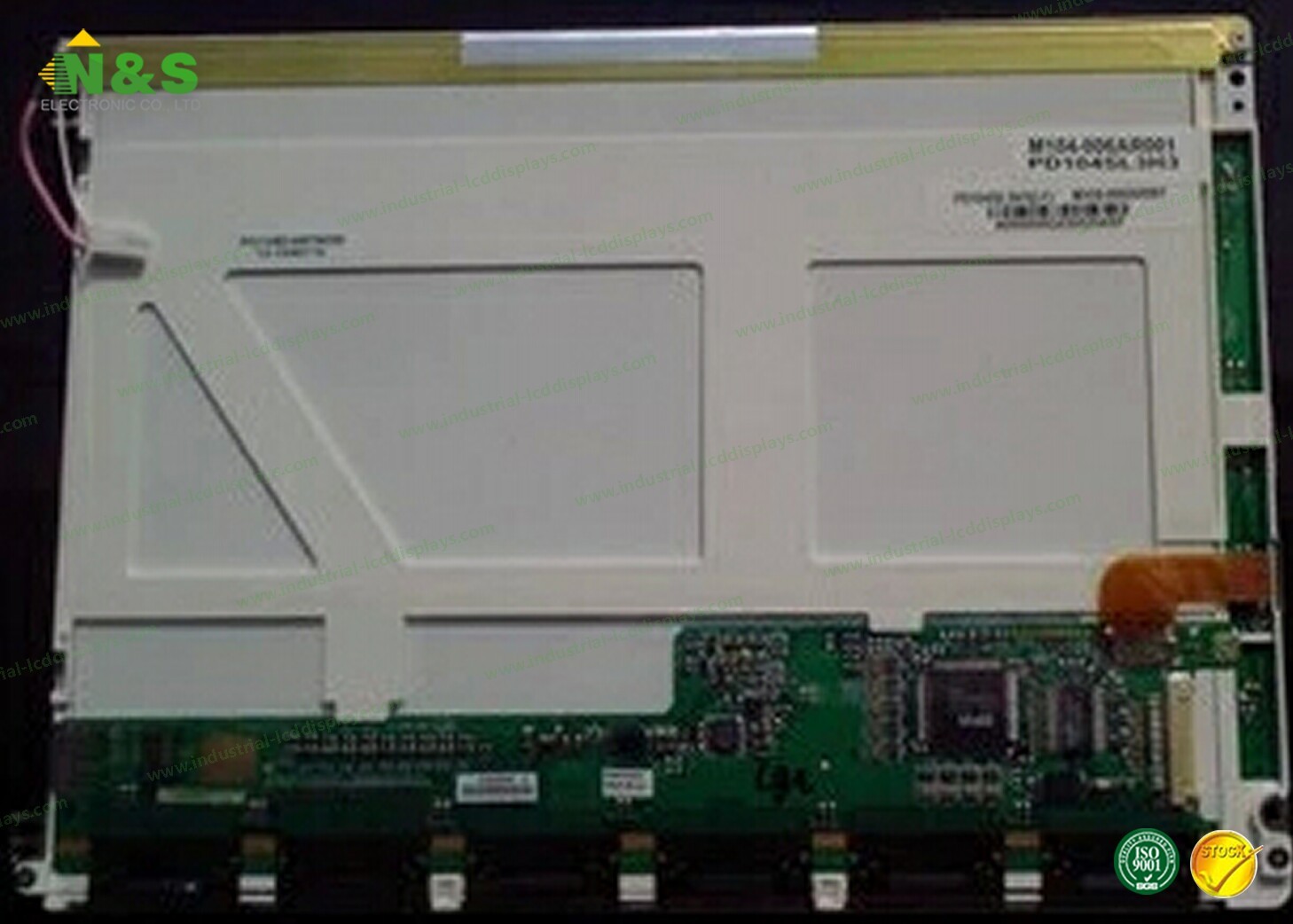

    Pictures of E Ink OD104SL4 LCD Display:


    E Ink 10.4 Inch TFT LCD Display Module , High Vibration Proof TFT LCD Display OD104SL4


    Tag: Industrial LCD Panel, LCD Display
