Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density

    Buy cheap Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density from wholesalers

    Buy cheap Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density from wholesalers
    • Buy cheap Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density from wholesalers
    • Buy cheap Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density from wholesalers
    • Buy cheap Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density from wholesalers

    Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density

    Ask Lasest Price
    Brand Name : PVI
    Model Number : ED060SC7
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Wesntern Union , MoneyGram
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 2-3 Working Days After Order Confirmation
    • Product Details
    • Company Profile

    Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density

    Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density


    Industrial Flat Panel Monitor Electrical and Display Specifications:


    Basic Info:


    <

    Panel Brand :PVI
    Panel Model :ED060SC7
    Panel Type :EPD , EPD
    Panel Size :6.0 inch
    Resolution :600×800 , SVGA
    Active Area :90.6×122.4 mm
    Outline :101.8×138.4 mm
    Surface :Antiglare, Hard coating
    Contrast Ratio :12:1 (Typ.)(Reflective)
    Display Colors :Grayscale (4-bit)
    Frequency :85Hz
    Signal Interface :Parallel Data (8-bit) , 34 pins
    Input Voltage :3.3V (Typ.)(VDD)

    Details Specifications for ED060SC7 Inch LCD Monitor:


    <

    Panel Model :ED060SC7
    Display Mode :Reflective
    Contrast Ratio :12:1 (Typ.) (Reflective)
    Display Color :Grayscale (4-bit)
    Reflectance Ratio :40% (Typ.)
    Sunlight Readable :Sunlight Readable
    Vertical Frequency :85Hz
    Reverse Scan :No
    Total Power Consumption :547/1131mW (Typ./Max.)
    Time Controller (T-CON) :Need external T-CON

    Our Service for you:


    As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:


    1. Provide excellent LCD screen replacements with competitive price.
    2. Safe, quick and efficient supply chain.
    3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
    4. Your problems will be replied within 24 hours.

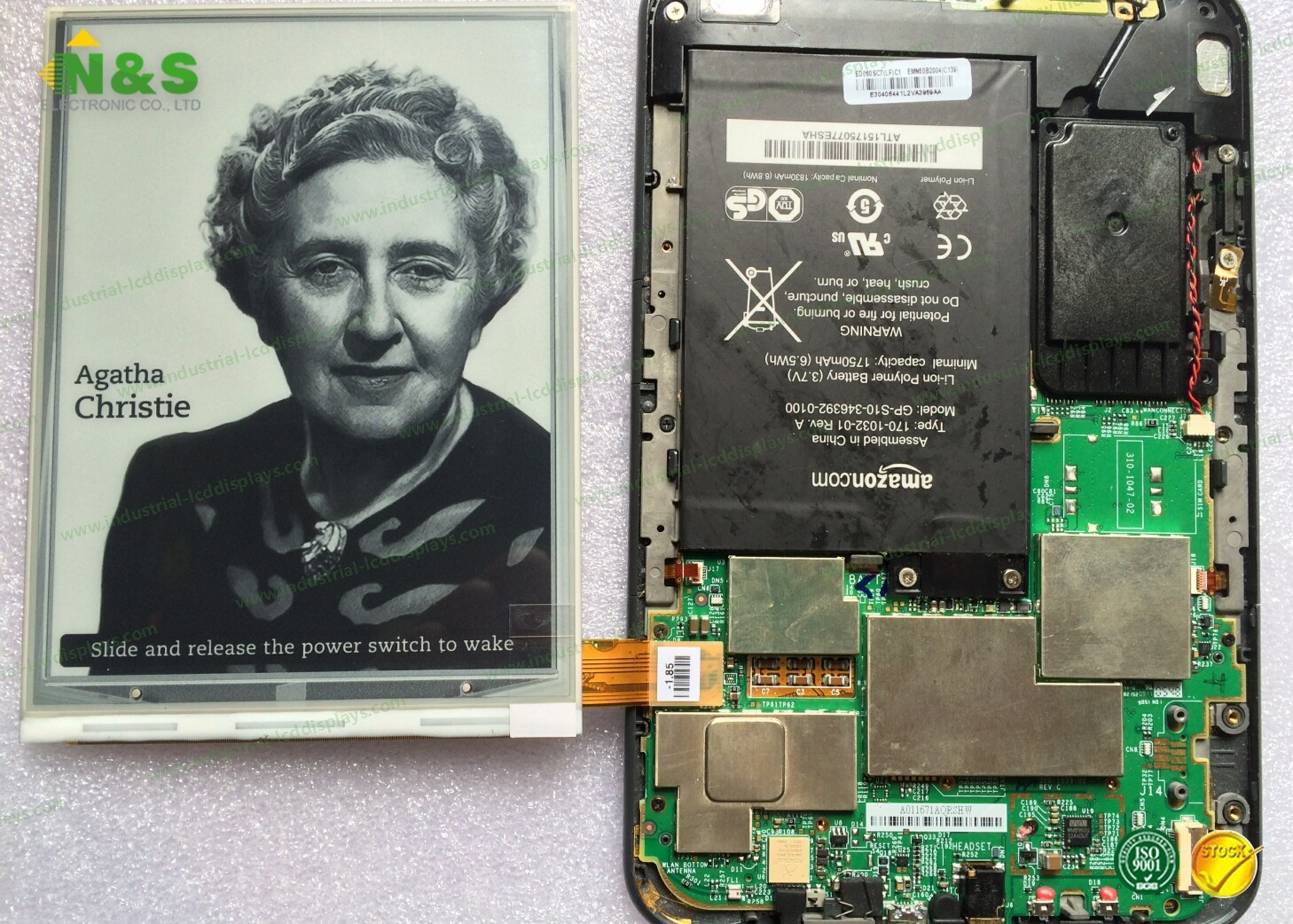

    Details Picture for ED060SC7 LCD Monitor:


    Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel DensityOpen Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel DensityOpen Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
