    Antiglare 3.5" Industrial LCD Displays Adjustable Brightness Controls TD035STED4

    Ask Lasest Price
    Brand Name : Toppoly
    Model Number : TD035STED4
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 Pcs Per Day
    Delivery Time : 2-3 Working Holiday
    • Product Details
    • Company Profile

    Antiglare 3.5" Industrial LCD Displays Adjustable Brightness Controls TD035STED4

    Antiglare 3.5" Industrial LCD Displays Adjustable Brightness Controls TD035STED4


    Toppoly TD035STED4 General Features:


    <

    Panel Brand :Toppoly
    Panel Model :TD035STED4
    Panel Type :LTPS TFT-LCD , Panel
    Panel Size :3.5 inch
    Resolution :240(RGB)×320 , QVGA
    Display Mode :TN, Normally White, Transflective
    Active Area :53.28×71.04 mm
    Outline :64.3×87.1×4.8 mm
    Surface :
    Brightness :115 cd/m² (Typ.)
    Contrast Ratio :100:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective)
    Display Colors :262K (6-bit) , CIE1931 36%
    Response Time :35 (Typ.)(Tr+Td)
    Viewing Angle :60/60/50/60 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :4S1P WLED Without Driver
    Signal Interface :Parallel RGB (1 ch, 6-bit) + SPI , 61 pins
    Input Voltage :2.8/5.0/10/-5.5V (Typ.)(VDD/AVDD/VGH/WEE)

    Toppoly TD035STED4 Electronics Feature


    Vertical Frequency : 60Hz
    Reverse Scan : Yes (180°)
    Total Power Consumption : 313mW (Typ.)
    Time Controller (T-CON) : Embedded T-CON


    We can do for you:


    As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

    1. AUO LCD Screen
    2. Samsung LCD Display
    3. LG LCD Screen replacements
    4. Sharp LCD panels & Chimei LCD Parts.
    5. Innolux LCD Modules & BOE LCD Screen.

    Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

    1. Provide excellent LCD screen replacements with competitive price.
    2. Safe, quick and efficient supply chain.
    3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
    4. Your problems will be replied within 24 hours.

    Keep pace with the times and mutual benefit is our philosophy. We expect being your purchasing assistant in the LCD Screen Panel Replacements area.

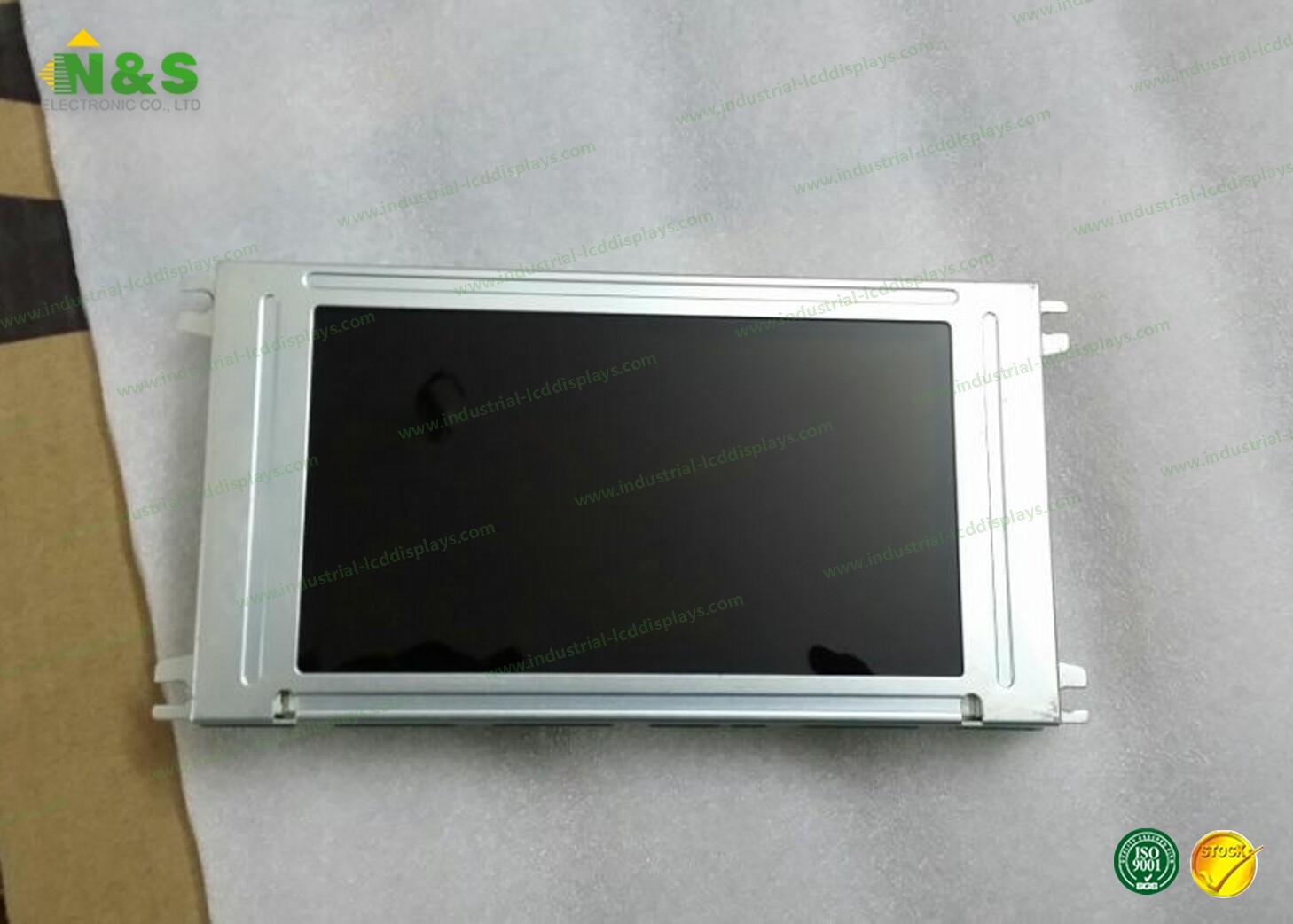

    Picture Show for TD035STED4 LCD Display Panels:


    Antiglare 3.5" Industrial LCD Displays Adjustable Brightness Controls TD035STED4
