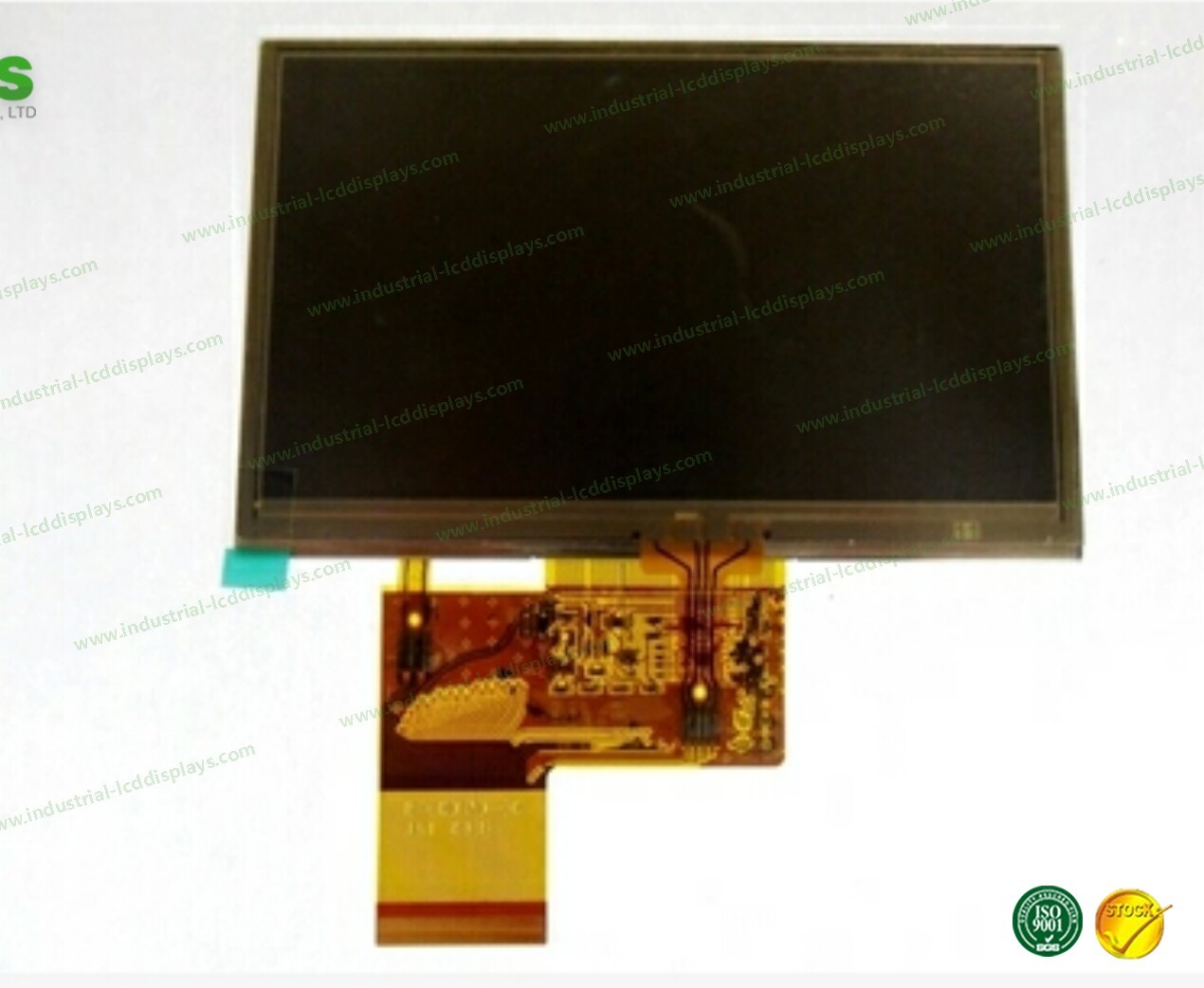

4.3 inch RGB vertical stripe lcd module AT043TN24 V.1 480×272
Innolux LCD Panel
Quick Details:
1 Panel Number: AT043TN24 V.1
2 Dot Resolution : 480(RGB)×272 (WQVGA)
3 Pixel Configuration : RGB Vertical Stripe
4 Pixel Density : 128 PPI
5 Aspect Ratio : 16:9 (H:V)
6 Form Factor : Flat Rectangle Display
INNOLUX AT043TN24 V.1 Optical Features
Panel Number: AT043TN24 V.1
TN, Normally White, Transmissive
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)
Specifications
Panel Brand : INNOLUX
Panel Model : AT043TN24 V.1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 4.3 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2 mm
Surface : Antiglare
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
We are professional distributor on LCD panels with our own
warehouse and stock. Our goal is to provide worldwide supply chain
solution based on integrity.Our headquarters located in Hong Kong
and branch office in Shenzhen, Singapore, Malaysia and Canada.
Why purchase AT043TN24 V.1 from N&S ELECTRONIC CO., LTD ?
Our headquarters located in Hong Kong and branch office in
Shenzhen, Singapore, Malaysia and Canada.
We are professional distributor on LCD panels with our own
warehouse and stock. Our goal is to provide worldwide supply chain
solution based on integrity.
What we do for AT043TN24 V.1:
As the leading LCD distributor in China, we are strong at EOL
panels and hard to find panels of famous Brands such as NEC, SHARP,
AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
Our products lines are widely used on medical apparatus, industrial
control facilities, portable electrical impedance measurement
apparatus, digital video camera display, vehicle equipment,
aerospace equipment. Our products mostly cover small sizes, like
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0",
5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most
of them are original factory sealed carton packing. Moreover, we
will do the brightness inspection of them by testing board.
Our Advantages for AT043TN24 V.1:
LCD panels are sourced directly from manufacturers, OEM/CM's and
worldwide business partners spanning five continents that include
40 countries, United States, Italy, Singapore, Korea, Taiwan,
Germany, Thailand, Malaysia, Japan, etc. There are more than 540
enterprises. With our strong sourcing team and sufficient stock in
our warehouse, and our professional Quality Control team and
professional testing instruments, we can offer reliable quality
panels at competitive price.
N&S will be your powerful partner on LCDs in China. Here we are
to quote your need.
