Normally White Industrial LCD Displays BOE HT150X02-100 15.0 Inch 1024×768

    Buy cheap Normally White Industrial LCD Displays BOE HT150X02-100 15.0 Inch 1024×768 from wholesalers

    Buy cheap Normally White Industrial LCD Displays BOE HT150X02-100 15.0 Inch 1024×768 from wholesalers
    • Buy cheap Normally White Industrial LCD Displays BOE HT150X02-100 15.0 Inch 1024×768 from wholesalers
    • Buy cheap Normally White Industrial LCD Displays BOE HT150X02-100 15.0 Inch 1024×768 from wholesalers

    Normally White Industrial LCD Displays BOE HT150X02-100 15.0 Inch 1024×768

    Ask Lasest Price
    Brand Name : BOE
    Model Number : HT150X02-100
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

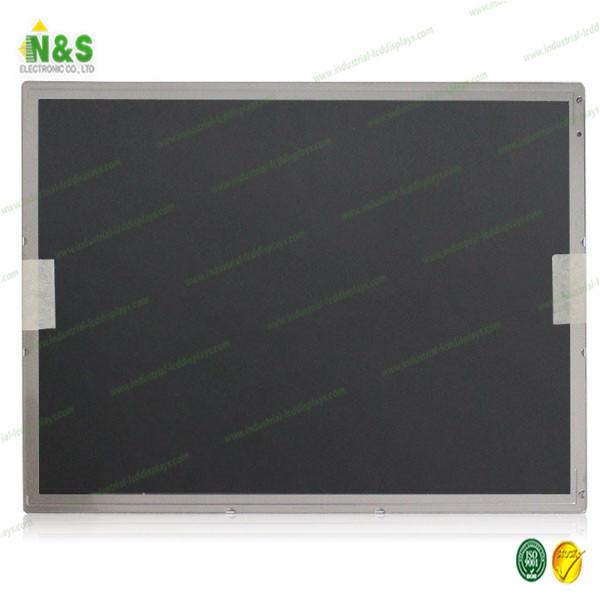

    Normally White Industrial LCD Displays BOE HT150X02-100 15.0 Inch 1024×768

    Normally White BOE HT150X02-100 LCD Displays 15.0 inch 1024×768 Active Area 304.128×228.096 mm


    HT150X02-100 Basic Information

    Panel ModelHT150X02-100
    Panel BrandBOE
    Descritiona-Si TFT-LCD ,15.0 inch, 1024×768
    Panel Typea-Si TFT-LCD
    Operating Temperature0 ~ 50 °C
    Storage Temperature-20 ~ 60 °C

    HT150X02-100 Mechanical Features

    Dot Resolution1024(RGB)×768 (XGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density85 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.099×0.297 mm (H×V)
    Pixel Pitch0.297×0.297 mm (H×V)
    Weight1.20Kgs (Max.)
    SurfaceAntiglare (Haze 25%), Hard coating (3H)
    Active Area304.128×228.096 mm (H×V)
    Bezel Area307.4×231.3 mm (H×V)
    Outline Dimension326.5×253.5 mm (H×V)
    Outline Depth11.4/11.9 (Typ./Max.) mm
    Holes & BracketsSide mounting holes (4-M3) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Below are our other LCD panels stock for your easy reference:


    Panel ModelBrandSizeResolution
    HV320WHB-N80BOE31.5"1366×768
    BS053HDG-N50-6200BOE5.3"720×1280
    HV550QUB-B10BOE55"3840×2160
    BF039WVQ-100BOE3.9"480×800
    HV480FH2-600BOE48"1920×1080
    HV320WHB-N10BOE31.5"1366×768
    MT207FHB-N20BOE20.7"1920×1080
    MT207FHB-N10BOE20.7"1920×1080
    HV320WHB-N06BOE31.5"1366×768
    BP070WS7-500BOE7.0"1024×600
    TV070WVE-N10BOE7.0"800×480

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    FAQ

    Q1: How do we place an order?

    A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

    Q2: How do we make the payment?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: What's the delivery time?

    A3: The delivery time is normally 1-3 working days after payment.

    Q4: How would the goods be shipped?

    A4: We ship via DHL, UPS, TNT and others.


    Packaging & Delivery

    Packaging Details:

    Antistatic bag + Bubble bag + Foam box + Carton box

    Delivery Detail:

    1-3 working days after payment confirmed
