    60Hz Industrial LCD Displays BOE HT215F01-100 21.5 Inch A-Si TFT-LCD 1920×1080

    Ask Lasest Price
    Brand Name : BOE
    Model Number : HT215F01-100
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    60Hz Industrial LCD Displays BOE HT215F01-100 21.5 Inch A-Si TFT-LCD 1920×1080

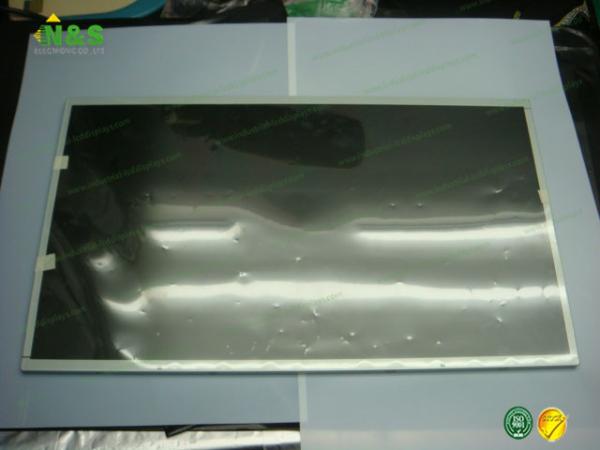

    Normally White BOE HT215F01-100 21.5 inch a-Si TFT-LCD 1920×1080 Outline 495.6×292.2×10.7 mm


    HT215F01-100 Basic Information

    Panel ModelHT215F01-100
    Panel BrandBOE
    Descritiona-Si TFT-LCD ,21.5 inch, 1920×1080
    Panel Typea-Si TFT-LCD
    Operating Temperature0 ~ 50 °C
    Storage Temperature-20 ~ 60 °C
    RemarksNormal version: 4850, 4D30; For Samsung version: 4851, 4D31; For Dell version: 4852; F-grade version: 4FFF.

    HT215F01-100 Mechanical Features

    Dot Resolution1920(RGB)×1080 (FHD)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density102 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.08275×0.24825 mm (H×V)
    Pixel Pitch0.24825×0.24825 mm (H×V)
    Weight1.79Kgs (Typ.)
    SurfaceAntiglare (Haze 25%), Hard coating (3H)
    Active Area476.64×268.11 mm (H×V)
    Bezel Area479.8×271.3 mm (H×V)
    Outline Dimension495.6×292.2 mm (H×V)
    Outline Depth7.7/10.7 (Typ./Max.) mm
    Holes & BracketsSide mounting holes (4-M3) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Competitive Advantage:
    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!

    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    BP070WS1-600BOE7.0"1024×600
    HV480WU2-302BOE48"1920×1080
    HV480WU2-301BOE48"1920×1080
    1.22 240RGB204BOE1.2"240×204
    BT040WVG-N60BOE4.0"480×800
    BS050HDG-N40-6C00BOE5.0"720×1280
    TT070WSB-NW1BOE7.0"1024×600
    TT070WSB-NW0BOE7.0"1024×600
    TT101WSB-NW0BOE10.1"1024×600
    TT070WSQ-N10BOE7.0"1024×600

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
