New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M² from wholesalers

    Buy cheap New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M² from wholesalers
    • Buy cheap New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M² from wholesalers
    • Buy cheap New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M² from wholesalers
    • Buy cheap New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M² from wholesalers

    New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²

    Ask Lasest Price
    Brand Name : LQ035Q7DH07
    Model Number : SHARP
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²

    New and original LQ035Q7DH07 SHARP a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application

    LQ035Q7DH07 Basic Information

    Panel ModelLQ035Q7DH07
    Panel BrandSHARP
    Descritiona-Si TFT-LCD ,3.5 inch, 240×320
    Panel Typea-Si TFT-LCD
    Operating Temperature-10 ~ 70 °C
    Storage Temperature-25 ~ 70 °C
    RemarksAD-TFT (Advanced TFT), 2 in 1 FPC, Not for New Design

    Packaging & Shipping:

    Delivery Information:
    Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
    Shipping Method:
    By Express: FedEx, DHL, EMS, TNT, UPS,
    By Logistics: By air
    Shipping Time:
    From Monday to Saturday 8:00am-17:30pm
    Shipping Address:
    If by T/T, shipping address as communicate.

    LQ035Q7DH07 Mechanical Features

    Dot Resolution240(RGB)×320 (QVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density113 PPI
    Aspect Ratio3:4 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0745×0.2235 mm (H×V)
    Pixel Pitch0.2235×0.2235 mm (H×V)
    Weight34g (Typ.)
    SurfaceHard coating (3H)
    Active Area53.64×71.52 mm (H×V)
    Bezel Area57.4×75.2 mm (H×V)
    Outline Dimension65×86.2 mm (H×V)
    Outline Depth3.2±0.2 mm
    Landscape or PortraitPortrait type
    Touch PanelWithout

    1. Samples charge: According to the model. Pls contact us to get details.

    2. Samples time:1 day forstock models

    Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

    Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.

    LQ035Q7DH07 Optical Features

    Display ModeTN, Normally White, Transflective
    Brightness250 cd/m² (Typ.)
    Contrast Ratio3:1 (Typ.) (Reflective)
    Display Color262K (6-bit)
    Response Time30/50 (Typ.)(Tr/Td)
    Viewing Angle40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
    Viewing Direction6 o'clock
    White color ChromaticityWx:0.300; Wy:0.330
    Reflectance Ratio2.5/4.0% (Min./Typ.)
    Sunlight ReadableY

    Why do you choose us?

    • Quick response to clients' enquiries within 24hrs.

    • More than 6-year experience in LCD screen field and professional team communication team.

    •Value quality and long-term cooperation to reach win-win relationship.

    LQ035Q7DH07 Electronics Feature

    Reverse ScanYes (U/D, L/R)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LM10V332RSHARP10.4"640×480
    LM80C20PSHARP11.3"800×600
    LM8V302RSHARP7.7"640×480
    LM5Q321SHARP5.0"320×240
    LM15X80SHARP15.0"1024×768
    LM14X82SHARP13.8"1024×768
    LM13X31SHARP13.0"1024×768
    LM12X35SHARP12.1"1024×768

    We also have other industrial LCD panels, pls contact to us for the further information

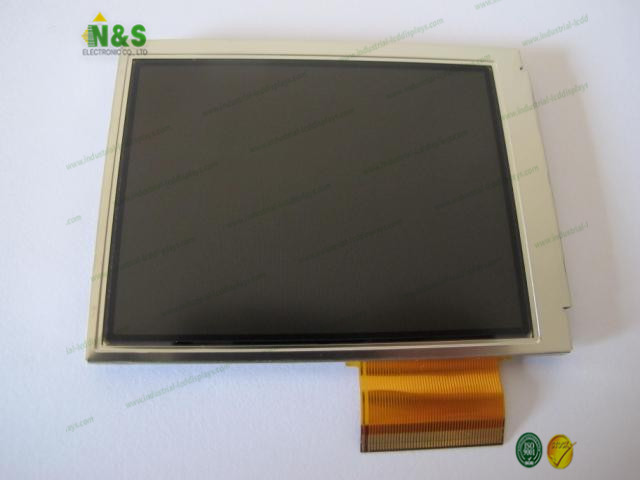

    LQ035Q7DH07 pictures
