    Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ035Q7DH06
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface

    LQ035Q7DH06 SHARP a-Si TFT-LCD ,3.5 inch, 240×320 for 60Hz

    LQ035Q7DH06 Basic Information

    Panel ModelLQ035Q7DH06
    Panel BrandSHARP
    Descritiona-Si TFT-LCD ,3.5 inch, 240×320
    Panel Typea-Si TFT-LCD
    Operating Temperature-10 ~ 70 °C
    Storage Temperature-25 ~ 70 °C
    RemarksAD-TFT (Advanced TFT), 2 in 1 FPC

    Packaging & Delivery

    · Delivery Lead Time :2~3 weeks

    · Minimum Order :1 pcs LCD Panel

    · Supply Ability :100 PCS / Per Day

    LQ035Q7DH06 Mechanical Features

    Dot Resolution240(RGB)×320 (QVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density113 PPI
    Aspect Ratio3:4 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0745×0.2235 mm (H×V)
    Pixel Pitch0.2235×0.2235 mm (H×V)
    Weight45g (Typ.)
    SurfaceHard coating (2H)
    Active Area53.64×71.52 mm (H×V)
    Bezel Area57.4×75.2 mm (H×V)
    Outline Dimension65×86.2 mm (H×V)
    Outline Depth4.0±0.2 mm
    Landscape or PortraitPortrait type
    Touch PanelEmbeded (4-wire Resistive)

    Shipment:

    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.

    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

    (4) Delivery time is approximate:

    ------Via DHL, Fedex, UPS: 3-7working days

    ------Via EMS:7-15 working days

    ------Via Direct Express Line:1-3 working days.

    LQ035Q7DH06 Optical Features

    Display ModeTN, Normally White, Transflective
    Brightness225 cd/m² (Typ.)
    Contrast Ratio3:1 (Typ.) (Reflective)
    Display Color262K (6-bit)
    Response Time30/50 (Typ.)(Tr/Td)
    Viewing Angle40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
    Viewing Direction6 o'clock
    White color ChromaticityWx:0.300; Wy:0.330
    White Variation1.25/1.43 (Typ./Max.)(9 points)
    Reflectance Ratio2.5/4.0% (Min./Typ.)
    Sunlight ReadableY

    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2.Your inquiry related to our products or prices will be replied in 24 hours.

    3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

    LQ035Q7DH06 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanYes (U/D, L/R)

    Below are our other LCD panels stock for your easy reference

    Panel ModelBrandSizeResolution
    LM8M64RSHARP8.1"640×240
    LM32K102SHARP4.7"320×240
    LM12S469SHARP12.1"800×600
    LM64P60SHARP10.4"640×480
    LM64C35SHARP10.4"640×480
    LM64C08PSHARP9.4"640×480
    LM64C031SHARP9.4"640×480
    LM32K07SHARP5.7"320×240

    We also have other industrial LCD panels, pls contact to us for the further information

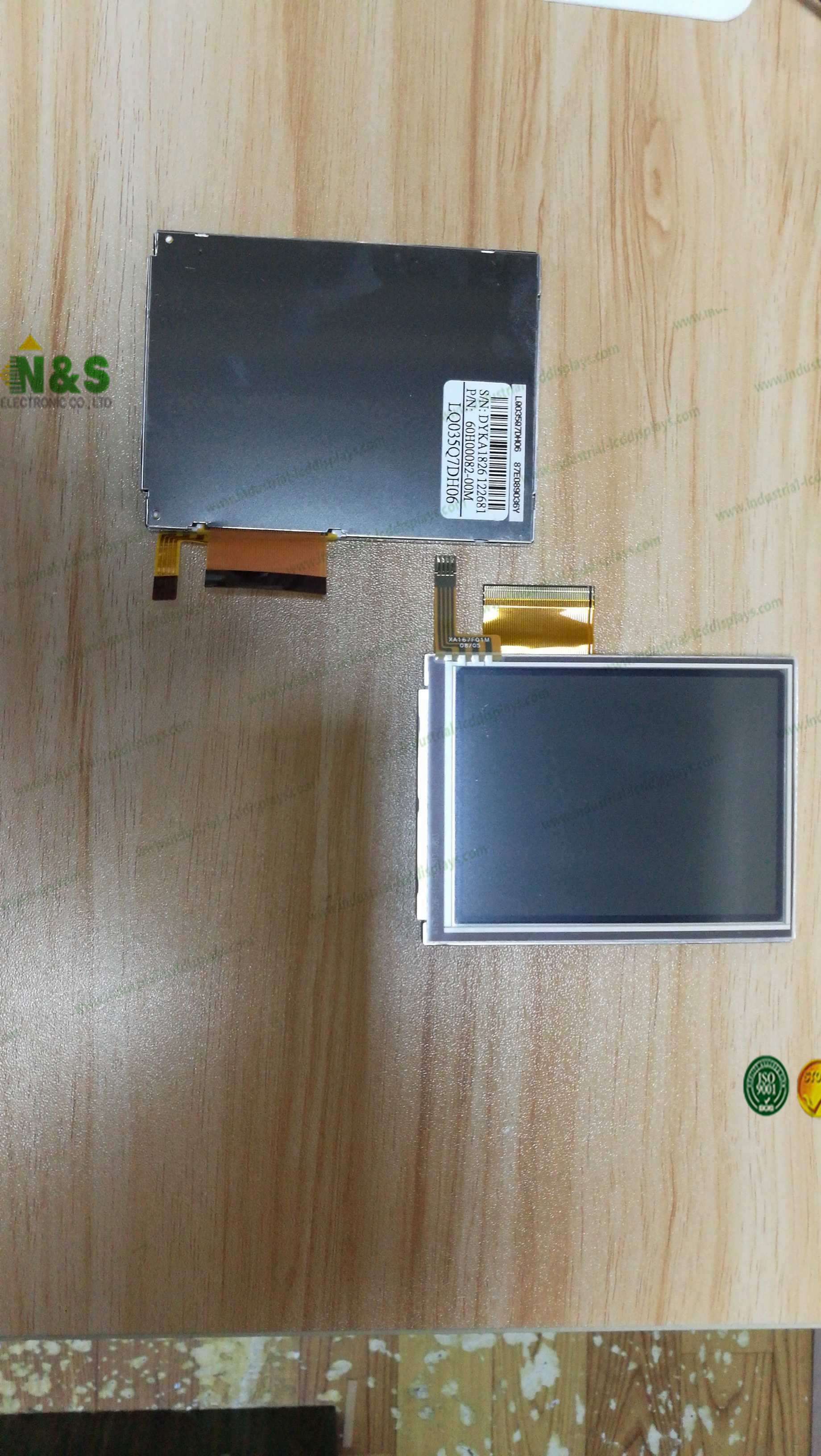

    LQ035Q7DH06 pictures


    Quality Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface for sale
