    TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM035HBHT6
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density

    TM035HBHT6 TIANMA a-Si TFT-LCD ,3.5 inch, 240×320 for 60Hz

    TM035HBHT6 Basic Information

    Panel ModelTM035HBHT6
    Panel BrandTIANMA
    Descritiona-Si TFT-LCD ,3.5 inch, 240×320
    Panel Typea-Si TFT-LCD
    Operating Temperature-20 ~ 60 °C
    Storage Temperature-30 ~ 70 °C
    RemarksR-EVT; 3 in 1 FPC; Left side FPC (17.00mm length)

    Why do you choose us?
    • Quick response to clients' enquiries within 24hrs.
    • More than 6-year experience in LCD screen field and professional team communication team.
    •Value quality and long-term cooperation to reach win-win relationship.

    TM035HBHT6 Mechanical Features

    Dot Resolution240(RGB)×320 (QVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density113 PPI
    Aspect Ratio3:4 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0745×0.2235 mm (H×V)
    Pixel Pitch0.2235×0.2235 mm (H×V)
    Weight44.38g
    SurfaceHard coating
    Active Area53.64×71.52 mm (H×V)
    Outline Dimension64×85 mm (H×V)
    Outline Depth4.13±0.3 mm
    Landscape or PortraitPortrait type
    Touch PanelEmbeded (4-wire Resistive)

    Feedback:

    (1) Your early confirmation will be highly appreciated after receiving the item.

    (2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

    M035HBHT6 Optical Features

    Display ModeECB, Normally White, Transflective
    Brightness80 cd/m² (Typ.)
    Contrast Ratio2.5:1 (Typ.) (Reflective)
    Display Color262K (6-bit)
    Color Gamut37% NTSC (CIE1931)
    Response Time35 (Typ.)(Tr+Td)
    Viewing Angle40/45/55/40 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction6 o'clock
    White color ChromaticityWx:0.301; Wy:0.321
    Reflectance Ratio5.5% (Typ.)
    Sunlight ReadableY

    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    TM035HBHT6 Electronics Feature

    Reverse ScanNo
    Driver ICBuilt-in ILI9341
    Time Controller (T-CON)Embedded T-CON

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM060SDH01Tianma6.0"800×600
    TM128128A4KFWGWC69-1Tianma1.5"128×128
    TM12864LCAWGTianma2.2"128×64
    TM9616AGHWGNATianma0.84"96×16
    TM128160LKFWG5-1Tianma1.8"128×160
    TM320240EGFWVSWDTianma5.7"320×240
    TM320240ECCWVSWDTianma5.7"320×240
    TM240128ABCWVBYDTianma4.8"240×128

    We also have other industrial LCD panels, pls contact to us for the further information

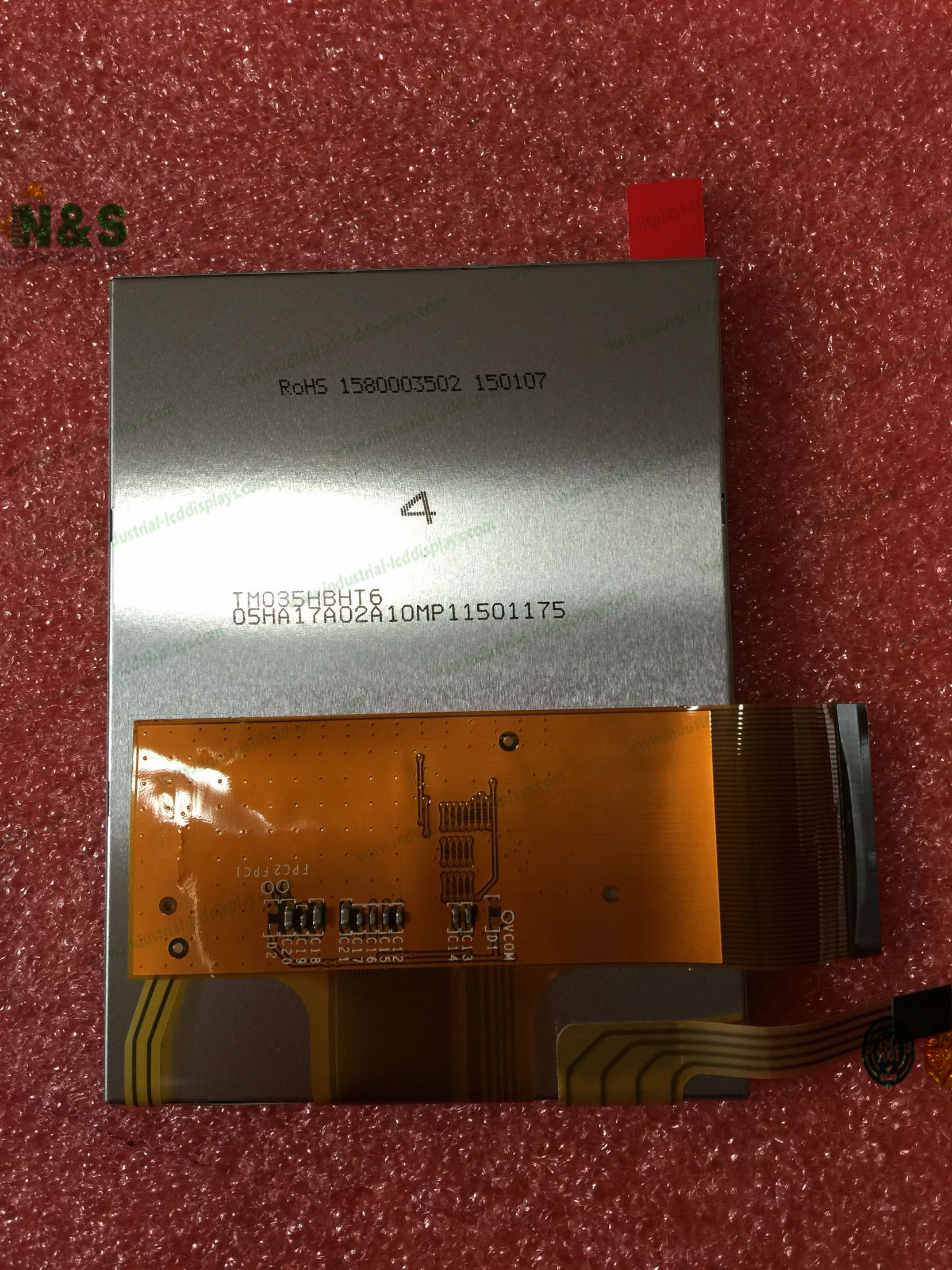

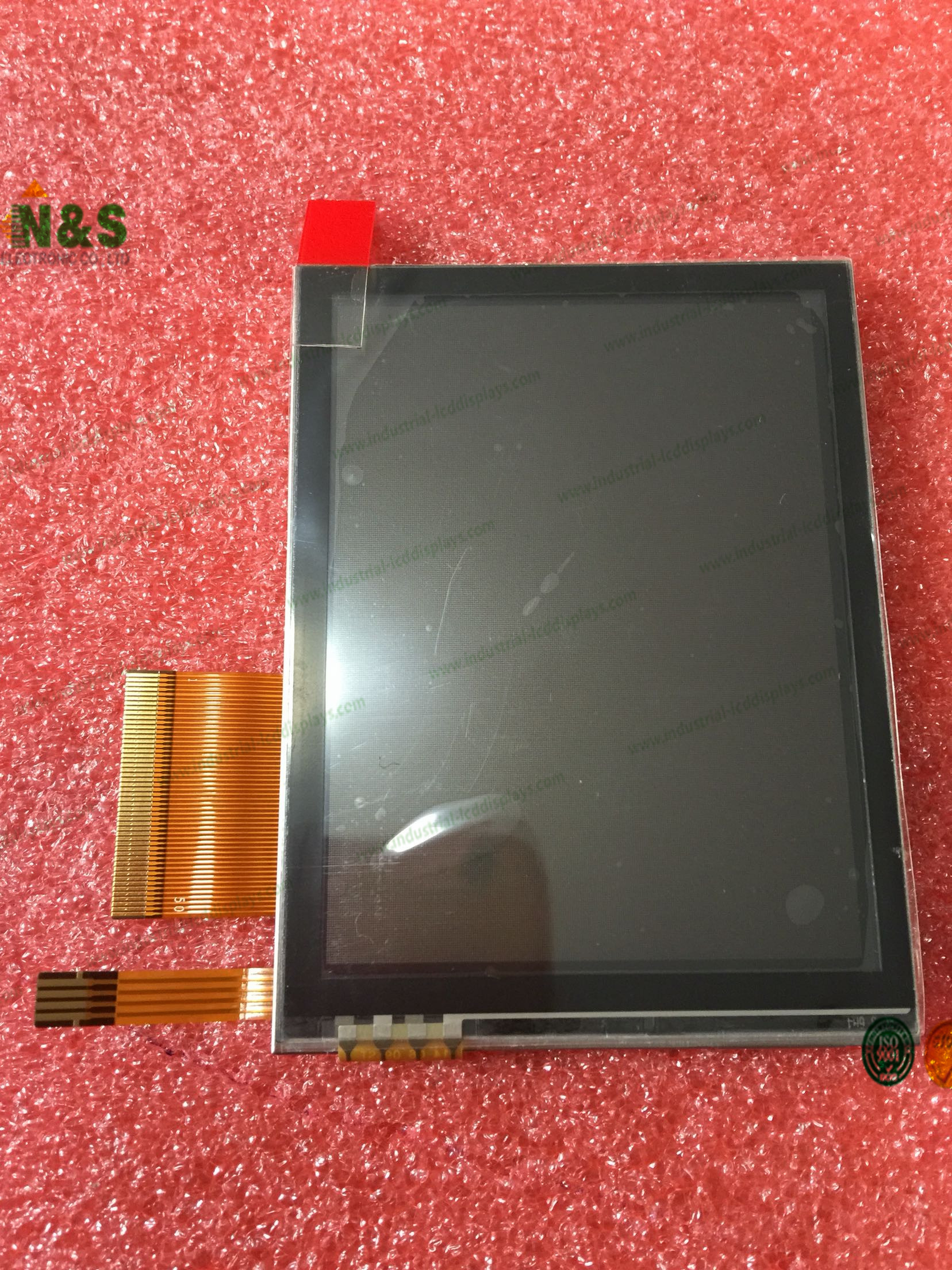

    TM035HBHT6 pictures
