    3.5 Inch Sharp Replacement LCD Panel LS035Y8DX04A CG- Silicon New / Original Condition

    New and original LS035Y8DX04A SHARP CG-Silicon ,3.5 inch, 480×800 for Medical Imaging

    LS035Y8DX04A Basic Information

    Panel ModelLS035Y8DX04A
    Panel BrandSHARP
    DescritionCG-Silicon ,3.5 inch, 480×800
    Panel TypeCG-Silicon
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-30 ~ 80 °C
    RemarksLeft side 2 in 1 FPC, with back cover tape

    By Logistics: By air
    Shipping Time:
    From Monday to Saturday 8:00am-17:30pm
    Shipping Address:
    If by T/T, shipping address as communicate.

    LS035Y8DX04A Mechanical Features

    Dot Resolution480(RGB)×800 (WVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density268 PPI
    Aspect Ratio3:5 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0315×0.0945 mm (H×V)
    Pixel Pitch0.0945×0.0945 mm (H×V)
    Weight14.9g (Typ.)
    Active Area45.36×75.6 mm (H×V)
    Bezel Area46.36×76.6 mm (H×V)
    Outline Dimension51.16×87.47 mm (H×V)
    Outline Depth1.74/3.04 (Typ./Max.) mm
    Landscape or PortraitPortrait type
    Touch PanelWithout

    Our Services

    1. Quick and accurate reply with best service attidue to our business

    2. Pofessional advise

    3. Quick PI confirmation

    4. Close production follow up and production process feedback

    5. Safe package

    6. Get feekback from your side when items arrived,

    7. 24 months warranty for items

    LS035Y8DX04A Optical Features

    Display ModeASV, Normally Black, Transflective
    Brightness400 cd/m² (Typ.)
    Contrast Ratio10:1 (Typ.) (Reflective)
    Display Color16.7M (8-bit)
    Color Gamut50% NTSC (CIE1931)
    Response Time11/24 (Typ.)(Tr/Td)
    Viewing Angle80/80/80/80 (Typ.)(CR≥5) (L/R/U/D)
    Viewing DirectionSymmetry
    White color ChromaticityWx:0.290; Wy:0.310
    White Variation1.25 (Max.)(9 points)
    Reflectance Ratio1.5% (Typ.)
    Sunlight ReadableY

    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2.Your inquiry related to our products or prices will be replied in 24 hours.

    3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

    LS035Y8DX04A Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanNo
    Driver ICBuilt-in R63302

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LM64P101SHARP7.2"640×480
    LK315T3HB872SHARP31.5"1366×768
    LK315T3HB871SHARP31.5"1366×768
    JE600D3HE67SHARP60"1920×1080
    LK600D3HA14SHARP60"1920×1080
    LK600D3HA6SSHARP60"1920×1080
    LQ0DZ1C0080SHARP60"1920×1080
    LQ0DZ1C0081SHARP60"1920×1080

    We also have other industrial LCD panels, pls contact to us for the further information

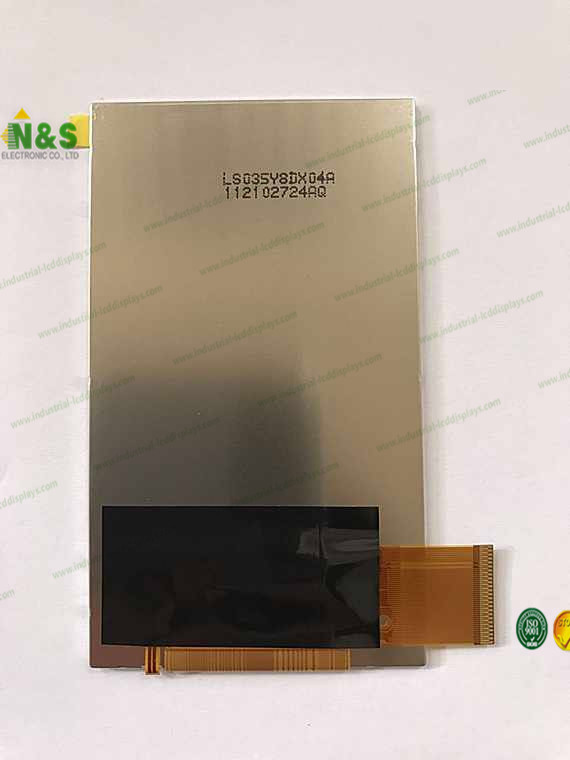

    LS035Y8DX04A pictures

    Quality 3.5 Inch Sharp Replacement LCD Panel LS035Y8DX04A CG- Silicon New / Original Condition for sale
