    3.5 Inch KOE Industrial Application Tft LCD Display TX09D70VM1CCA HITACHI

    Ask Lasest Price
    Brand Name : HITACHI
    Model Number : TX09D70VM1CCA
    Certification : ISO9001
    Delivery Time : 12weeks
    • Product Details
    • Company Profile

    3.5 Inch KOE Industrial Application Tft LCD Display TX09D70VM1CCA HITACHI

    TX09D70VM1CCA HITACHI a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application


    TX09D70VM1CCA Basic Information

    Panel ModelTX09D70VM1CCA
    Panel BrandHITACHI
    Descritiona-Si TFT-LCD ,3.5 inch, 240×320
    Panel Typea-Si TFT-LCD
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-30 ~ 80 °C
    Vibration Resistance2.0G (19.6 m/s²)
    Remarks3 in 1 Connector

    Packaging & Delivery

    · Delivery Lead Time :2~3 weeks

    · Minimum Order :1 pcs LCD Panel

    · Supply Ability :100 PCS / Per Day

    TX09D70VM1CCA Mechanical Features

    Dot Resolution240(RGB)×320 (QVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density113 PPI
    Aspect Ratio3:4 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0745×0.2235 mm (H×V)
    Pixel Pitch0.2235×0.2235 mm (H×V)
    Weight48g (Typ.)
    SurfaceAntiglare, Hard coating (3H)
    Active Area53.64×71.52 mm (H×V)
    Bezel Area57.64×75.52 mm (H×V)
    Outline Dimension64×86 mm (H×V)
    Outline Depth8.05±0.3 mm
    Landscape or PortraitPortrait type
    Touch PanelEmbeded (4-wire Resistive)

    Our Services

    1. Quick and accurate reply with best service attidue to our business

    2. Pofessional advise

    3. Quick PI confirmation

    4. Close production follow up and production process feedback

    5. Safe package

    6. Get feekback from your side when items arrived,

    7. 24 months warranty for items

    TX09D70VM1CCA Optical Features

    Display ModeTN, Normally White, TMR
    Brightness320 cd/m² (Typ.)
    Contrast Ratio300 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Response Time30 (Typ.)(Tr+Td)
    Viewing Angle70/70/80/60 (Typ.)(CR≥5) (L/R/U/D)
    Viewing Direction12 o'clock
    White color ChromaticityWx:0.300; Wy:0.320
    White Variation1.43 (Max.)(9 points)
    Sunlight ReadableY

    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2.Your inquiry related to our products or prices will be replied in 24 hours.

    3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

    TX09D70VM1CCA Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanNo
    Total Power Consumption0.66W (Typ.)
    Time Controller (T-CON)Embedded T-CON

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    SP14Q002-C1KOE5.7"320×240
    SP14Q002-B1KOE5.7"320×240
    SP14Q002-A1KOE5.7"320×240
    SP14Q002KOE5.7"320×240
    SP14Q001KOE5.7"320×240
    SX14Q004-ZZAKOE5.7"320×240
    SX14Q004KOE5.7"320×240
    SX16H005KOE6.2"640×240

    We also have other industrial LCD panels, pls contact to us for the further information

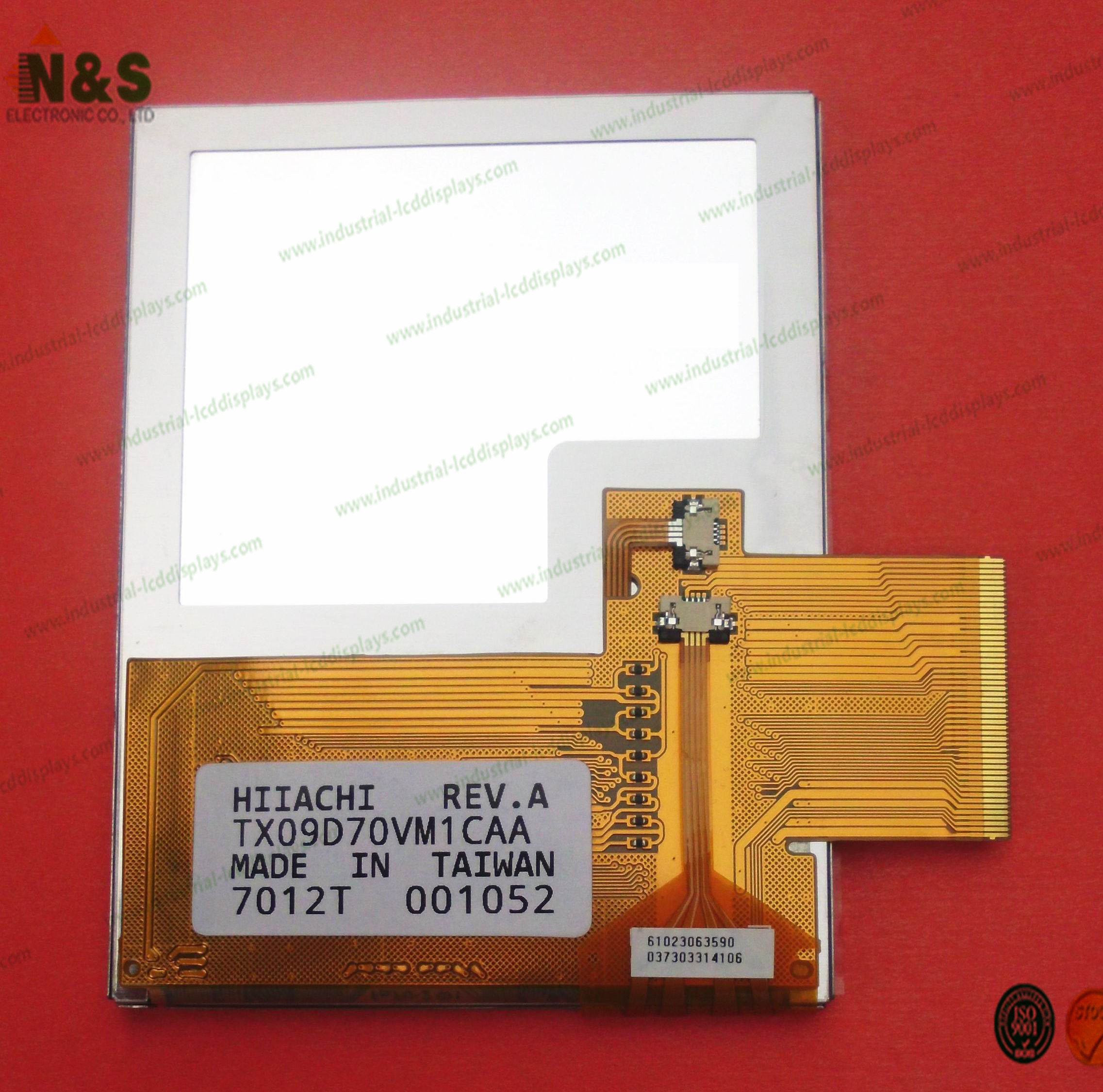

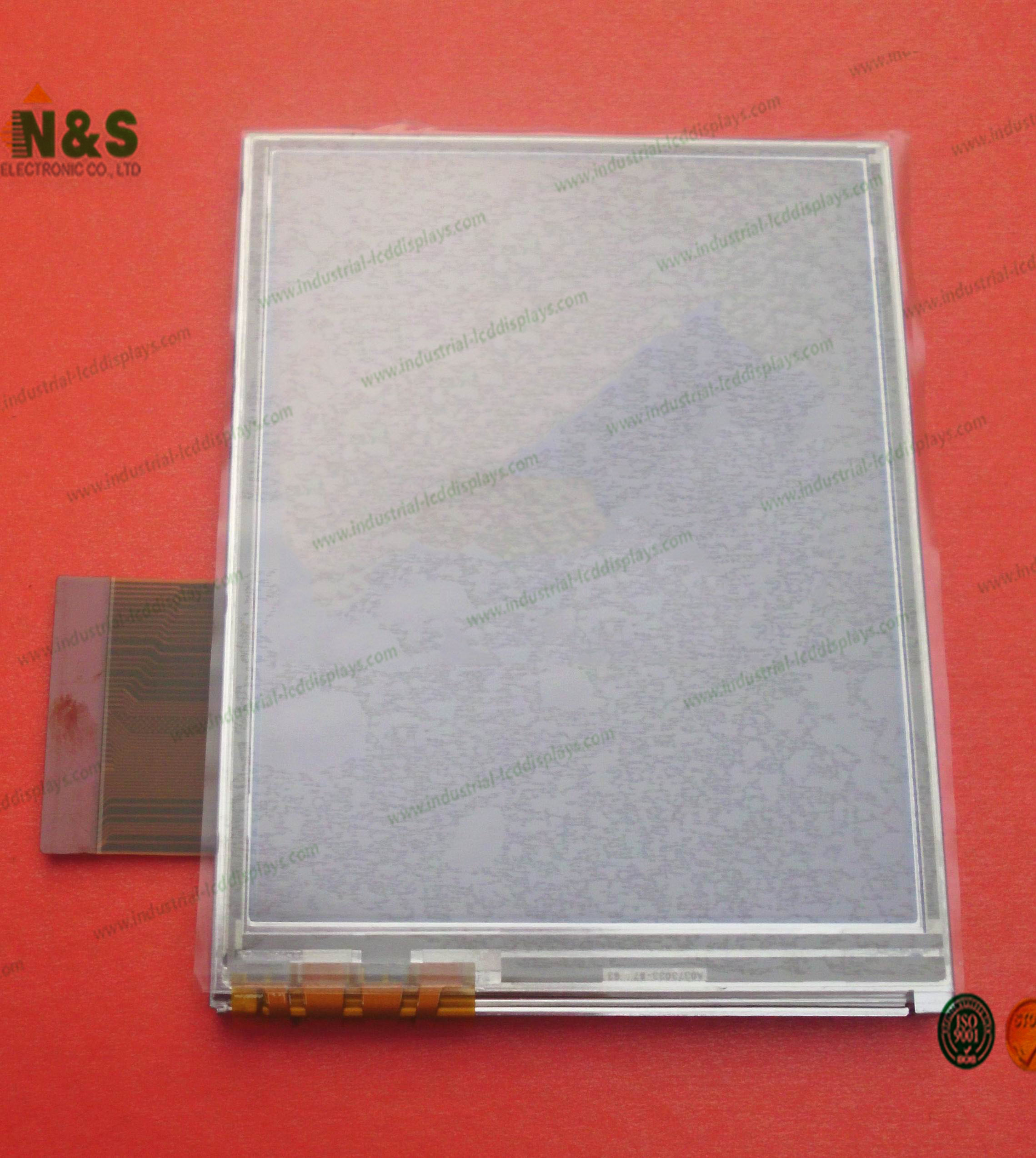

    TX09D70VM1CCA pictures
