Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel from wholesalers

    Buy cheap Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel from wholesalers
    • Buy cheap Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel from wholesalers
    • Buy cheap Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel from wholesalers

    Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ055W1GC01
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel

    LQ055W1GC01 SHARP a-Si TFT-LCD ,5.5 inch, 1024×600 for Industrial Application

    LQ055W1GC01 Basic Information

    Panel ModelLQ055W1GC01
    Panel BrandSHARP
    Descritiona-Si TFT-LCD ,5.5 inch, 1024×600
    Panel Typea-Si TFT-LCD
    Operating Temperature0 ~ 60 °C
    Storage Temperature-20 ~ 70 °C

    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.

    LQ055W1GC01 Mechanical Features

    Dot Resolution1024(RGB)×600 (WSVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density217 PPI
    Aspect Ratio17:10 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.039×0.117 mm (H×V)
    Pixel Pitch0.117×0.117 mm (H×V)
    Weight32/36g (Typ./Max.)
    SurfaceClear, Hard coating (2H)
    Active Area119.808×70.2 mm (H×V)
    Outline Dimension130.2×81.15 mm (H×V)
    Outline Depth1.95/2.15 (Typ./Max.) mm
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Shipment:

    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.

    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

    (4) Delivery time is approximate:

    ------Via DHL, Fedex, UPS: 3-7working days

    ------Via EMS:7-15 working days

    ------Via Direct Express Line:1-3 working days.

    LQ055W1GC01 Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness200 cd/m² (Typ.)
    Contrast Ratio300 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Response Time25 (Typ.)(Tr+Td)
    Viewing Angle60/50/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction9 o'clock
    White color ChromaticityWx:0.313; Wy:0.329
    White Variation1.10/1.30 (Typ./Max.)(5 points)
    Sunlight ReadableN

    The reasons you choose us

    1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h

    ard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

    LQ055W1GC01 Electronics Feature

    Vertical Frequency60Hz

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LM64C21PSHARP8.0"640×480
    LM8V33SHARP7.7"640×480
    LM8V311SHARP7.7"640×480
    LM8V31SHARP7.7"640×480
    LM8V302SHARP7.7"640×480
    LM8V301SHARP7.7"640×480
    LM8V30SHARP7.7"640×480
    LM64P89LSHARP10.4"640×480

    We also have other industrial LCD panels, pls contact to us for the further information

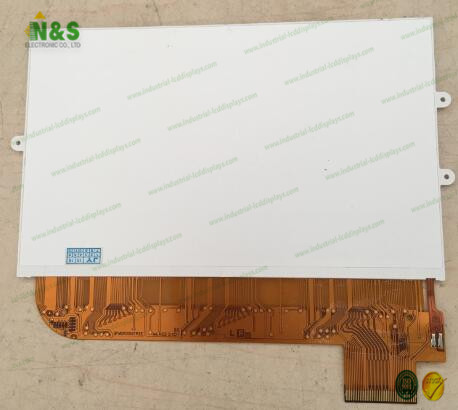

    LQ055W1GC01 pictures

    Quality Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel for sale
