    6.5 Inch 400×240 Sharp Lcd Display Panels , Sharp Replacement Lcd Panel 400×240

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ065T9BR51
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    6.5 Inch 400×240 Sharp Lcd Display Panels , Sharp Replacement Lcd Panel 400×240

    LQ065T9BR51 SHARP a-Si TFT-LCD ,6.5 inch, 400×240 for Medical Imaging

    LQ065T9BR51 Basic Information

    Panel ModelLQ065T9BR51
    Panel BrandSHARP
    Descritiona-Si TFT-LCD ,6.5 inch, 400×240
    Panel Typea-Si TFT-LCD
    Operating Temperature-30 ~ 85 °C
    Storage Temperature-30 ~ 85 °C
    Vibration Resistance2.9G (28.4 m/s²)
    RemarksNTSC(M) / PAL(B·G), Self heating backlight


    Shipment for the LCD Display Panels:
    1. Safe & Professional package for our LCD panels.
    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    LQ065T9BR51 Mechanical Features

    Dot Resolution400(RGB)×240 (WQVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density72 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.1195×0.3305 mm (H×V)
    Pixel Pitch0.3585×0.3305 mm (H×V)
    Weight190±10g
    SurfaceAntiglare
    Active Area143.4×79.326 mm (H×V)
    Outline Dimension155×89.2 mm (H×V)
    Outline Depth12.5 (Typ.) mm
    Landscape or PortraitLandscape type
    Touch PanelWithout


    Our service
    1. Agent Brand:
    * Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
    2. Quality to be guaranteed:
    * All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
    * Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
    3Quickly delivery:
    * We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
    4long-term partner:
    * Products are sold to more than 20 countries.
    5Super After-Sale service:
    * One year warranty .
    6. The best TFT LCD solution:
    *more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
    To get the latest prices, pls feel free to contact us.

    LQ065T9BR51 Optical Features

    Display ModeTN, Normally White, Transflective
    Brightness220 cd/m² (Typ.)
    Contrast Ratio7:1 (Typ.) (Reflective)
    Display ColorFull color ()
    Response Time15/35 (Typ.)(Tr/Td)
    Viewing Angle50/50/40/50 (Typ.)(CR≥5) (L/R/U/D)
    Viewing Direction6 o'clock
    Reflectance Ratio10% (Typ.)
    Sunlight ReadableY


    Why Choose US:
    1. Prompt reply within 12 hours.
    2. Understand inquiry in any language.
    3. Products with top quality.
    4. Very competitive prices.
    5. 6-year experience in industrial LCD Screen replacements.
    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
    7. Fabulous after-sale service.

    LQ065T9BR51 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanYes (U/D, L/R)
    Time Controller (T-CON)Embedded T-CON






    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LM5Q31SHARP5.0"320×240
    LM32019PSHARP5.7"320×240
    LM32P101SHARP4.7"320×240
    LM32P18SHARP4.7"320×240
    LM32C04PSHARP5.5"320×240
    LM32P10SHARP4.7"320×240
    LM32010PSHARP4.7"320×240
    LM32K101SHARP4.7"320×240

    We also have other industrial LCD panels, pls contact to us for the further information

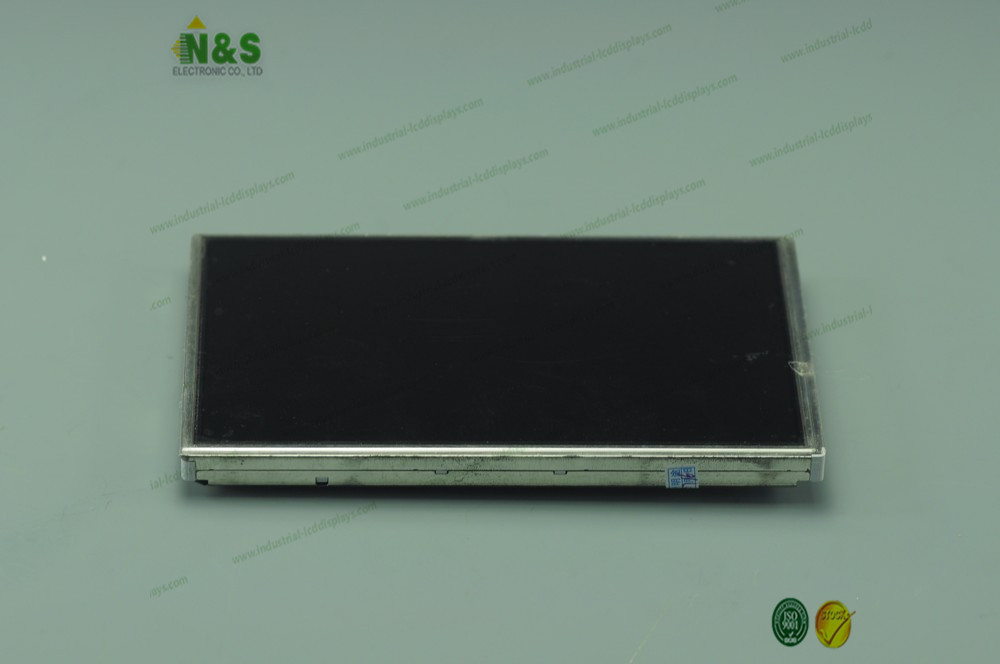

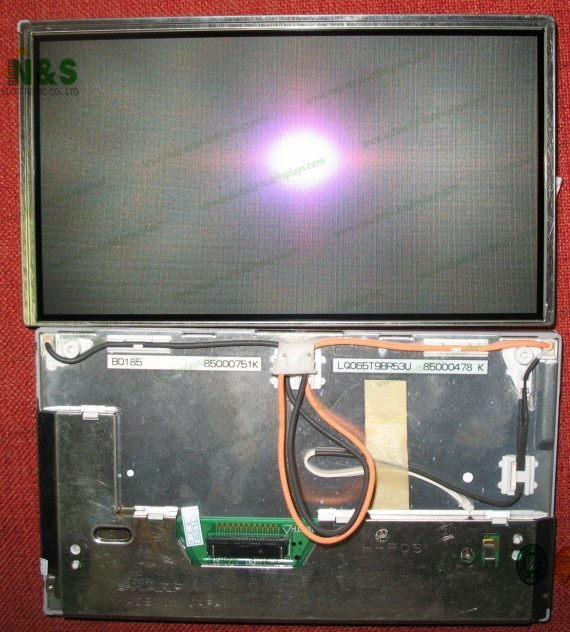

    LQ065T9BR51pictures
