    LQ065T9BR53 Sharp LCD Panel A-Si TFT-LCD 6.5 Inch RGB Vertical Stripe Pixel

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ065T9BR53
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    LQ065T9BR53 Sharp LCD Panel A-Si TFT-LCD 6.5 Inch RGB Vertical Stripe Pixel

    New and original LQ065T9BR53 SHARP a-Si TFT-LCD ,6.5 inch, 400×240 for Industrial Application

    LQ065T9BR53 Basic Information

    Panel ModelLQ065T9BR53
    Panel BrandSHARP
    Descritiona-Si TFT-LCD ,6.5 inch, 400×240
    Panel Typea-Si TFT-LCD
    Operating Temperature-30 ~ 85 °C
    Storage Temperature

    -30 ~ 85 °C

    Vibration Resistance2.9G (28.4 m/s²)
    RemarksNTSC(M) / PAL(B·G), Self heating backlight, Reflectivity 10% (Typ.)

    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.

    LQ065T9BR53 Mechanical Features

    Dot Resolution400(RGB)×240 (WQVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density72 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.1195×0.3305 mm (H×V)
    Pixel Pitch0.3585×0.3305 mm (H×V)
    Weight205g (Typ.)
    SurfaceAntiglare
    Active Area143.4×79.326 mm (H×V)
    Outline Dimension155×89.2 mm (H×V)
    Outline Depth12.5 (Typ.) mm
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Quality Control:

    1. Visual Inspection

    Make sure No damage, No Scratches, No dusty, No light leakage.

    1. Function Inspection

    Make sure all functions are 100% tested ok

    LQ065T9BR53 Optical Features

    Display ModeTN, Normally White, Transflective
    Brightness220 cd/m² (Typ.)
    Contrast Ratio7:1 (Typ.) (Reflective)
    Display ColorFull color ()
    Response Time15/35 (Typ.)(Tr/Td)
    Viewing Angle50/50/40/50 (Typ.)(CR≥5) (L/R/U/D)
    Viewing Direction6 o'clock
    Reflectance Ratio10% (Typ.)
    Sunlight ReadableY

    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    LQ065T9BR53 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanYes (U/D, L/R)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LM12S02SHARP12.1"800×600
    LM6Q40ASHARP5.5"320×240
    LM6Q40SHARP5.5"320×240
    LM6Q35SHARP5.5"320×240
    LM6Q33SHARP5.5"320×240
    LM6Q32SHARP5.5"320×240
    LM6Q31SHARP5.5"320×240
    LM5Q32RSHARP5.0"320×240

    We also have other industrial LCD panels, pls contact to us for the further information

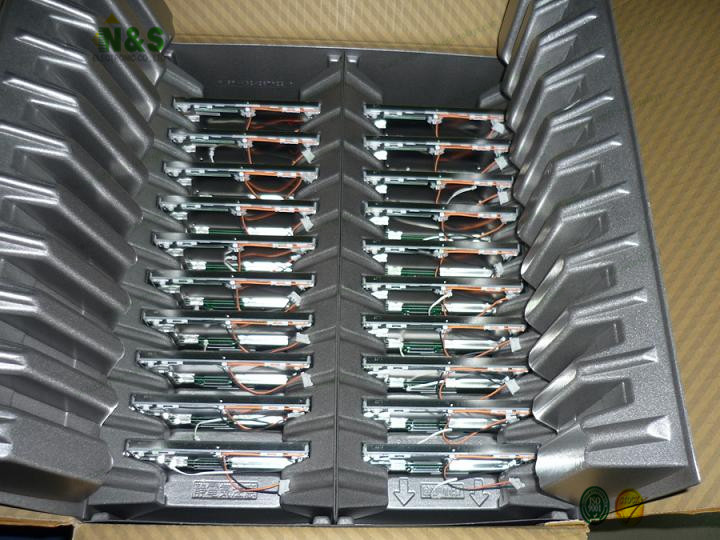

    LQ065T9BR53 pictures
