    Hard Coating Surface Samsung Lcd Display Panel A-Si TFT-LCD 3.5 Inch LTP350QV-E06

    Ask Lasest Price
    Brand Name : SAMSUNG
    Model Number : LTP350QV-E06
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Hard Coating Surface Samsung Lcd Display Panel A-Si TFT-LCD 3.5 Inch LTP350QV-E06

    LTP350QV-E06 SAMSUNG a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application

    LTP350QV-E06 Basic Information

    Panel ModelLTP350QV-E06
    Panel BrandSAMSUNG
    Descritiona-Si TFT-LCD ,3.5 inch, 240×320
    Panel Typea-Si TFT-LCD
    Operating Temperature-10 ~ 60 °C
    Storage Temperature-20 ~ 70 °C

    Shipment for the LCD Display Panels:
    1. Safe & Professional package for our LCD panels.
    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    LTP350QV-E06 Mechanical Features

    Dot Resolution240(RGB)×320 (QVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density113 PPI
    Aspect Ratio3:4 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0745×0.2235 mm (H×V)
    Pixel Pitch0.2235×0.2235 mm (H×V)
    Weight47/52g (Typ./Max.
    SurfaceHard coating (3H)
    Active Area53.64×71.52 mm (H×V)
    Outline Dimension64.3×87.1 mm (H×V)
    Outline Depth4.25/4.85 (Typ./Max.) mm
    Landscape or PortraitPortrait type
    Touch PanelEmbeded (4-wire Resistive)

    The reasons you choose us

    1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h

    ard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

    LTP350QV-E06 Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness60 cd/m² (Typ.)
    Contrast Ratio8:1 (Typ.) (Reflective)
    Display Color262K (6-bit)
    Response Time40 (Typ.)(Tr+Td)
    Viewing Angle40/40/25/35 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction6 o'clock
    Reflectance Ratio8% (Typ.)
    Sunlight ReadableY

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    LTP350QV-E06 Backlight System

    Lamp PositionEdge light type
    Lamp TypeWLED

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    AMS397GE10-0Samsung4.0"480×800
    AMS331FY01Samsung3.3"480×800
    AMS347FF02Samsung3.5"360×640
    AMS347FF01Samsung3.5"360×640
    AMS320FS03Samsung3.2"320×480
    AMS326FA05Samsung3.3"480×272
    AMS369FG07-003Samsung3.7"480×800
    AMS369FG07-002Samsung3.7"480×800

    We also have other industrial LCD panels, pls contact to us for the further information

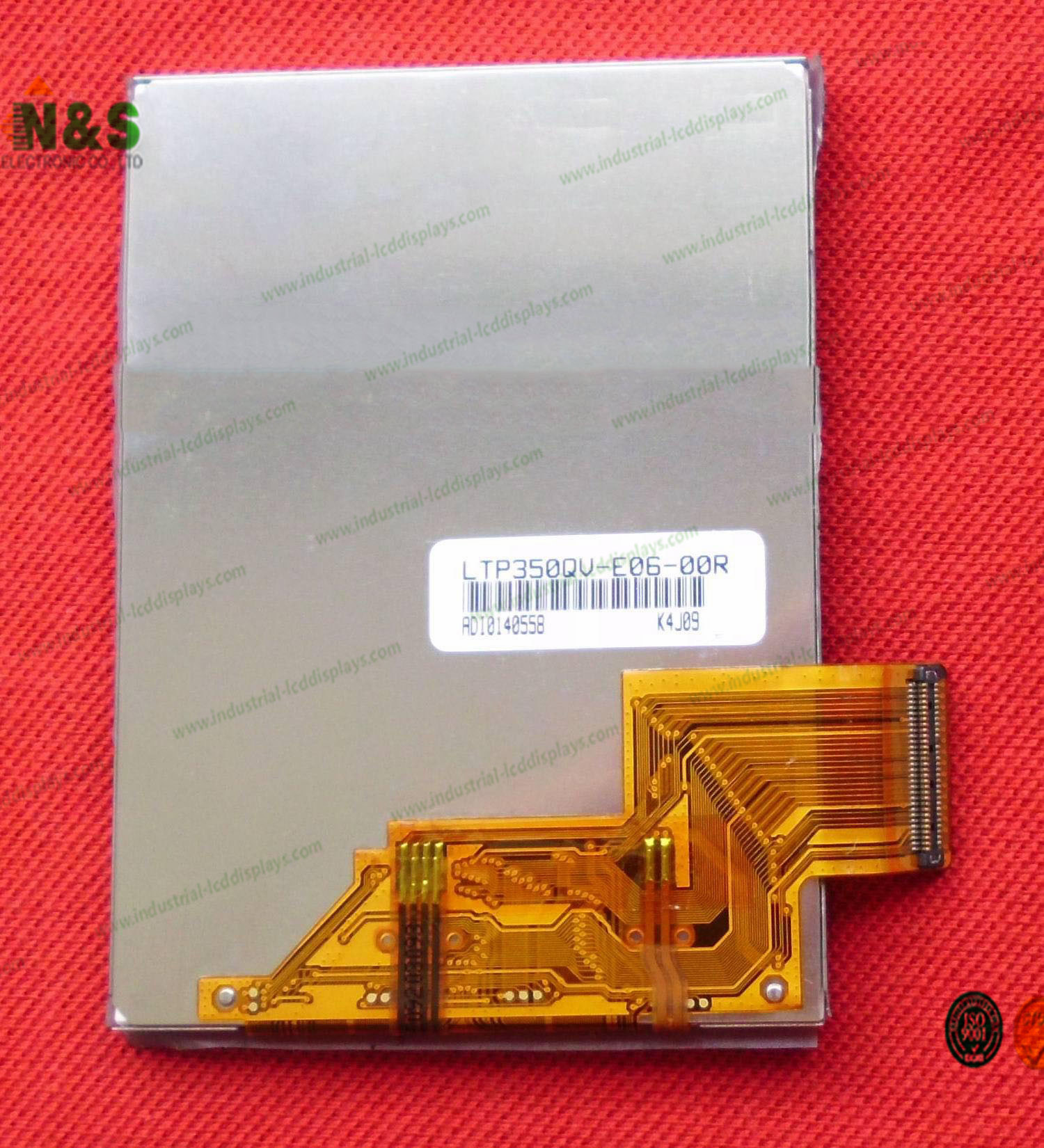

    LTP350QV-E06 pictures
