LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application from wholesalers

    Buy cheap LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application from wholesalers
    • Buy cheap LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application from wholesalers
    • Buy cheap LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application from wholesalers
    • Buy cheap LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application from wholesalers

    LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application

    Ask Lasest Price
    Brand Name : SAMSUNG
    Model Number : LTE430WQ-F0C
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application

    LTE430WQ-F0C SAMSUNG a-Si TFT-LCD ,4.3 inch, 480×272 for Industrial Application


    LTE430WQ-F0C Basic Information

    Panel ModelLTE430WQ-F0C
    Panel BrandSAMSUNG
    Descritiona-Si TFT-LCD ,4.3 inch, 480×272
    Panel Typea-Si TFT-LCD
    Operating Temperature-20 ~ 60 °C
    Storage Temperature-30 ~ 70 °C
    RemarksDE/SYNC Mode

    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.

    LTE430WQ-F0C Mechanical Features

    Dot Resolution480×272(RGB) (WQVGA)
    Pixel ConfigurationRGB Horizontal Stripe
    Pixel Density128 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.198×0.066 mm (H×V)
    Pixel Pitch0.198×0.198 mm (H×V)
    Active Area95.04×53.856 mm (H×V)
    Outline Dimension105.5×67.2 mm (H×V)
    Outline Depth4.07 (Max.) mm
    Landscape or PortraitLandscape type
    Touch PanelEmbeded (4-wire Resistive)

    Quality Control:

    1. Visual Inspection

    Make sure No damage, No Scratches, No dusty, No light leakage.

    1. Function Inspection

    Make sure all functions are 100% tested ok

    LTE430WQ-F0C Optical Features

    Display ModePVA, Normally Black, TMR
    Brightness400 cd/m² (Typ.)
    Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Display Color16.7M (8-bit)
    Response Time15/17 (Typ.)(Tr/Td)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Viewing DirectionSymmetry
    Sunlight ReadableY

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    LTE430WQ-F0C Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanNo

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    AMS317PN01Samsung3.2"360×640
    AMS495QA01Samsung5.0"960×544
    AMS495QA04Samsung5.0"960×544
    AMDM001Samsung2.6"240×400
    AMCE002Samsung2.4"240×320
    AMEJ006Samsung2.8"240×400
    AMCB004Samsung2.4"240×320
    AMS410GJ02-0Samsung4.1"480×800

    We also have other industrial LCD panels, pls contact to us for the further information

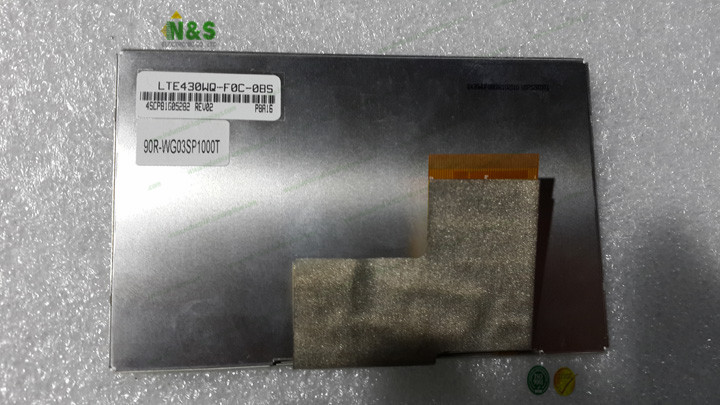

    LTE430WQ-F0C pictures


    Quality LTE430WQ-F0C Samsung Lcd Screen A-Si TFT-LCD 4.3 Inch 480×272 Industrial Application for sale
