    Antiglare Surface Digital LCD Display TM035WBHG01 TIANMA A-Si TFT-LCD3.5 Inch 480×640

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM035WBHG01
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Antiglare Surface Digital LCD Display TM035WBHG01 TIANMA A-Si TFT-LCD3.5 Inch 480×640

    New and original TM035WBHG01 TIANMA a-Si TFT-LCD ,3.5 inch, 480×640 for Medical Imaging


    TM035WBHG01 Basic Information

    Panel ModelTM035WBHG01
    Panel BrandTIANMA
    Descritiona-Si TFT-LCD ,3.5 inch, 480×640
    Panel Typea-Si TFT-LCD
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-30 ~ 80 °C

    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.

    TM035WBHG01 Mechanical Features

    Dot Resolution480(RGB)×640 (VGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density228 PPI
    Aspect Ratio3:4 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.037×0.111 mm (H×V)
    Pixel Pitch0.111×0.111 mm (H×V)
    SurfaceAntiglare
    Active Area53.28×71.04 mm (H×V)
    Outline Dimension64×85 mm (H×V)
    Outline Depth4.33±0.3 mm
    Landscape or PortraitPortrait type
    Touch PanelEmbeded (4-wire Resistive)

    After-sale Services:

    1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).

    2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.

    3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.

    TM035WBHG01 Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness250 cd/m² (Typ.)
    Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Color Gamut50% NTSC (CIE1931)
    Response Time25 (Typ.)(Tr+Td)
    Viewing Angle60/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction9 o'clock
    White color ChromaticityWx:0.301; Wy:0.321
    White Variation1.33/1.43 (Typ./Max.)(9 points)
    Sunlight ReadableN

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    TM035WBHG01 Electronics Feature

    Driver ICBuilt-in HX8363-A

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TS022GAADY02Tianma2.2"176×220
    TM057JYHP03Tianma5.7"720×1280
    TM053JYHP01Tianma5.3"720×1280
    TM050JYHP01Tianma5.0"720×1280
    TM080TYH01Tianma8.0"1024×768
    TM020GYH34Tianma2.0"176×220
    TM020GYH33Tianma2.0"176×220
    TM020GYH32Tianma2.0"176×220

    We also have other industrial LCD panels, pls contact to us for the further information

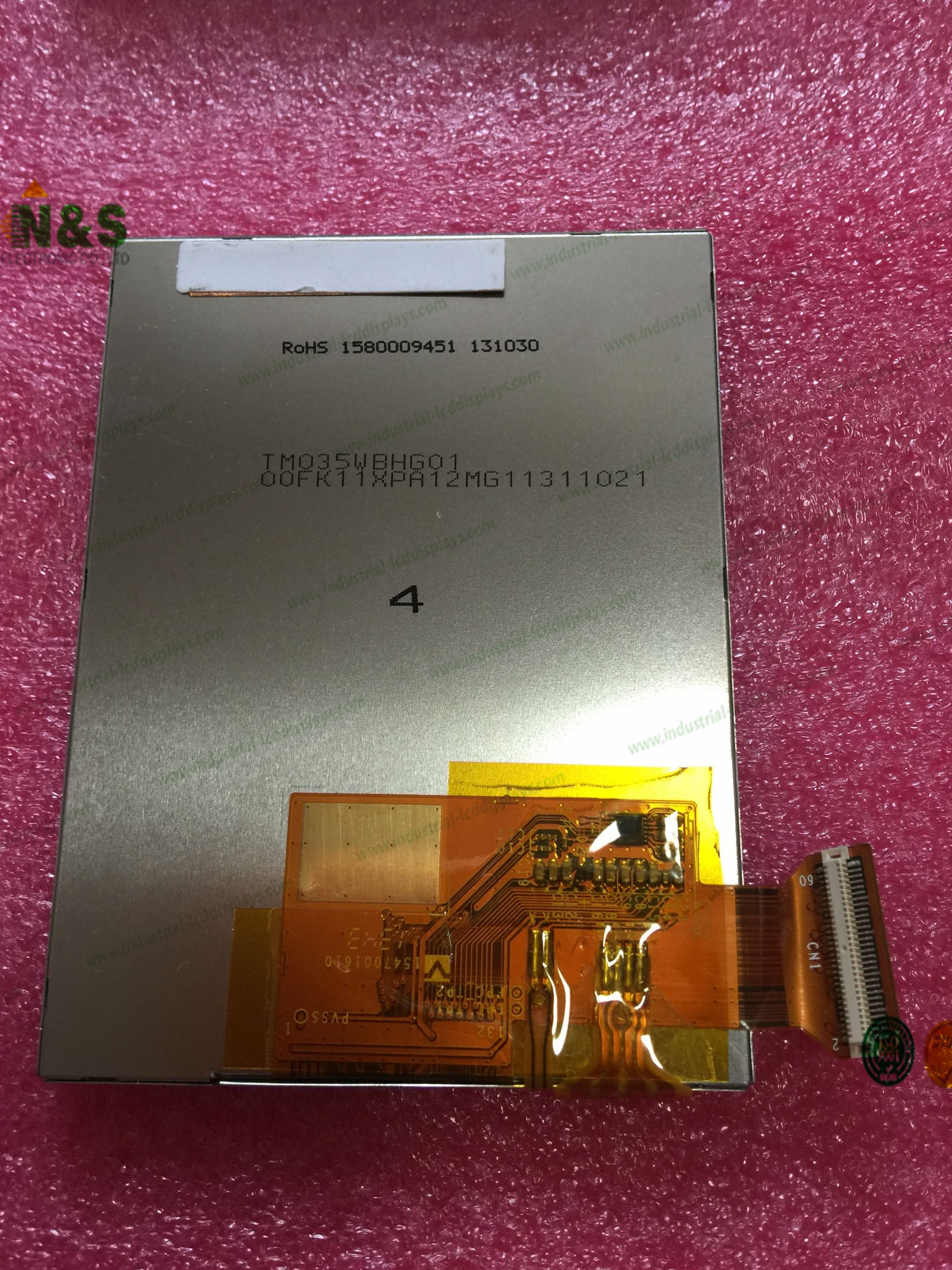

    TM035WBHG01 pictures
