G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display from wholesalers

    Buy cheap G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display from wholesalers
    • Buy cheap G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display from wholesalers
    • Buy cheap G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display from wholesalers
    • Buy cheap G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display from wholesalers

    G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display

    Ask Lasest Price
    Brand Name : CMO
    Model Number : G104V1-T01
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    G104V1-T01 Innolux LCD Panel 10.4 Inch 640×480 Descrition Flat Rectangle Display

    G104V1-T01 CMO a-Si TFT-LCD ,10.4 inch, 640×480 for Industrial Application

    G104V1-T01 Basic Information

    Panel ModelG104V1-T01
    Panel BrandCMO
    Descritiona-Si TFT-LCD ,10.4 inch, 640×480
    Panel Typea-Si TFT-LCD
    Model AliasN104V1-T01
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-20 ~ 80 °C


    Packaging & Delivery
    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
    Delivery Detail: 2-3 days after receipt of payment
    Payment terms: We accept T/T, PayPal, Western Union and others.

    G104V1-T01 Mechanical Features

    Dot Resolution640(RGB)×480 (VGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density76 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.110×0.330 mm (H×V)
    Pixel Pitch0.330×0.330 mm (H×V)
    Weight470g (Typ.)
    SurfaceAntiglare (Haze 25%), Hard coating (3H)
    Active Area211.2×158.4 mm (H×V)
    Bezel Area215.4×161.8 mm (H×V)
    Outline Dimension225.5×176.3 mm (H×V)
    Outline Depth9.5±0.5 mm
    Holes & BracketsSide mounting holes (4-M2) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout


    Our service
    1. Agent Brand:
    * Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
    2. Quality to be guaranteed:
    * All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
    * Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
    3Quickly delivery:
    * We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
    4long-term partner:
    * Products are sold to more than 20 countries.
    5Super After-Sale service:
    * One year warranty .
    6. The best TFT LCD solution:
    *more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
    To get the latest prices, pls feel free to contact us.

    G104V1-T01 Optical Features

    Display ModeSuper MVA, Normally Black, Transmissive
    Brightness450 cd/m² (Typ.)
    Contrast Ratio1500 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Response Time14/9 (Typ.)(Tr/Td)
    Viewing Angle88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
    Viewing DirectionSymmetry
    White color ChromaticityWx:0.319; Wy:0.338
    White Variation1.25/1.40 (Typ./Max.)(5 points)
    Sunlight ReadableN


    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    G104V1-T01 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanYes (180°)



    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    HJ070IA-02DInnolux7.0"1280×800
    V420HF1-PE3Innolux42"1920×1080
    V390HJ4-PE1Innolux39"1920×1080
    V420HK1-PE6Innolux42"1920×1080
    M215HGJ-P02Innolux21.5"1920×1080
    V420HF1-PE2Innolux42"1920×1080
    F02702-02LInnolux2.7"320×240
    V400HK2-PE1Innolux40"1920×1080


    We also have other industrial LCD panels, pls contact to us for the further information

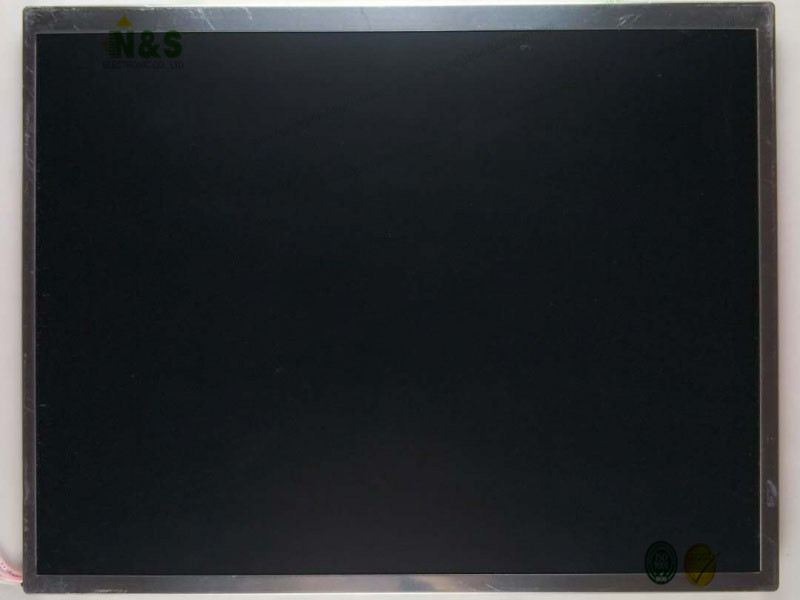

    G104V1-T01 pictures
