    Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch

    Ask Lasest Price
    Brand Name : CMO
    Model Number : G133I1-L01
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Industrial Application LCD Screen Display Panel G133I1-L01 CMO A-Si TFT-LCD 13.3 Inch

    New and original G133I1-L01 CMO a-Si TFT-LCD ,13.3 inch, 1280×800 for Industrial Application


    G133I1-L01 Basic Information

    Panel ModelG133I1-L01
    Panel BrandCMO
    Descritiona-Si TFT-LCD ,13.3 inch, 1280×800
    Panel Typea-Si TFT-LCD
    Operating Temperature0 ~ 50 °C
    Storage Temperature-20 ~ 60 °C

    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.

    G133I1-L01 Mechanical Features

    Dot Resolution1280(RGB)×800 (WXGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density113 PPI
    Aspect Ratio16:10 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0745×0.2235 mm (H×V)
    Pixel Pitch0.2235×0.2235 mm (H×V)
    Weight450/465g (Typ./Max.)
    SurfaceAntiglare (Haze 25%)
    Active Area286.08×178.8 mm (H×V)
    Bezel Area289.1×181.8 mm (H×V)
    Outline Dimension304.6×195 mm (H×V)
    Outline Depth7.7/8.0 (Typ./Max.) mm
    Holes & BracketsSide mounting holes (6-M2) on left, right bezel; Face mounting holes (3 pcs) on left, right slugs
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    G133I1-L01 Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness400 cd/m² (Typ.)
    Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Response Time6/10 (Typ.)(Tr/Td)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White color ChromaticityWx:0.313; Wy:0.329
    White Variation1.45 (Max.)(5 points)
    Sunlight ReadableN

    Why do you choose us?

    • Quick response to clients' enquiries within 24hrs.

    • More than 6-year experience in LCD screen field and professional team communication team.

    •Value quality and long-term cooperation to reach win-win relationship.

    G133I1-L01 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanNo

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    V400DK1-QS1Innolux40"3840×2160
    V500HJ1-PE6Innolux50"1920×1080
    V580DK1-PS1Innolux58"3840×2160
    F04004-03ZInnolux4.0"480×800
    V546HK7-PS1Innolux55"1920×1080
    V650DK1-PS1Innolux65"3840×2160
    V645H1-PE1Innolux65"1920×1080
    Q0A411-601Innolux10.4"800×600

    We also have other industrial LCD panels, pls contact to us for the further information

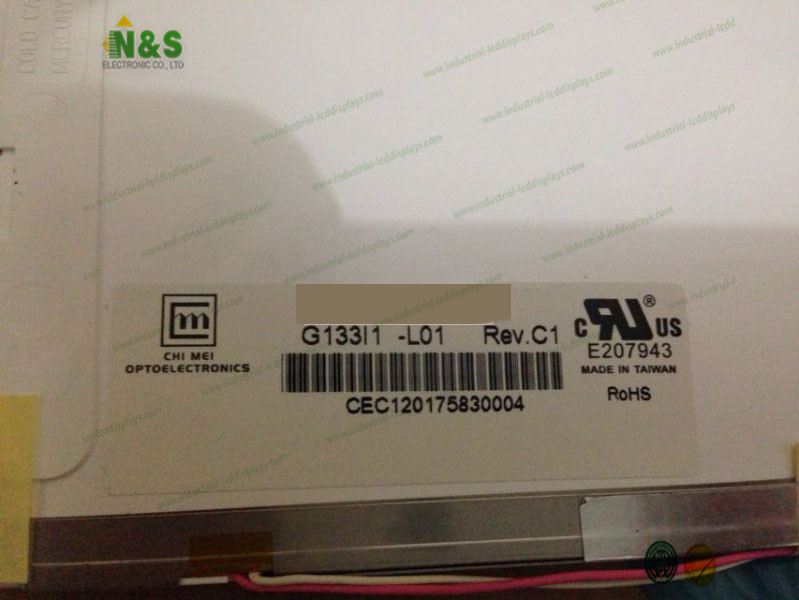

    G133I1-L01 pictures
