5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display from wholesalers

    Buy cheap 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display from wholesalers
    • Buy cheap 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display from wholesalers
    • Buy cheap 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display from wholesalers
    • Buy cheap 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display from wholesalers

    5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display

    Ask Lasest Price
    Brand Name : KOE
    Model Number : TX14D25VM1BAA
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display

    New and original TX14D25VM1BAA KOE a-Si TFT-LCD ,5.7 inch, 320×240 for Industrial Application


    TX14D25VM1BAA Basic Information

    Panel ModelTX14D25VM1BAA
    Panel BrandKOE
    Descritiona-Si TFT-LCD ,5.7 inch, 320×240
    Panel Typea-Si TFT-LCD
    Operating Temperature-30 ~ 80 °C
    Storage Temperature-30 ~ 80 °C
    Vibration Resistance2.0G (19.6 m/s²)

    Packaging & Shipping:

    Delivery Information:
    Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
    Shipping Method:
    By Express: FedEx, DHL, EMS, TNT, UPS,

    TX14D25VM1BAA Mechanical Features

    Dot Resolution320(RGB)×240 (QVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density70 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.120×0.360 mm (H×V)
    Pixel Pitch0.360×0.360 mm (H×V)
    Weight142g (Typ.)
    Active Area115.2×86.4 mm (H×V)
    Bezel Area119.4×90.6 mm (H×V)
    Outline Dimension131×102.2 mm (H×V)
    Outline Depth9.6/11.4 (Typ./Max.) mm
    Holes & BracketsRear mounting Pole (4-Φ2.4)
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Warranty:

    1. All panels’ grade is promised strictly same as original factory’s standard.

    2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

    3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

    4. ISO 9001 guarantee.

    TX14D25VM1BAA Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness450 cd/m² (Typ.)
    Contrast Ratio600 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Response Time45 (Typ.)(Tr+Td)
    Viewing Angle60/60/75/55 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction12 o'clock
    White color ChromaticityWx:0.310; Wy:0.330
    White Variation1.43 (Max.)(9 points)
    Sunlight ReadableN

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    TX14D25VM1BAA Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanNo

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    SX19V010KOE7.5"640×480
    SX31S009-A01KOE12.1"800×600
    SX31S009KOE12.1"800×600
    SX31S008KOE12.1"800×600
    SX31S007KOE12.1"800×600
    SX31S004KOE12.1"800×600
    SX31S003KOE12.1"800×600
    SX31S002KOE12.1"800×600

    We also have other industrial LCD panels, pls contact to us for the further information

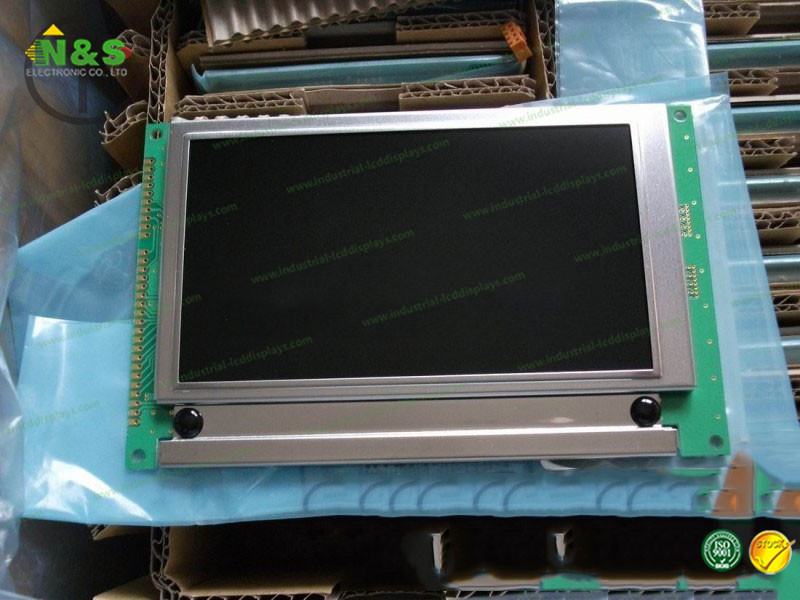

    TX14D25VM1BAA pictures


    Quality 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display for sale
