6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display from wholesalers

    Buy cheap 6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display from wholesalers
    • Buy cheap 6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display from wholesalers
    • Buy cheap 6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display from wholesalers
    • Buy cheap 6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display from wholesalers

    6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : KCG062HV1AE-G00
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    6.2 Inch 640×240 Medical LCD Displays KCG062HV1AE-G00 Kyocera Flat Rectangle Display


    New and original KCG062HV1AE-G00 Kyocera CSTN-LCD ,6.2 inch, 640×240 for Industrial Application


    KCG062HV1AE-G00 Basic Information


    Panel ModelKCG062HV1AE-G00
    Panel BrandKyocera
    DescritionCSTN-LCD ,6.2 inch, 640×240
    Panel TypeCSTN-LCD
    Operating Temperature0 ~ 50 °C
    Storage Temperature-20 ~ 60 °C

    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    KCG062HV1AE-G00 Mechanical Features

    Dot Resolution640(RGB)×240 (HVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density109 PPI
    Aspect Ratio8:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.077×0.231 mm (H×V)
    Pixel Pitch0.231×0.231 mm (H×V)
    Weight170g (Typ.)
    SurfaceGlare (Haze 0%)
    Active Area147.82×55.42 mm (H×V)
    Bezel Area152.4×60.0 mm (H×V)
    Outline Dimension174.2×73.4 mm (H×V)
    Outline Depth9.4/13.5 (Typ./Max.) mm
    Landscape or PortraitLandscape type
    Touch PanelEmbeded (4-wire Resistive)

    Quality Control:

    1. Visual Inspection

    Make sure No damage, No Scratches, No dusty, No light leakage.

    1. Function Inspection

    Make sure all functions are 100% tested ok

    KCG062HV1AE-G00 Optical Features

    Display ModeSTN, Normally Black, Transmissive
    Brightness130 cd/m² (Typ.)
    Contrast Ratio30 : 1 (Typ.) (Transmissive)
    Display ColorColor ()
    Response Time190/180 (Typ.)(Tr/Td)
    Viewing Angle50/50/30/20 (Typ.)(CR≥2) (L/R/U/D)
    White color ChromaticityWx:0.300; Wy:0.320
    Sunlight ReadableN

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    KCG062HV1AE-G00 Electronics Feature

    Vertical Frequency75Hz
    Reverse ScanNo
    Driving MethodDuty: 1/240

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    F-56015GNB-LW-AANKyocera5.7"320×240
    KCS3224ASTT-X7Kyocera5.7"320×240
    KCS3224ASTT-X9Kyocera5.7"320×240
    KCG057QV1DB-G900Kyocera5.7"320×240
    KCS6448ESTT-X5Kyocera7.7"640×480
    KCG057QV1DH-G68Kyocera5.7"320×240
    KCG057QV1DF-G00Kyocera5.7"320×240
    KS3224ASTT-FW-X20Kyocera5.7"320×240

    We also have other industrial LCD panels, pls contact to us for the further information

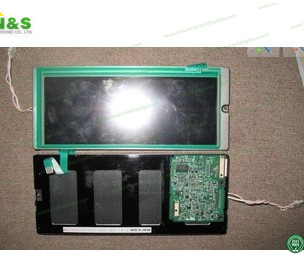

    KCG062HV1AE-G00 pictures
