    New / Original Medical LCD Displays TX20D18VM2BPA HITACHI LTPS TFT-LCD 8.0 Inch 800×480

    Ask Lasest Price
    Brand Name : HITACHI
    Model Number : TX20D18VM2BPA
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    New / Original Medical LCD Displays TX20D18VM2BPA HITACHI LTPS TFT-LCD 8.0 Inch 800×480


    New and original TX20D18VM2BPA HITACHI LTPS TFT-LCD ,8.0 inch, 800×480 for Medical Imaging


    TX20D18VM2BPA Basic Information

    Panel ModelTX20D18VM2BPA
    Panel BrandHITACHI
    DescritionLTPS TFT-LCD ,8.0 inch, 800×480
    Panel TypeLTPS TFT-LCD
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-30 ~ 80 °C

    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.


    TX20D18VM2BPA Mechanical Features

    Dot Resolution800(RGB)×480 (WVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density116 PPI
    Aspect Ratio15:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0725×0.2175 mm (H×V)
    Pixel Pitch0.2175×0.2175 mm (H×V)
    Weight300g (Typ.)
    SurfaceAntiglare, Hard coating (3H)
    Active Area174×104.4 mm (H×V)
    Bezel Area179.6×110 mm (H×V)
    Outline Dimension189×120 mm (H×V)
    Outline Depth12.3 (Max.) mm
    Landscape or PortraitLandscape type
    Touch PanelEmbeded (4-wire Resistive)

    Packaging & Shipping:

    Delivery Information:
    Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
    Shipping Method:
    By Express: FedEx, DHL, EMS, TNT, UPS,

    TX20D18VM2BPA Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness280 cd/m² (Typ.)
    Contrast Ratio200 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Color Gamut60% NTSC (CIE1931)
    Response Time20/10 (Typ.)(Tr/Td)
    Viewing Angle50/50/50/50 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction12 o'clock
    White color ChromaticityWx:0.300; Wy:0.310
    White Variation1.43 (Max.)(5 points)
    Sunlight ReadableN

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    TX20D18VM2BPA Electronics Feature

    Vertical Frequency60Hz
    Time Controller (T-CON)Embedded T-CON

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LMG6382QHFRKOE4.8"256×64
    LMG6380QHGRKOE4.8"256×64
    LMG6381QHGEKOE4.8"256×64
    LMG7422PLFFKOE5.1"240×128
    LMG7421PLBCKOE5.1"240×128
    LMG7412PLFFKOE5.1"240×128
    LMG7402PLFFKOE5.1"240×128
    LMG7401PLBCKOE5.1"240×128

    We also have other industrial LCD panels, pls contact to us for the further information

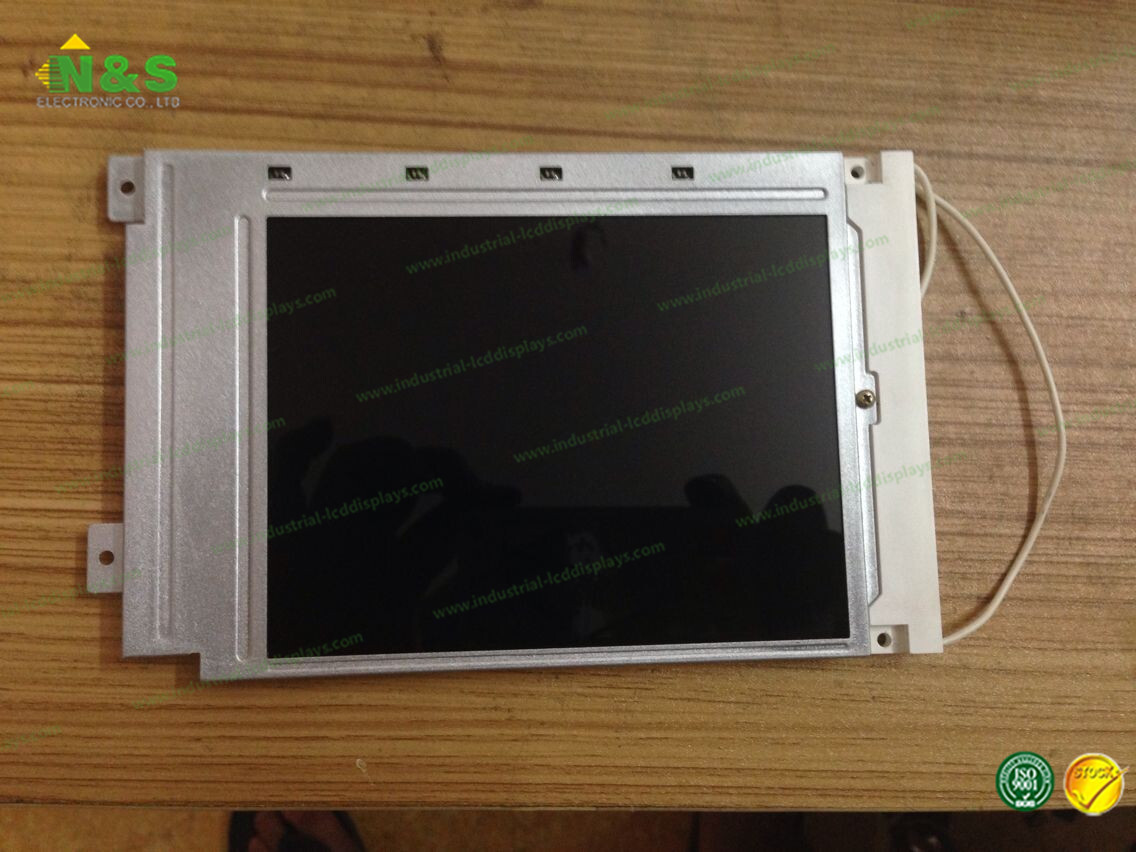

    TX20D18VM2BPA Pictures
