12.1 Inch NEC LCD Panel Normally White NL8060BC31-47 For Industry

    Buy cheap 12.1 Inch NEC LCD Panel Normally White NL8060BC31-47 For Industry from wholesalers

    Buy cheap 12.1 Inch NEC LCD Panel Normally White NL8060BC31-47 For Industry from wholesalers
    • Buy cheap 12.1 Inch NEC LCD Panel Normally White NL8060BC31-47 For Industry from wholesalers
    • Buy cheap 12.1 Inch NEC LCD Panel Normally White NL8060BC31-47 For Industry from wholesalers

    12.1 Inch NEC LCD Panel Normally White NL8060BC31-47 For Industry

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL8060BC31-47
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

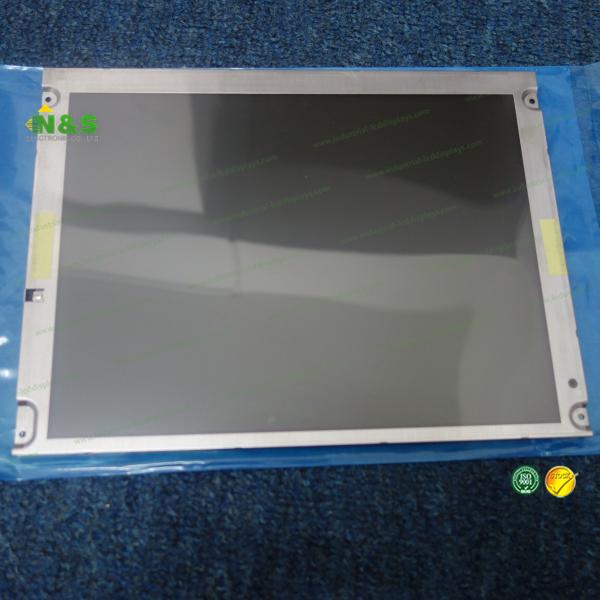

    12.1 Inch NEC LCD Panel Normally White NL8060BC31-47 For Industry

    Normally White NL8060BC31-47 12.1 inch LCM 800×600 450 for Industrial Application

    NL8060BC31-47 Information


    Panel ModelNL8060BC31-47
    Panel BrandNEC
    Descritiona-Si TFT-LCD ,12.1 inch, 800×600
    Panel Typea-Si TFT-LCD
    Display ModeTN, Normally White, Transmissive
    Active Area246×184.5 mm
    Outline280×210×9.6 mm
    SurfaceClear, Hard coating (3H)
    Contrast Ratio900:1 (Typ.)
    Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40%
    Response Time3/15 (Typ.)(Tr/Td)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency60Hz
    Lamp Type3 strings WLED Without Driver
    Signal InterfaceLVDS (1 ch, 6/8-bit) , 20 pins
    Input Voltage3.3V (Typ.)

    NL8060BC31-47 Basic Information

    Panel ModelNL8060BC31-47
    Panel BrandNEC
    Descritiona-Si TFT-LCD ,12.1 inch, 800×600
    Panel Typea-Si TFT-LCD
    Operating Temperature-30 ~ 80 °C
    Storage Temperature-30 ~ 80 °C
    Vibration Resistance2.0G (19.6 m/s²)

    NL8060BC31-47 Mechanical Features

    Dot Resolution800(RGB)×600 (SVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density82 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.1025×0.3075 mm (H×V)
    Pixel Pitch0.3075×0.3075 mm (H×V)

    What’s our advantage compared with other suppliers?
    (1). Before shipment, we will test every LCD Screen and ensure the quality.
    (2). we provide high quality lcd panels for customers all over the world.
    (3) .We have DBS, ISO9001 Certifications for our Panels.
    (4) .Excellent service on before-sale, on-sale and after-sale.

    Our Service
    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing
    • Competitive price for different brands hard disk.
    • Mass stock with the better price.
    • Multiple options.
    • Warranty service.
    • Better team to provide the before-sales, on-sale and after-sale service
    • Pls send us message if any hard disk needed.

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED133TT1E Ink13.3"2200×1650
    ED060SD1E Ink6.0"600×800
    ED060SCTE Ink6.0"600×800
    ET043OC1E Ink4.4"360×640
    EN133UT1E Ink13.3"1600×1200
    ED047TC1E Ink4.7"540×960
    ED133UT1E Ink13.3"1600×1200
    ES133UT1E Ink13.3"1600×1200
    ED060SCQE Ink6.0"600×800

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
