Normally White 9.0 inch Innolux LCD Panel AT090TN12 V.3 Wide View Angle

    Buy cheap Normally White 9.0 inch Innolux LCD Panel AT090TN12 V.3 Wide View Angle from wholesalers

    Buy cheap Normally White 9.0 inch Innolux LCD Panel AT090TN12 V.3 Wide View Angle from wholesalers
    • Buy cheap Normally White 9.0 inch Innolux LCD Panel AT090TN12 V.3 Wide View Angle from wholesalers
    • Buy cheap Normally White 9.0 inch Innolux LCD Panel AT090TN12 V.3 Wide View Angle from wholesalers

    Normally White 9.0 inch Innolux LCD Panel AT090TN12 V.3 Wide View Angle

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : AT090TN12 V.3
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    Normally White 9.0 inch Innolux LCD Panel AT090TN12 V.3 Wide View Angle

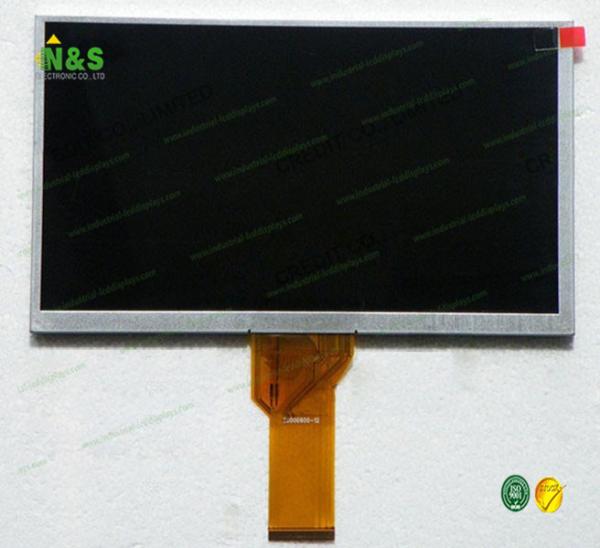

    Normally White AT090TN12 V.3 a-Si TFT-LCD Module 9.0 inch, 800×480 Normally White Surface Antiglare


    AT090TN12 V.3 Basic Information

    Panel ModelAT090TN12 V.3
    Panel BrandINNOLUX
    Descritiona-Si TFT-LCD ,9.0 inch, 800×480
    Panel Typea-Si TFT-LCD
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-30 ~ 80 °C
    Remarks2 in 1 FPC, FPC length 80.0mm

    AT090TN12 V.3 Mechanical Features

    Dot Resolution800(RGB)×480 (WVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density104 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0825×0.2327 mm (H×V)
    Pixel Pitch0.2475×0.2327 mm (H×V)
    Weight253g (Typ.)
    SurfaceAntiglare
    Active Area198×111.696 mm (H×V)
    Bezel Area201.0×114.7 mm (H×V)
    Outline Dimension211.1×126.5 mm (H×V)
    Outline Depth5.9±0.3 mm
    Landscape or PortraitLandscape type
    Touch PanelWithout

    AT090TN12 V.3 Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness250 cd/m² (Typ.)
    Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Display Color262K/16.2M (6-bit / 6-bit + Dithering)
    Color Gamut50% NTSC (CIE1931)
    Response Time10/15 (Typ.)(Tr/Td)
    Viewing Angle70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction6 o'clock
    White color ChromaticityWx:0.310; Wy:0.330
    White Variation1.33/1.43 (Typ./Max.)(9 points)
    Sunlight ReadableN

    Competitive Advantage:
    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!

    FAQ

    1. Q: Where can I get the price?

    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

    2. Q: How can I get a sample to check your quality?

    A: After price confirmation, you can require for samples to check our quality.

    3. Q: What about the lead time for mass production?

    A: It depends on your order quantity and the season you place the order.

    4. Q: What are your terms of payment?

    A: We accept T/T, Western Union, MoneyGram, PayPal.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    CD040JN13Innolux4.0"480×800
    HE070IA-04MInnolux7.0"800×1280
    M195FGE-P03Innolux19.5"1600×900
    M195FGE-P02Innolux19.5"1600×900
    HB050NA-07AInnolux5.0"640×960
    F04013-04ZInnolux4.0"480×800
    F05005-04UInnolux5.0"480×854
    F05005-03UInnolux5.0"480×854
    F05005-02UInnolux5.0"480×854
    F05005-01UInnolux5.0"480×854
    PP050IC-01BInnolux5.0"720×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
