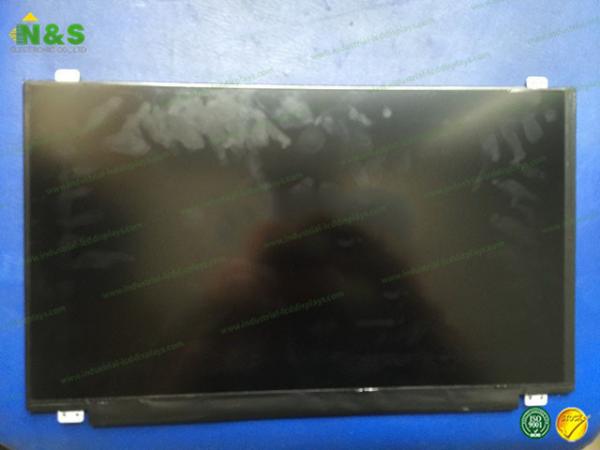

Normally White LP156WD1-TLB3 15.6 inch LG LCD Display Active Area 344.16×193.59 mm Frequency 60Hz

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap Normally White LP156WD1-TLB3 15.6 inch LG LCD Display Active Area 344.16×193.59 mm Frequency 60Hz from wholesalers

    Buy cheap Normally White LP156WD1-TLB3 15.6 inch LG LCD Display Active Area 344.16×193.59 mm Frequency 60Hz from wholesalers
    • Buy cheap Normally White LP156WD1-TLB3 15.6 inch LG LCD Display Active Area 344.16×193.59 mm Frequency 60Hz from wholesalers
    • Buy cheap Normally White LP156WD1-TLB3 15.6 inch LG LCD Display Active Area 344.16×193.59 mm Frequency 60Hz from wholesalers

    Normally White LP156WD1-TLB3 15.6 inch LG LCD Display Active Area 344.16×193.59 mm Frequency 60Hz

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LP156WD1-TLB3
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    Normally White LP156WD1-TLB3 15.6 inch LG LCD Display Active Area 344.16×193.59 mm Frequency 60Hz

    Normally White LP156WD1-TLB3 15.6 inch LG Display Active Area 344.16×193.59 mm Frequency 60Hz

    LP156WD1-TLB3 Basic Information

    Panel ModelLP156WD1-TLB3
    Panel BrandLG Display
    Descritiona-Si TFT-LCD ,15.6 inch, 1600×900
    Panel Typea-Si TFT-LCD
    Model AliasLP156WD1 (TL)(B3)
    Operating Temperature0 ~ 50 °C
    Storage Temperature-20 ~ 60 °C
    RemarksFor TECRA A11/S11/P11/Satellite Pro S500 Series Notebook

    LP156WD1-TLB3 Mechanical Features

    Dot Resolution1600(RGB)×900 (HD+)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density118 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0717×0.2151 mm (H×V)
    Pixel Pitch0.2151×0.2151 mm (H×V)
    Weight450/470g (Typ./Max.)
    SurfaceAntiglare, Hard coating (3H)
    Active Area344.16×193.59 mm (H×V)
    Bezel Area349.8×197.1 mm (H×V)
    Outline Dimension359.3×209.5 mm (H×V)
    Outline Depth5.7 (Max.) mm
    Shape StyleWedge (PCBA Bent, Depth ≥5.2mm)
    Holes & BracketsSide mounting holes (8-M2) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout

    LP156WD1-TLB3 Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness220 cd/m² (Typ.)
    Contrast Ratio400 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Color Gamut60% NTSC (CIE1931)
    Response Time8 (Typ.)(Tr+Td)
    Viewing Angle65/65/55/55 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction6 o'clock
    White Variation1.60 (Max.)(13 points)
    Sunlight ReadableN

    Competitive Advantage:


    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!

    FAQ

    1. Q: Where can I get the price?

    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

    2. Q: How can I get a sample to check your quality?

    A: After price confirmation, you can require for samples to check our quality.

    3. Q: What about the lead time for mass production?

    A: It depends on your order quantity and the season you place the order.

    4. Q: What are your terms of payment?

    A: We accept T/T, Western Union, MoneyGram, PayPal.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LH500WX1-SD01LG Display5.0"720×1280
    LD070WX3-SH01LG Display7.0"800×1280
    LH154Q01-TH01LG Display1.54"240×240
    LH467WX1-SH01LG Display4.7"768×1280
    LH350WV3-SH01LG Display3.5"480×854
    LH370WV2-SH01LG Display3.7"480×800
    LD070WS1-SL01LG Display7.0"1024×600
    LH450WX1-SH01LG Display4.5"720×1280
    LH430M01-SH01LG Display4.3"540×960
    LH400WV4-SH01LG Display4.0"480×800
