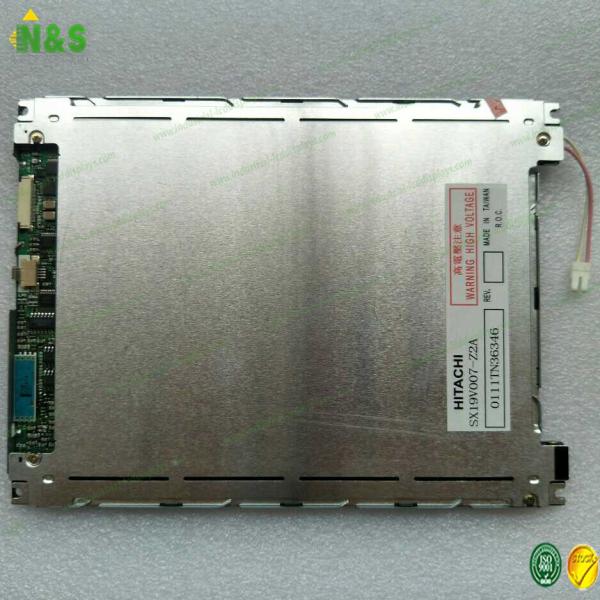

    SX19V007-Z2A 7.5 inch Hitachi LCD Panel Resolution 640×480 Frequency 100Hz

    Ask Lasest Price
    Brand Name : HITACHI
    Model Number : SX19V007-Z2A
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    SX19V007-Z2A 7.5 inch Hitachi LCD Panel Resolution 640×480 Frequency 100Hz

    Normally Black SX19V007-Z2A 7.5 inch resolution 640×480 Response Time 300/250 (Typ.)(Tr/Td) Frequency 100Hz


    SX19V007-Z2A Basic Information

    Panel ModelSX19V007-Z2A
    Panel BrandHITACHI
    DescritionCSTN-LCD ,7.5 inch, 640×480
    Panel TypeCSTN-LCD
    Operating Temperature5 ~ 50 °C
    Storage Temperature-20 ~ 60 °C

    SX19V007-Z2A Mechanical Features

    Dot Resolution640(RGB)×480 (VGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density107 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.079×0.237 mm (H×V)
    Pixel Pitch0.237×0.237 mm (H×V)
    Weight350g (Typ.)
    Active Area151.657×113.737 mm (H×V)
    Bezel Area158.5×118.0 mm (H×V)
    Outline Dimension197×145 mm (H×V)
    Outline Depth9.8 (Max.) mm
    Holes & BracketsFace mounting holes (2-Φ3.2, 2-R1.6)
    Landscape or PortraitLandscape type
    Touch PanelEmbeded (4-wire Resistive)

    SX19V007-Z2A Optical Features

    Display ModeSTN, Normally Black, Transmissive
    Brightness70 cd/m² (Typ.)
    Contrast Ratio40 : 1 (Typ.) (Transmissive)
    Display ColorColor ()
    Response Time300/250 (Typ.)(Tr/Td)
    Viewing Angle40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D)
    Viewing Direction6 o'clock
    White color ChromaticityWx:0.280; Wy:0.300
    Sunlight ReadableN

    Packaging & Delivery
    Packaging Details:
    Antistatic bag + Bubble bag + Foam box + Carton box
    Delivery Detail:
    1-3 working days after payment confirmed
