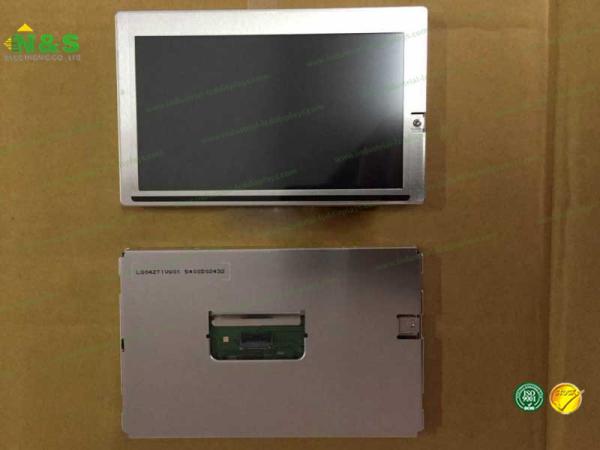

Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm from wholesalers

    Buy cheap Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm from wholesalers
    • Buy cheap Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm from wholesalers

    Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ042T1VW01
    Certification : CE
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm

    Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm


    LQ042T1VW01 Basic Information

    Panel ModelLQ042T1VW01
    Panel BrandSHARP
    Descritiona-Si TFT-LCD ,4.2 inch, 480×272
    Panel Typea-Si TFT-LCD
    Operating Temperature-10 ~ 70 °C
    Storage Temperature-30 ~ 70 °C

    LQ042T1VW01 Mechanical Features

    Dot Resolution480×272(RGB) (WQVGA)
    Pixel ConfigurationRGB Horizontal Stripe
    Pixel Density131 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.1935×0.0645 mm (H×V)
    Pixel Pitch0.1935×0.1935 mm (H×V)
    Weight85g (Max.)
    SurfaceAntiglare, Hard coating (3H)
    Active Area92.88×52.632 mm (H×V)
    Bezel Area94.48×54.272 mm (H×V)
    Outline Dimension109.5×69 mm (H×V)
    Outline Depth9.6±0.5 mm
    Holes & BracketsSide mounting holes (4-M2) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout

    LQ042T1VW01 Optical Features

    Display ModeASV, Normally Black, Transmissive
    Brightness400 cd/m² (Typ.)
    Contrast Ratio1300 : 1 (Typ.) (Transmissive)
    Display Color16.2M (6-bit + FRC)
    Color Gamut64% NTSC (CIE1931)
    Response Time20 (Typ.)(Tr+Td)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Viewing DirectionSymmetry
    White color ChromaticityWx:0.285; Wy:0.300
    Sunlight ReadableN

    Here comes our other LCD panels stock for your easy reference:


    Panel ModelBrandSizeResolution
    LS050K3SX09SHARP5.0"720×1280
    LQ315D1EG02SHARP31.5"3840×2160
    JE0DZ1C0093SHARP60"1920×1080
    LK460D3FZ10SHARP46"1920×1080
    LQ0DZC0128SHARP31.5"1366×768
    LQ0DASA469SHARP4.7"720×1280
    LQ133M1JW08ASHARP13.3"1920×1080
    LK315T3HC1KSHARP31.5"1366×768
    LQ055T3SX04SHARP5.5"1080×1920
    LQ079L1SX06SHARP7.9"1536×2048

    Pls contact to us for more stock information: salespm@nselectronic.com.hk


    Company strength:

    1. ISO9001 certificated,Factory Direct Supplied;
    2. RoHS Compliant,Lead Free,Reach Compliant;
    3. Competitive Price and Short Lead-time;
    4. Professional Team with Rich Experiences in Design/Mfg/Quality Control;
    5. Small MOQ Support & Fast Response to Customers;
    6. Long Product Life Time.

    Our guarantee:

    (1) Our all LCD screen will be strictly tested pcs by pcs and shipped with professional & safe package.

    (2) We have 12 months warranty for each LCD display, depend on the different items.

    (3) We will do our best to solve any possible problem of our LCD panels for your after sale. Please contact with us if any needs.
