5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm from wholesalers

    Buy cheap 5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm from wholesalers
    • Buy cheap 5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm from wholesalers
    • Buy cheap 5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm from wholesalers
    • Buy cheap 5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm from wholesalers

    5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL3224AC35-13
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm

    Normally White 5.5 inch NL3224AC35-13 NEC LCD Display Panel Frequency 60Hz Active Area 111.36×83.52 mm


    NL3224AC35-13 Basic Information:

    Panel ModelNL3224AC35-13
    Panel BrandNEC
    Descritiona-Si TFT-LCD ,5.5 inch, 320×240
    Panel Typea-Si TFT-LCD
    Operating Temperature-30 ~ 85 °C
    Storage Temperature-40 ~ 95 °C
    Vibration Resistance3.0G (29.4 m/s²)

    NL3224AC35-13 Mechanical Features:

    Dot Resolution320(RGB)×240 (QVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density72 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.116×0.348 mm (H×V)
    Pixel Pitch0.348×0.348 mm (H×V)
    Weight315/330g (Typ./Max.)
    SurfaceGlare (Haze 0%)
    Active Area111.36×83.52 mm (H×V)
    Outline Dimension134×110 mm (H×V)
    Outline Depth23.0 (Max.) mm
    Landscape or PortraitLandscape type
    Touch PanelWithout

    We Can Do for You:

    1) One-to-one service with efficient & professional support;

    2) Protection of your design and all your private information;

    3) We could supply different hard disk for you.

    4) Quality stability, can to provide certification of products;

    5) Convenient payment methods: PayPal, T/T and Western Union;

    6) Speedy shipment: we could arrange the shipment within 1-3 business days.

    7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

    8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.


    Competitive Advantage:

    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

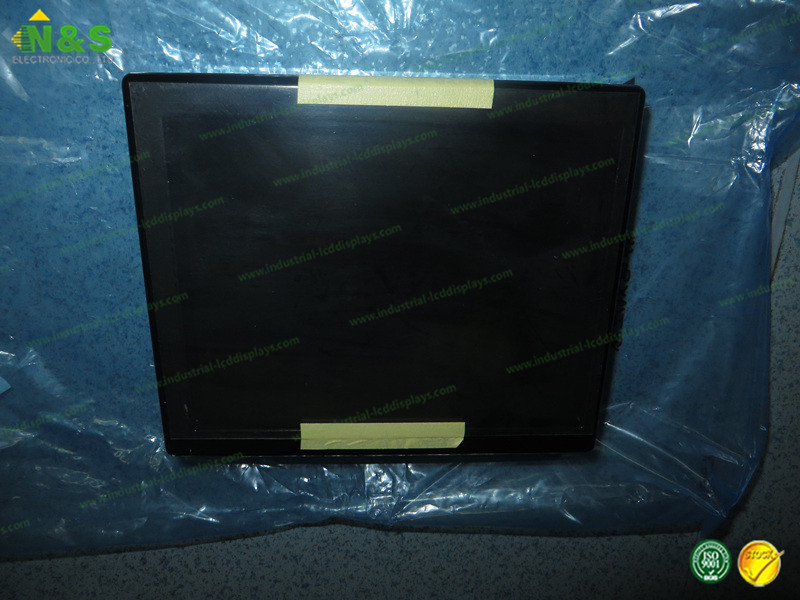

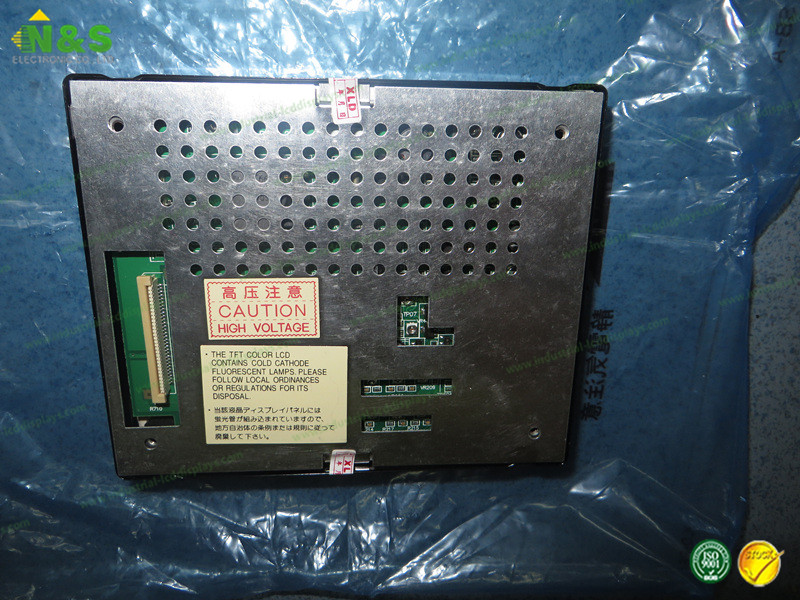

    NL3224AC35-13 Picture
