    LQ201U1LW11Z SHARP Medical LCD Displays A-Si TFT-LCD 20.1 Inch 1600×1200 Resolution

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ201U1LW11Z
    Certification : ISO9001
    Price :
    Payment Terms :
    Supply Ability :
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    LQ201U1LW11Z SHARP Medical LCD Displays A-Si TFT-LCD 20.1 Inch 1600×1200 Resolution


    LQ201U1LW11Z SHARP a-Si TFT-LCD ,20.1 inch, 1600×1200 for 60Hz


    LQ201U1LW11Z Basic Information

    Panel ModelLQ201U1LW11Z
    Panel BrandSHARP
    Descritiona-Si TFT-LCD ,20.1 inch, 1600×1200
    Panel Typea-Si TFT-LCD
    Operating Temperature0 ~ 50 °C
    Storage Temperature-25 ~ 60 °C
    RemarksMass production from Apr. 2005

    Packaging & Shipping for Our LCD panel

    1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

    2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

    Other shipping terms can also be arranged according to specific requirements.


    LQ201U1LW11Z Mechanical Features

    Dot Resolution1600(LCR)×1200 (UXGA)
    Pixel ConfigurationLCR Vertical Stripe
    Pixel Density99 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.085×0.255 mm (H×V)
    Pixel Pitch0.255×0.255 mm (H×V)
    Weight3.80Kgs (Max.)
    SurfaceAntiglare, Hard coating (2H)
    Active Area408×306 mm (H×V)
    Bezel Area413.2×311.2 mm (H×V)
    Outline Dimension436×335 mm (H×V)
    Outline Depth27.5 (Typ.) mm
    Holes & BracketsSide mounting holes (8-M3)
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Our Services

    1. Quick and accurate reply with best service attidue to our business

    2. Pofessional advise

    3. Quick PI confirmation

    4. Close production follow up and production process feedback


    LQ201U1LW11Z Optical Features

    Display ModeASV, Normally Black, Transmissive
    Brightness700 cd/m² (Typ.)
    Contrast Ratio1000 : 1 (Typ.) (Transmissive)
    Display ColorGrayscale (8-bit)
    Response Time5/20 (Typ.)(Tr/Td)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Viewing DirectionSymmetry
    White color ChromaticityWx:0.294; Wy:0.309
    White Variation1.25 (Max.)(5 points)
    Sunlight ReadableN

    Our services
    1.Your inquiry about our products or the price will be replied within 24 hours!
    2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
    3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
    4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.


    LQ201U1LW11Z Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanNo
    Total Power Consumption32.9W

    Below are our other LCD panels stock for your easy reference:


    Panel ModelBrandSizeResolution
    LQ315D1EG02SHARP31.5"3840×2160
    JE0DZ1C0093SHARP60"1920×1080
    LK460D3FZ10SHARP46"1920×1080
    LQ0DZC0128SHARP31.5"1366×768
    LQ0DASA469SHARP4.7"720×1280
    LQ133M1JW08ASHARP13.3"1920×1080
    LK315T3HC1KSHARP31.5"1366×768
    LQ055T3SX04SHARP5.5"1080×1920

    We also have other industrial LCD panels, pls contact to us for the further information

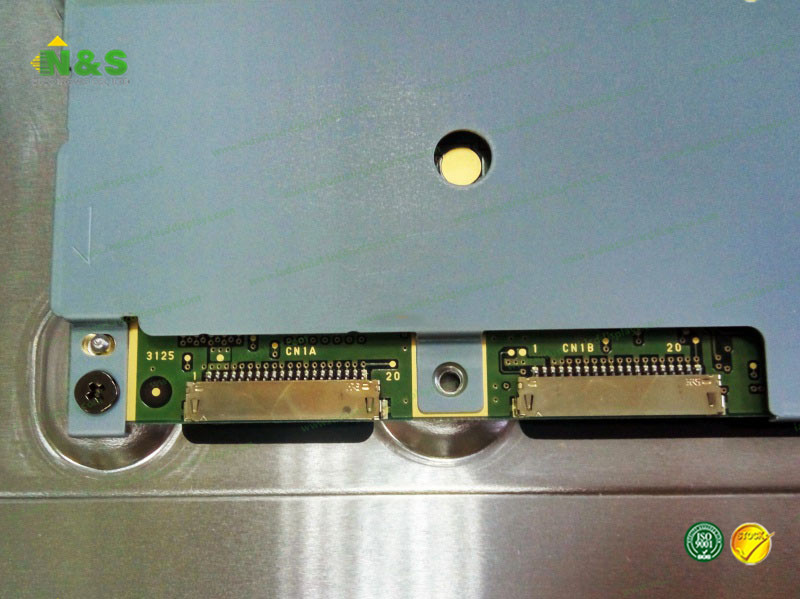

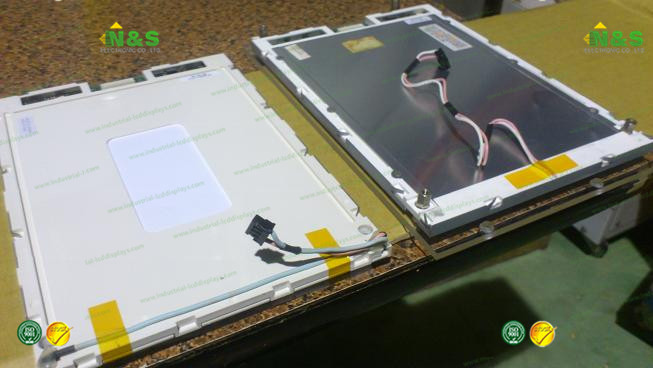

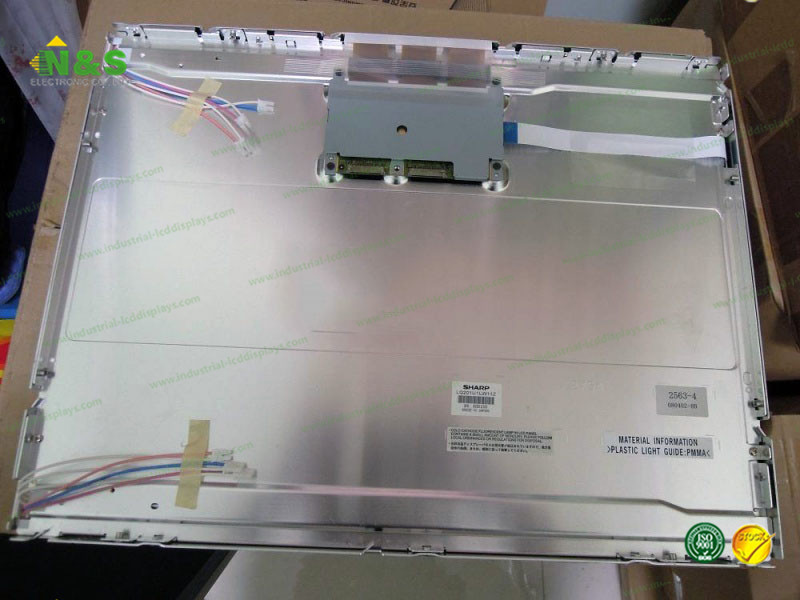

    LQ201U1LW11Z pictures
