LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins from wholesalers

    Buy cheap LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins from wholesalers
    • Buy cheap LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins from wholesalers

    LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

    Ask Lasest Price
    Brand Name : Samsung
    Model Number : LMS700KF25-0
    Price :
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

    Samsung LMS700KF25-0 7.0 inch TN LCM 800×480 350nits WLED TTL 40pins

    LMS700KF25-0 Main Parameters

    Panel Brand :SAMSUNG SMD
    Panel Model :LMS700KF25-0
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :7.0 inch
    Resolution :800(RGB)×480 , WVGA
    Display Mode :TN, Normally White, TMR
    Active Area :152.4×91.44 mm
    Outline :163.2×104×3.6 mm
    Brightness :350 cd/m2 (Typ.)
    Contrast Ratio :700 : 1 (Typ.)
    Display Colors :16.2M (6-bit + FRC)
    Response Time :16 (Typ.)(Tr+Td)
    Viewing Angle :70/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :8S3P WLED
    Signal Interface :CMOS (1 ch, 8-bit) , 40 pins

    SAMSUNG SMD LMS700KF25-0 Mechanical Features

    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :133 PPI
    Aspect Ratio :15:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0635×0.1905 mm (H×V)
    Pixel Pitch :0.1905×0.1905 mm (H×V)
    Weight :115g (Typ.)
    Active Area :152.4×91.44 mm (H×V)
    Bezel Area :155.4×94.44 mm (H×V)
    Outline Dimension :163.2×104 mm (H×V)
    Outline Depth :3.4±0.2 mm
    Holes & Brackets :Without
    Landscape or Portrait :Landscape type


    FAQ
    Q1: What's price?
    A1: We provide reasonable price and recommend suitable batteries to our customers.
    Q2: What's delivery time?
    A2: The delivery time is normally 1-3 working days after payment.
    Q3: What's the payment?
    A3: We accept T/T, Western Union, MoneyGram, Paypal
    Q4: Can we visit your factory?
    A4: Warmly welcome. Once we have your schedule, we will arrange
    professional sales team to follow up your case.

    Packaging & Delivery
    Packaging Details:
    Antistatic bag + Bubble bag + Foam box + Carton box
    Delivery Detail:
    1-3 working days after payment confirmed

    Here comes our other LCD panels stock for your easy reference:
    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    AMS549HQ02Samsung5.5"720×1280
    AMS520BQ12-0Samsung5.2"1080×1920
    AMS497DX12-0Samsung5.0"720×1280
    AMS163AN01Samsung1.63"320×320
    AMS510CV02Samsung5.1"1080×1920
    AMS510CV01Samsung5.1"1080×1920
    AMS302AK03Samsung3.0"720×480
    AMS353FD01-0Samsung3.5"480×800
    AMS499QP89-0Samsung5.0"1080×1920
    AMS529BY03Samsung5.3"1080×1920
    SDC 1.63 320×320Samsung1.63"320×320
    AMS499QP42-0Samsung5.0"1080×1920

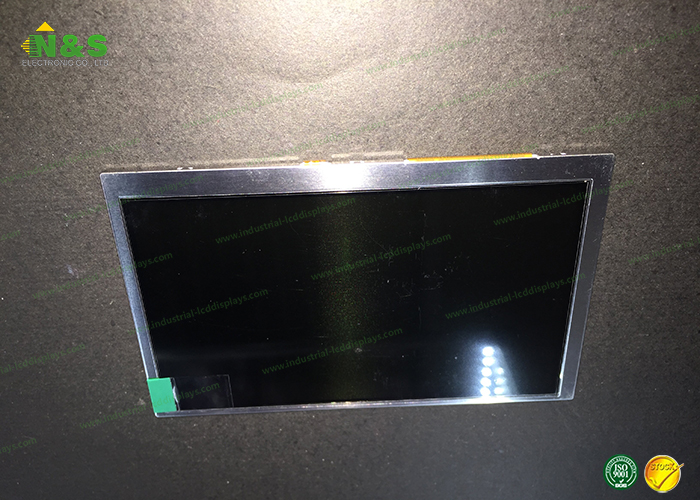

    LMS700KF25-0 Picture
