SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins

    Buy cheap SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins from wholesalers

    Buy cheap SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins from wholesalers
    • Buy cheap SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins from wholesalers

    SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ150X1LW73
    Price :
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins

    SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins

    LQ150X1LW73 Main Parameters

    Panel Brand :SHARP
    Panel Model :LQ150X1LW73
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :15.0 inch
    Resolution :1024(RGB)×768 , XGA
    Display Mode :ASV, Normally Black, Transmissive
    Active Area :304.1×228.1 mm
    Outline :331.6×254.76×13 mm
    Surface :Antiglare (Haze 42%), Hard coating (3H), Antireflection
    Brightness :350 cd/m2 (Typ.)
    Contrast Ratio :600:1 (Typ.)
    Display Colors :16.2M (6-bit + FRC)
    Response Time :35 (Typ.)(Tr+Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :4 pcs CCFL
    Signal Interface :LVDS (1 ch, 8-bit) , 20 pins
    Input Voltage :3.3V (Typ.)


    What’s our advantage compared with other suppliers?
    (1). Before shipment, we will test every LCD Screen and ensure the quality.
    (2). we provide high quality lcd panels for customers all over the world.
    (3) .We have DBS, ISO9001 Certifications for our Panels.
    (4) .Excellent service on before-sale, on-sale and after-sale.

    FAQ
    Q1: Can I place sample order first?
    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
    Q2: How could I pay them?
    A2: We accept T/T, Western Union, MoneyGram, Paypal.
    Q3: How to place the order?
    A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
    Q4: How long can I get my order?
    A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
    Q5: How to send us the products?
    A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

    SHARP LQ150X1LW73 Mechanical Features

    Panel Size :15.0 inch
    Dot Resolution :1024(RGB)×768 (XGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :85 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.099×0.297 mm (H×V)
    Pixel Pitch :0.297×0.297 mm (H×V)
    Weight :1.45Kgs (Max.)
    Surface :Antiglare (Haze 42%), Hard coating (3H), Antireflection
    Active Area :304.1×228.1 mm (H×V)
    Bezel Area :307.2×231.1 mm (H×V)
    Outline Dimension :331.6×254.76 mm (H×V)
    Outline Depth :12.5±0.5 mm
    Holes & Brackets :Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without


    Here comes our other LCD panels stock for your easy reference:
    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    LQ079L1SX06SHARP7.9"1536×2048
    LQ079L1SX04SHARP7.9"1536×2048
    LQ133M1JW08SHARP13.3"1920×1080
    LQ156D1JX02SHARP15.6"3840×2160
    LQ156Z1JW01SHARP15.6"3200×1800
    LQ133T1JW14BSHARP13.3"2560×1440
    LQ047K3SX04SHARP4.7"720×1280

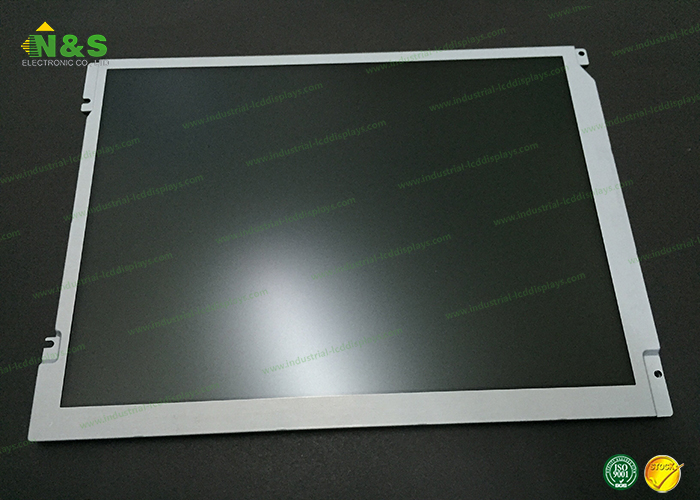

    LQ150X1LW73 Picture
