    NL8060BC21-09 NEC LCD Panel 8.4 inch with 170.4×127.8 mm Active Area

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL8060BC21-09
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    NL8060BC21-09 NEC LCD Panel 8.4 inch with 170.4×127.8 mm Active Area

    NL8060BC21-09 NEC LCD Panel 8.4 inch with 170.4×127.8 mm Active Area

    NL8060BC21-09 Characteristic

    Panel Brand :NEC
    Panel Model :NL8060BC21-09
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :8.4 inch
    Resolution :800(RGB)×600 , SVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :170.4×127.8 mm
    Outline :200×152 mm
    Surface :Clear, Hard coating (3H)
    Brightness :250 cd/m2 (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40%
    Response Time :6/19 (Typ.)(Tr/Td)
    Viewing Angle :60/60/45/55 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :2 pcs CCFL
    Signal Interface :LVDS (1 ch, 6/8-bit) , 20 pins
    Input Voltage :3.3V (Typ.)

    NEC NL8060BC21-09 Mechanical Features

    Panel Size :8.4 inch
    Dot Resolution :800(RGB)×600 (SVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :119 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.071×0.213 mm (H×V)
    Pixel Pitch :0.213×0.213 mm (H×V)
    Weight :330/350g (Typ./Max.)
    Surface :Clear, Hard coating (3H)
    Active Area :170.4×127.8 mm (H×V)
    Bezel Area :174.0×131.4 mm (H×V)
    Outline Dimension :200×152 mm (H×V)
    Outline Depth :10.5±0.5 mm
    Holes & Brackets :Face mounting holes (4-Ф2.8)
    Landscape or Portrait :Landscape type
    Touch Panel :Without


    Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
    We can do for you:

    1. Provide excellent LCD screen replacements with competitive price.
    2. Safe, quick and efficient supply chain.
    3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
    4. Your problems will be replied within 24 hours.

    FAQ
    Q1: What's price?
    A1: We provide reasonable price and recommend suitable batteries to our customers.
    Q2: What's delivery time?
    A2: The delivery time is normally 1-3 working days after payment.
    Q3: What's the payment?
    A3: We accept T/T, Western Union, MoneyGram, Paypal
    Q4: Can we visit your factory?
    A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED097TC1E Ink9.7"1200×825
    ET047TC1E Ink4.7"540×960
    ET040TC1E Ink4.0"480×720
    ED043WH1E Ink4.3"480×800
    ED043WC1E Ink4.3"480×800
    ED043WC3E Ink4.3"480×800

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

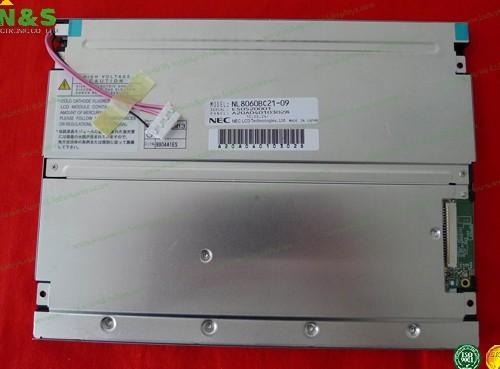

    NL8060BC21-09 Picture
