    NL6448CC33-30 NEC LCD Panel 10.4 inch with 211.2×158.4 mm Active Area

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL6448CC33-30
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    NL6448CC33-30 NEC LCD Panel 10.4 inch with 211.2×158.4 mm Active Area

    NL6448CC33-30 NEC LCD Panel 10.4 inch with 211.2×158.4 mm Active Area


    NL6448CC33-30 Main Parameters

    Panel Brand :NEC
    Panel Model :NL6448CC33-30
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :10.4 inch
    Resolution :640(RGB)×480 , VGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :211.2×158.4 mm
    Outline :264×187.8×9.3 mm
    Surface :Glare (Haze 0%)
    Brightness :0 cd/m2
    Contrast Ratio :150:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 43%
    Response Time :15/55 (Typ.)(Tr/Td)
    Viewing Angle :30/30/20/20 (Min.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :No B/L
    Signal Interface :Parallel RGB (1 ch, 6-bit) , 34 pins
    Input Voltage :3.3/5.0V (Typ.)(VCC)

    Competitive Advantage:
    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!

    Packaging & Delivery

    · Delivery Lead Time :2~3 weeks

    · Minimum Order :1 pcs LCD Panel

    · Supply Ability :100 PCS / Per Day


    NEC NL6448CC33-30 Mechanical Features

    Panel Size :10.4 inch
    Dot Resolution :640(RGB)×480 (VGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :76 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.110×0.330 mm (H×V)
    Pixel Pitch :0.330×0.330 mm (H×V)
    Weight :300g (Typ.)
    Surface :Glare (Haze 0%)
    Active Area :211.2×158.4 mm (H×V)
    Bezel Area :214.0×161.2 mm (H×V)
    Outline Dimension :264×187.8 mm (H×V)
    Outline Depth :8.8±0.5 mm
    Holes & Brackets :Face mounting holes (4-Φ3.5) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED043WC1E Ink4.3"480×800
    ED043WC3E Ink4.3"480×800
    ED060XD6E Ink6.0"758×1024
    SMA058HRG1E Ink5.8"600×448
    SMA058H7G1E Ink5.8"600×448
    ED035OC1E Ink3.5"360×600
    ET014TT1E Ink1.43"128×296
    TD015OC1E Ink1.54"200×200
    ED060XC3E Ink6.0"758×1024
    ED060SCNE Ink6.0"600×800

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

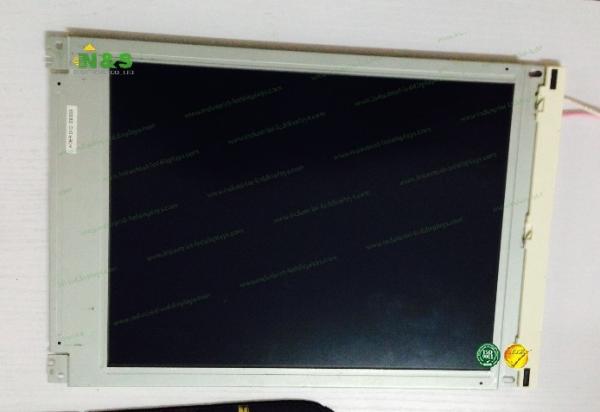

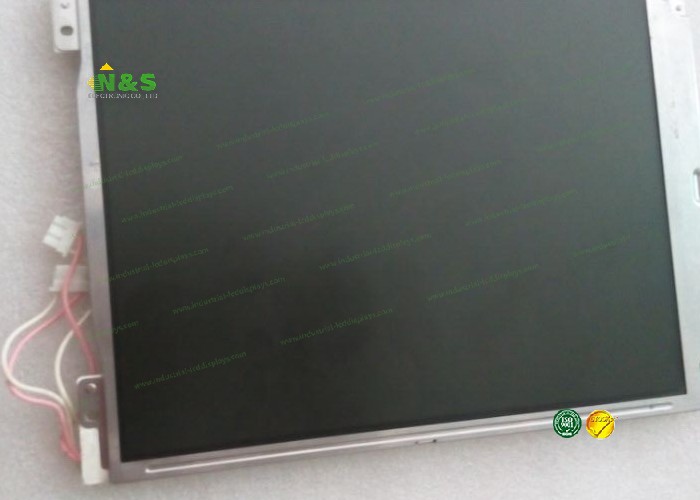

    NL6448CC33-30 Picture
