TX11D101VM0EAA 4.3 inch lcd flat panel with 56.16×93.6 mm Active Area

    Buy cheap TX11D101VM0EAA 4.3 inch lcd flat panel with 56.16×93.6 mm Active Area from wholesalers

    Buy cheap TX11D101VM0EAA 4.3 inch lcd flat panel with 56.16×93.6 mm Active Area from wholesalers
    • Buy cheap TX11D101VM0EAA 4.3 inch lcd flat panel with 56.16×93.6 mm Active Area from wholesalers
    • Buy cheap TX11D101VM0EAA 4.3 inch lcd flat panel with 56.16×93.6 mm Active Area from wholesalers

    TX11D101VM0EAA 4.3 inch lcd flat panel with 56.16×93.6 mm Active Area

    Ask Lasest Price
    Brand Name : HITACHI
    Model Number : TX11D101VM0EAA
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    TX11D101VM0EAA 4.3 inch lcd flat panel with 56.16×93.6 mm Active Area

    TX11D101VM0EAA Hitachi LCD Panel 4.3 inch with 56.16×93.6 mm Active Area


    TX11D101VM0EAA Quick Details:

    Panel Brand :HITACHI
    Panel Model :TX11D101VM0EAA
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :4.3 inch
    Resolution :480(RGB)×800 , WVGA
    Display Mode :IPS, Normally Black, Transmissive
    Active Area :56.16×93.6 mm
    Outline :59.96×101.7 mm
    Surface :Antireflection
    Brightness :850 cd/m2 (Typ.)
    Contrast Ratio :1000:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 70%
    Response Time :35 (Typ.)(Tr+Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :9S1P WLED
    Signal Interface :MIPI (3 data lanes) , 24 pins
    Input Voltage :1.8/2.8/2.8V (Typ.)(IOVCC/VCC/VCI)

    HITACHI TX11D101VM0EAA Mechanical Features

    Panel Size :4.3 inch
    Dot Resolution :480(RGB)×800 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :217 PPI
    Aspect Ratio :3:5 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.039×0.117 mm (H×V)
    Pixel Pitch :0.117×0.117 mm (H×V)
    Weight :14.1g (Typ.)
    Surface :Antireflection
    Active Area :56.16×93.6 mm (H×V)
    Outline Dimension :59.96×101.7 mm (H×V)
    Outline Depth :1.4 mm
    Landscape or Portrait :Portrait type
    Touch Panel :Without

    What is Our Advantage?

    1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.

    6. Reasonable price.


    FAQ

    Q1: Can I place sample order first?

    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

    Q2: How could I pay them?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: How to place the order?

    A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

    Q4: How long can I get my order?

    A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

    Q5: How to send us the products?

    A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    HTT22QC2-S01HYDIS2.2"176×220
    HV121X02-101HYDIS12.1"1024×768
    HX104X03-101HYDIS10.4"1024×768
    HVT35HV1-DE0HYDIS3.5"320×480
    HVA40WV2-D02HYDIS4.0"480×800
    HVA35WV1-D03HYDIS3.5"480×800
    HVA35WV1-D02HYDIS3.5"480×800
    HV070WS1-D01HYDIS7.0"1024×600
    HX104X02-101HYDIS10.4"1024×768
    HVT31HV1-D00HYDIS3.1"320×480
    HVA43WV1-D01HYDIS4.3"480×800
    HVA43WV1-D00HYDIS4.3"480×800

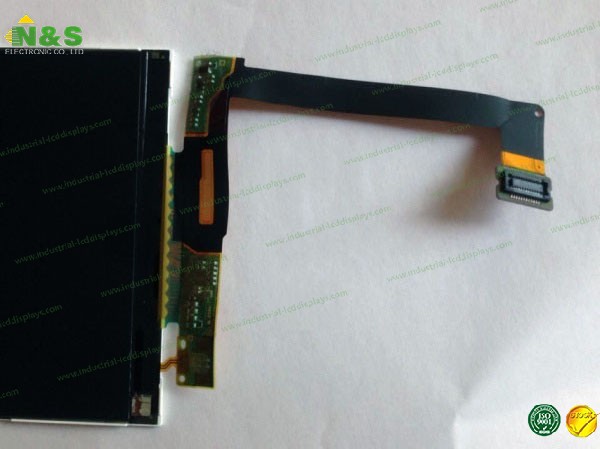

    TX11D101VM0EAA Picture
