    LM046QB1S02 4.6 inch Sharp LCD Panel Transflective for Industrial Application

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LM046QB1S02
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    LM046QB1S02 4.6 inch Sharp LCD Panel Transflective for Industrial Application

    LM046QB1S02 4.6 inch Sharp LCD Panel Transflective for Industrial Application

    LM046QB1S02 Quick Details:

    Panel Brand :SHARP
    Panel Model :LM046QB1S02
    Panel Type :FSTN-LCD , LCM
    Panel Size :4.6 inch
    Resolution :320×240 , QVGA
    Display Mode :STN, Black/White (Positive), Transflective
    Active Area :94.39×70.79 mm
    Outline :134×100 mm
    Brightness :100 cd/m2 (Typ.)
    Contrast Ratio :4:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective)
    Display Colors :Monochrome
    Response Time :180/270 (Typ.)(Tr/Td)
    Viewing Angle :35/25/30/25 (Typ.)(CR≥2) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :1 pcs CCFL
    Signal Interface :Parallel Data (4-bit) , 20 pins
    Input Voltage :3.3V (Typ.)


    What is Our Advantage?

    1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.

    6. Reasonable price.

    FAQ
    Q1: Can I place sample order first?
    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
    Q2: How could I pay them?
    A2: We accept T/T, Western Union, MoneyGram, Paypal.
    Q3: How to place the order?
    A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
    Q4: How long can I get my order?
    A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
    Q5: How to send us the products?
    A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

    SHARP LM046QB1S02 Optical Features

    Display Mode :STN, Black/White (Positive), Transflective
    Brightness :100 cd/m2 (Typ.)
    Contrast Ratio :4 : 1 (Typ.) (Transmissive)
    Contrast Ratio :5:1 (Typ.) (Reflective)
    Display Color :Monochrome ()
    Response Time :180/270 (Typ.)(Tr/Td)
    Viewing Angle :35/25/30/25 (Typ.)(CR≥2) (L/R/U/D)
    Sunlight Readable :Y


    Here comes our other LCD panels stock for your easy reference:
    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    LM121VB1T02SHARP12.1"640×480
    LM121VB1T01SHARP12.1"640×480
    LM32015TSHARP5.7"320×240
    LM8V302DSHARP7.7"640×480
    LM104VC1T51 RSHARP10.4"640×480
    LM104VC1T51SHARP10.4"640×480
    LM7M632RSHARP6.5"640×240
    LM64P30RSHARP9.4"640×480
    LM320195SHARP5.7"320×240

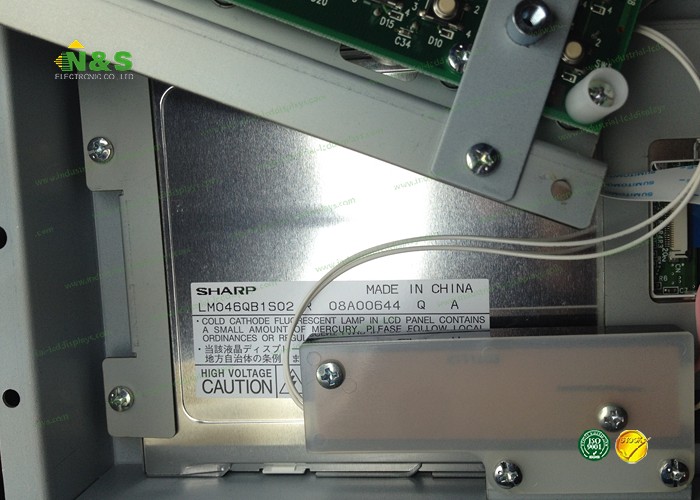

    Details Picture for LM046QB1S02
