5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm

    Buy cheap 5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm from wholesalers

    Buy cheap 5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm from wholesalers
    • Buy cheap 5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm from wholesalers

    5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm

    Ask Lasest Price
    Brand Name : HITACHI
    Model Number : SP14Q002-A1
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm

    5.7 inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm


    SP14Q002-A1 Characteristic

    Panel Brand :HITACHI
    Panel Model :SP14Q002-A1
    Panel Type :FSTN-LCD , LCM
    Panel Size :5.7 inch
    Resolution :320×240 , QVGA
    Display Mode :STN, Black/White (Negative), Transmissive
    Active Area :115.185×86.385 mm
    Outline :167×109×10 mm
    Surface :Antiglare
    Brightness :140 cd/m2 (Typ.)
    Contrast Ratio :25:1 (Typ.)
    Display Colors :Monochrome
    Response Time :120/150 (Typ.)(Tr/Td)
    Viewing Angle :40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D)
    Frequency :75Hz
    Lamp Type :1 pcs CCFL
    Signal Interface :Parallel Data (4-bit) , 14 pins
    Input Voltage :3.3/5.0V (Typ.)(VDD)

    HITACHI SP14Q002-A1 Mechanical Features

    Panel Size :5.7 inch
    Dot Resolution :320×240 (QVGA)
    Pixel Configuration :Rectangle
    Pixel Density :70 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.360×0.360 mm (H×V)
    Pixel Pitch :0.360×0.360 mm (H×V)
    Surface :Antiglare
    Active Area :115.185×86.385 mm (H×V)
    Bezel Area :122.0×92.0 mm (H×V)
    Outline Dimension :167×109 mm (H×V)
    Outline Depth :8.5/10.0 (Typ.Max.) mm
    Holes & Brackets :Face mounting holes (4-Φ3.5) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    HTT22QC2-S01HYDIS2.2"176×220
    HV121X02-101HYDIS12.1"1024×768
    HX104X03-101HYDIS10.4"1024×768
    HVT35HV1-DE0HYDIS3.5"320×480
    HVA40WV2-D02HYDIS4.0"480×800
    HVA35WV1-D03HYDIS3.5"480×800
    HVA35WV1-D02HYDIS3.5"480×800
    HV070WS1-D01HYDIS7.0"1024×600
    HX104X02-101HYDIS10.4"1024×768

    Our Company Strength in LCD Screen Sourcing:

    1. ISO9001 certificated, Factory Direct Supplied
    2. Competitive Price and Short Lead-time
    3. Professional Team with Rich Experiences in LCD screen international trade communication.
    4. Small MOQ Support & Fast Response to Customers
    5. Long Product Life Time
    6. 1 Year warranty for our LCD screen replacements.

    FAQ

    Q1: How do we place an order?

    A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

    Q2: How do we make the payment?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: What's the delivery time?

    A3: The delivery time is normally 1-3 working days after payment.

    Q4: How would the goods be shipped?

    A4: We ship via DHL, UPS, TNT and others.

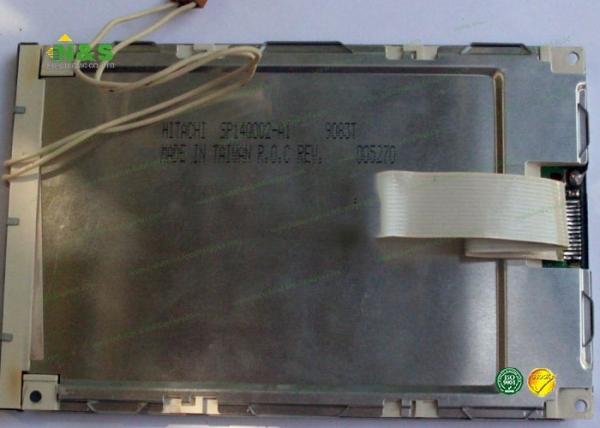

    SP14Q002-A1 Picture


    Quality 5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm for sale
