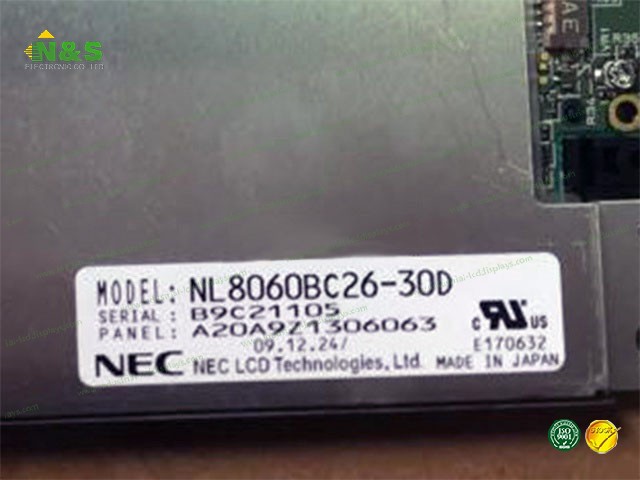

    10.4 Inch NL8060BC26-30D NEC LCD Panel , Flat Panel Lcd Display with 211.2×158.4 mm

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL8060BC26-30D
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    10.4 Inch NL8060BC26-30D NEC LCD Panel , Flat Panel Lcd Display with 211.2×158.4 mm


    10.4 Inch NL8060BC26-30D NEC LCD Panel , Flat Panel Lcd Display with 211.2×158.4 mm


    NL8060BC26-30D Characteristic

    Panel Brand :NEC
    Panel Model :NL8060BC26-30D
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :10.4 inch
    Resolution :800(RGB)×600 , SVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :211.2×158.4 mm
    Outline :243×185.1×11 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :400 cd/m2 (Typ.)
    Contrast Ratio :1000:1 (Typ.)
    Display Colors :262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40%
    Response Time :3/15 (Typ.)(Tr/Td)
    Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :2 pcs CCFL
    Signal Interface :LVDS (1 ch, 6/8-bit) , 20 pins
    Input Voltage :3.3V (Typ.)

    Competitive Advantage:

    1. We are a leading vendor & distributor for the LCD panels for more than 6 years.

    2. We got the ISO9001 quality management system certification.

    3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.

    4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.

    5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.

    6. 1-year warranty is offered.

    7. All LCD Panel will be tested before shipment.

    8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.


    FAQ

    Q1: What's price?

    A1: We provide reasonable price and recommend suitable batteries to our customers.

    Q2: What's delivery time?

    A2: The delivery time is normally 1-3 working days after payment.

    Q3: What's the payment?

    A3: We accept T/T, Western Union, MoneyGram, Paypal

    Q4: Can we visit your factory?

    A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    ED133TT1E Ink13.3"2200×1650
    ED060SD1E Ink6.0"600×800
    ED060SCTE Ink6.0"600×800
    ET043OC1E Ink4.4"360×640
    EN133UT1E Ink13.3"1600×1200
    ED047TC1E Ink4.7"540×960
    ED133UT1E Ink13.3"1600×1200
    ES133UT1E Ink13.3"1600×1200
    ED060SCQE Ink6.0"600×800
    ED097OD2E Ink9.7"1200×825

    NEC NL8060BC26-30D Mechanical Features

    Panel Size :10.4 inch
    Dot Resolution :800(RGB)×600 (SVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :96 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.088×0.264 mm (H×V)
    Pixel Pitch :0.264×0.264 mm (H×V)
    Weight :475/500g (Typ./Max.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :211.2×158.4 mm (H×V)
    Bezel Area :215.4×161.8 mm (H×V)
    Outline Dimension :243×185.1 mm (H×V)
    Outline Depth :10.5±0.5 mm
    Holes & Brackets :Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    NL8060BC26-30D
