    N080ICE-GB1 Innolux LCD Panel Displays 8.0 inch 107.64×172.224 mm

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : N080ICE-GB1
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    N080ICE-GB1 Innolux LCD Panel Displays 8.0 inch 107.64×172.224 mm


    N080ICE-GB1 Innolux LCD Panel Displays 8.0 inch 107.64×172.224 mm

    N080ICE-GB1 General Features

    Panel Brand :INNOLUX
    Panel Model :N080ICE-GB1
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :8.0 inch
    Resolution :800(RGB)×1280 , WXGA
    Display Mode :AAS, Normally Black, Transmissive
    Active Area :107.64×172.224 mm
    Outline :120.65×187.64×5.1 mm
    Surface :Hard coating (3H), Antireflection
    Brightness :350 cd/m2 (Typ.)
    Contrast Ratio :800:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 60%
    Response Time :25 (Typ.)(Tr+Tf)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)


    FAQ
    Q1: How do we place an order?
    A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
    Q2: How do we make the payment?
    A2: We accept T/T, Western Union, MoneyGram, Paypal.
    Q3: What's the delivery time?
    A3: The delivery time is normally 1-3 working days after payment.
    Q4: How would the goods be shipped?
    A4: We ship via DHL, UPS, TNT and others.

    Shipment for the LCD Display Panels:
    1. Safe & Professional package for our LCD panels.
    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LH500X01-SH01LG Display5.0"768×1024
    LH500WX1-SH03LG Display5.0"720×1280
    LH450WV4-SH02LG Display4.5"480×800
    LH430WV4-SH01LG Display4.3"480×800
    LH430WV1-SH05LG Display4.3"480×800
    LH430M02-SH01LG Display4.3"540×960
    LH350H05-SH03LG Display3.5"320×480

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

    INNOLUX N080ICE-GB1 Mechanical Features

    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×1280 (WXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :188 PPI
    Aspect Ratio :10:16 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.04485×0.13455 mm (H×V)
    Pixel Pitch :0.13455×0.13455 mm (H×V)
    Weight :99.0g (Max.)
    Surface :Hard coating (3H), Antireflection
    Active Area :107.64×172.224 mm (H×V)
    Outline Dimension :120.65×187.64 mm (H×V)
    Outline Depth :2.9/5.1 (Typ./Max.) mm
    Holes & Brackets :Without
    Landscape or Portrait :Portrait type
    Touch Panel :Without

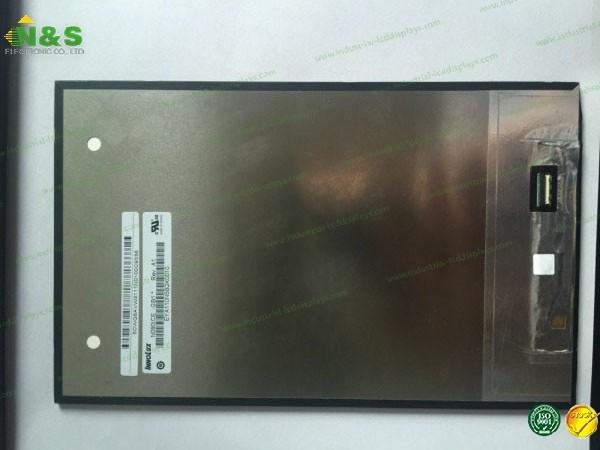

    N080ICE-GB1 Picture
