Brand Name : | Tianma |
Model Number : | TM035KBH02 |
Certification : | ISO9001 |
Payment Terms : | T/T, Western Union,paypal |
Supply Ability : | 100 PCS / DAY |
Delivery Time : | 2-3 working days after payment confirmation |

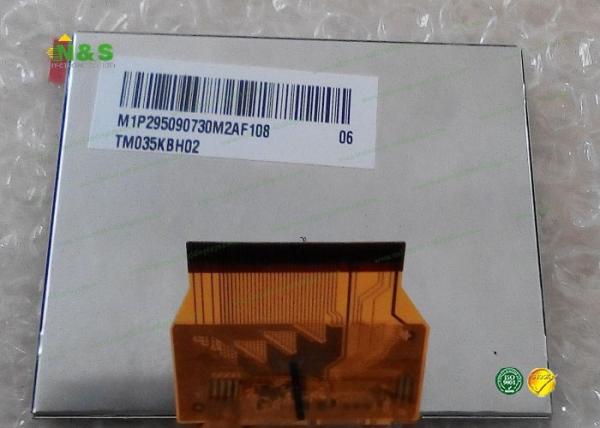

TM035KBH02 3.5 inch 60Hz anti glare lcd screen with 70.08×52.56 mm Active Area
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich
experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within
24hours once receiving the payment. Tracking number would be
informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers
encountered!
TM035KBH02 Characteristic
Panel Brand : | TIANMA |
Panel Model : | TM035KBH02 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 3.5 inch |
Resolution : | 320(RGB)×240 , QVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 70.08×52.56 mm |
Outline : | 76.9×63.9×4.2 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 350 cd/m2 (Typ.) |
Contrast Ratio : | 500:1 (Typ.) |
Display Colors : | 16.7M (6-bit + Dithering) , CIE1931 50% |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 6S1P WLED Without Driver |
Signal Interface : | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins |
Input Voltage : | 3.3V (Typ.) |
Panel Size : | 3.5 inch |
Dot Resolution : | 320(RGB)×240 (QVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 115 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.073×0.219 mm (H×V) |
Pixel Pitch : | 0.219×0.219 mm (H×V) |
Weight : | 40.0g (Typ.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 70.08×52.56 mm (H×V) |
Bezel Area : | 72.08×54.56 mm (H×V) |
Outline Dimension : | 76.9×63.9 mm (H×V) |
Outline Depth : | 4.0±0.2 mm |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
TM050XYSP02 | Tianma | 5.0" | 540×960 |
TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
![]() |
