Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area from wholesalers

    Buy cheap Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area from wholesalers
    • Buy cheap Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area from wholesalers

    Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL4827HC19-05B
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area

    Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area


    NL4827HC19-05B Detail

    Panel Brand :NEC
    Panel Model :NL4827HC19-05B
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :4.3 inch
    Resolution :480(RGB)×272 , WQVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :95.04×53.856 mm
    Outline :105.5×67.2 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :500 cd/m² (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 60%
    Response Time :33 (Typ.)(Tr+Td)
    Viewing Angle :50/50/70/40 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :2 strings WLED Without Driver
    Signal Interface :CMOS (1 ch, 8-bit) , 51 pins
    Input Voltage :3.0/5.0V (Typ.)(VCC/VDD)

    We can do for You:

    1. Quality Guarantee:

    100% original new Hard Disk for you.

    2.Fast reply:

    Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

    3.Delivery Guarantee:

    Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

    4.After-Sale Service:

    Professional support team to provide effective service, we are young and full of passion!

    5. Professional acknowledgement of hard disks to provide customers with effective advice.

    We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

    6. Competitive quotation:

    Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.


    Packaging & Shipping:

    Delivery Information:
    Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
    Shipping Method:
    By Express: FedEx, DHL, EMS, TNT, UPS,
    By Logistics: By air
    Shipping Time:
    From Monday to Saturday 8:00am-17:30pm
    Shipping Address:
    If by T/T, shipping address as communicate.


    Panel Size :4.3 inch
    Dot Resolution :480(RGB)×272 (WQVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :128 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.066×0.198 mm (H×V)
    Pixel Pitch :0.198×0.198 mm (H×V)
    Weight :72.0/74.0g (Typ./Max.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :95.04×53.856 mm (H×V)
    Outline Dimension :105.5×67.2 mm (H×V)
    Outline Depth :4.8 (Typ.) mm
    Landscape or Portrait :Landscape type
    Touch Panel :Embeded (4-wire Resistive)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED097OC1E Ink9.7"1200×825
    ED080XC2E Ink8.0"1024×768
    ED080XC1E Ink8.0"1024×768
    ED060SC3E Ink6.0"800×600
    ED050SC1E Ink5.0"800×600
    PD035QX7E Ink3.5"320×240
    PW070DS6E Ink7.0"480×234

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

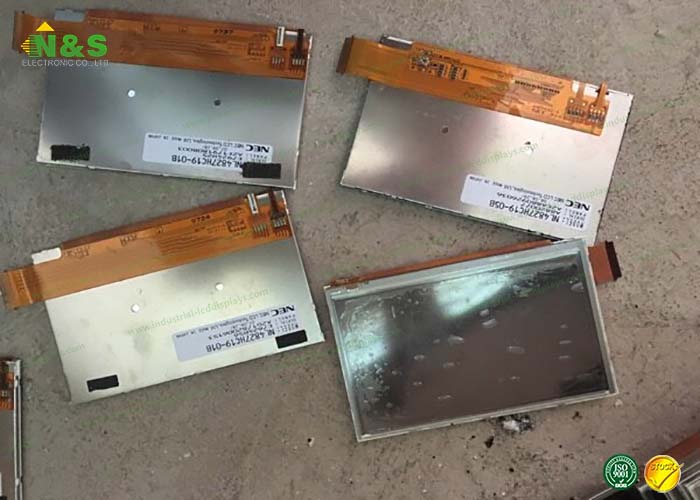

    NL4827HC19-05B NEC LCD Panel Picture
