NL4823HC37-03 7.0 inch Nec Tft Lcd Panel , 76 PPI Industrial Flat Panel Display

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap NL4823HC37-03 7.0 inch Nec Tft Lcd Panel , 76 PPI Industrial Flat Panel Display from wholesalers

    Buy cheap NL4823HC37-03 7.0 inch Nec Tft Lcd Panel , 76 PPI Industrial Flat Panel Display from wholesalers
    • Buy cheap NL4823HC37-03 7.0 inch Nec Tft Lcd Panel , 76 PPI Industrial Flat Panel Display from wholesalers

    NL4823HC37-03 7.0 inch Nec Tft Lcd Panel , 76 PPI Industrial Flat Panel Display

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL4823HC37-03
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    NL4823HC37-03 7.0 inch Nec Tft Lcd Panel , 76 PPI Industrial Flat Panel Display

    NL4823HC37-03 7.0 inch Nec Tft Lcd Panel , 76 PPI Industrial Flat Panel Display


    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2.Your inquiry related to our products or prices will be replied in 24 hours.

    3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.


    Our Company Strength in LCD Screen Sourcing:

    1. ISO9001 certificated, Factory Direct Supplied

    2. Competitive Price and Short Lead-time

    3. Professional Team with Rich Experiences in LCD screen international trade communication.

    4. Small MOQ Support & Fast Response to Customers

    5. Long Product Life Time

    6. 1 Year warranty for our LCD screen replacements.


    NL4823HC37-03 NEC LCD Panel Detail

    Panel Brand :NEC
    Panel Model :NL4823HC37-03
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :7.0 inch
    Resolution :480(RGB)×234
    Display Mode :SA-SFT, Normally Black, Transmissive
    Active Area :154.08×87.05 mm
    Outline :170×104 mm
    Surface :Hard coating (3H), Antireflection
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :300:1 (Typ.)
    Display Colors :Full color , CIE1931 40%
    Response Time :38/27 (Typ.)(Tr/Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :1 pcs CCFL Without Driver
    Signal Interface :TFT Specific Analog RGB , 32 pins
    Input Voltage :5.0/5.4/15.0/-14.0V (Typ.)(VCC/VDD/VGON/VGOFF)

    Panel Size :7.0 inch
    Dot Resolution :480(RGB)×234
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :76 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.107×0.372 mm (H×V)
    Pixel Pitch :0.321×0.372 mm (H×V)
    Weight :180/190g (Typ./Max.)
    Surface :Hard coating (3H), Antireflection
    Active Area :154.08×87.05 mm (H×V)
    Bezel Area :158.2×91.6 mm (H×V)
    Outline Dimension :170×104 mm (H×V)
    Outline Depth :8.0±0.5 (w/o pole) mm
    Holes & Brackets :Rear mounting holes (4-Φ2.2) on pole.
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    V1835HC1H1E Ink3.5"320×480
    PW100XU2E Ink10.0"640×468
    PW090XUDE Ink9.0"640×220
    PW090XUCE Ink9.0"640×220
    PW090XUBE Ink9.0"640×220
    PW090XUAE Ink9.0"640×220
    PW090XU8E Ink9.0"640×220
    PW090XU7E Ink9.0"640×220
    PW090XU6E Ink9.0"640×220
    PW090XSAE Ink9.0"640×220

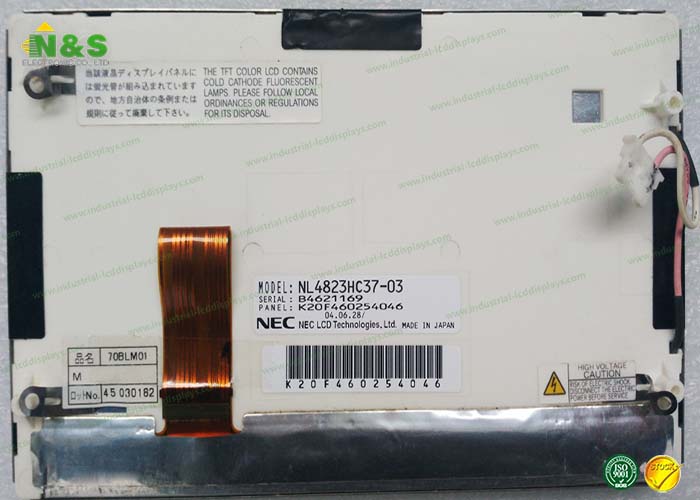

    NL4823HC37-03 NEC LCD Panel Picture
