NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area from wholesalers

    Buy cheap NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area from wholesalers
    • Buy cheap NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area from wholesalers

    NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL256204AM15-04A
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area

    NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area


    NL256204AM15-04A Information

    Panel Brand :NEC
    Panel Model :NL256204AM15-04A
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :20.1 inch
    Resolution :2560(LCR)×2048 , QSXGA
    Display Mode :UA-SFT, Normally Black, Transmissive
    Active Area :399.36×319.49 mm
    Outline :423.4×343.5×44.5 mm
    Surface :Antiglare, Hard coating (2H)
    Brightness :850 cd/m² (Typ.)
    Contrast Ratio :900:1 (Typ.)
    Display Colors :Grayscale (8-bit)
    Response Time :15/15 (Typ.)(Tr/Td)
    Viewing Angle :88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :12 pcs CCFL Embedded (Inverter)
    Signal Interface :LVDS (4 ch, 8-bit) , 80 pins
    Input Voltage :12.0V (Typ.)

    Panel Size :20.1 inch
    Dot Resolution :2560(LCR)×2048 (QSXGA)
    Pixel Configuration :LCR Vertical Stripe
    Pixel Density :162 PPI
    Aspect Ratio :5:4 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.052×0.156 mm (H×V)
    Pixel Pitch :0.156×0.156 mm (H×V)
    Weight :2.30/2.60Kgs (Typ./Max.)
    Surface :Antiglare, Hard coating (2H)
    Active Area :399.36×319.49 mm (H×V)
    Bezel Area :404.2×324.4 mm (H×V)
    Outline Dimension :423.4×343.5 mm (H×V)
    Outline Depth :43.5±1.0 mm
    Holes & Brackets :Side mounting holes
    Landscape or Portrait :Landscape type
    Touch Panel :

    Without


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    ED097OC1E Ink9.7"1200×825
    ED080XC2E Ink8.0"1024×768
    ED080XC1E Ink8.0"1024×768
    ED060SC3E Ink6.0"800×600
    ED050SC1E Ink5.0"800×600
    PD035QX7E Ink3.5"320×240
    PW070DS6E Ink7.0"480×234
    P1924QC1E Ink2.4"240×320

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.


    Our Service

    1. Small quantity also can be provided.

    2. New models can be updated fast.
    3. We have strict QC team to make sure all products are qualified before delivery.
    4. Warranty promise

    5. Sourcing line for different hard disks for different brands.

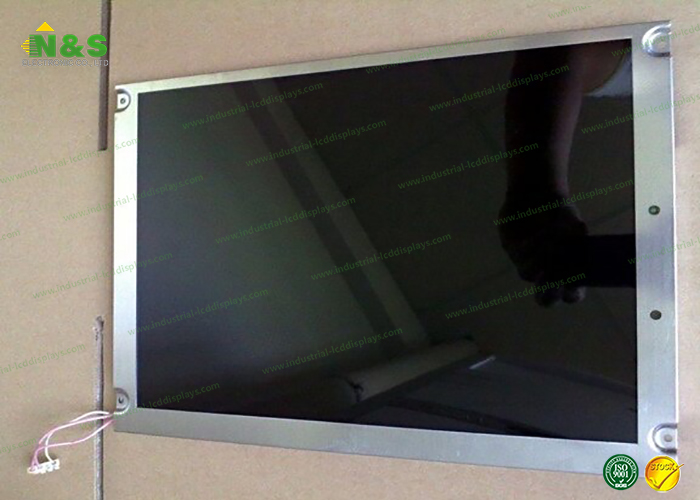

    NL256204AM15-04A NEC LCD Panel Picture
