NEC Antiglare NL160120BM27-03A Nec Large Screen Display 21.3 Inch For Medical Display Panel

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap NEC Antiglare NL160120BM27-03A Nec Large Screen Display 21.3 Inch For Medical Display Panel from wholesalers

    Buy cheap NEC Antiglare NL160120BM27-03A Nec Large Screen Display 21.3 Inch For Medical Display Panel from wholesalers
    • Buy cheap NEC Antiglare NL160120BM27-03A Nec Large Screen Display 21.3 Inch For Medical Display Panel from wholesalers

    NEC Antiglare NL160120BM27-03A Nec Large Screen Display 21.3 Inch For Medical Display Panel

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL160120BM27-03A
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    NEC Antiglare NL160120BM27-03A Nec Large Screen Display 21.3 Inch For Medical Display Panel

    NEC Antiglare NL160120BM27-03A LCD Panel 21.3 inch for Medical Display panel


    NL160120BM27-03A Information

    Panel Brand :NEC
    Panel Model :NL160120BM27-03A
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :21.3 inch
    Resolution :1600(LCR)×1200 , UXGA
    Display Mode :SA-SFT, Normally Black, Transmissive
    Active Area :432×324 mm
    Outline :457×350×25.5 mm
    Surface :Antiglare, Hard coating (2H)
    Brightness :1000 cd/m² (Typ.)
    Contrast Ratio :700:1 (Typ.)
    Display Colors :Grayscale (8-bit)
    Response Time :17/18 (Typ.)(Tr/Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :6 pcs CCFL Without Driver
    Signal Interface :LVDS (2 ch, 8-bit) , 40 pins
    Input Voltage :12.0V (Typ.)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    F050A10-603Innolux5.0"540×960
    PW070DS6E Ink7.0"480×234
    Q30055A101Innolux3.0"240×400
    F03213-01UInnolux3.2"240×400
    N156HGE-PB1Innolux15.6"1920×1080
    V650HP1-PS6 Rev.B2Innolux65"1920×1080
    F020G1-T10Innolux2.0"176×220
    PH055IA-02AInnolux5.5"720×1280
    PP055IC-01DInnolux5.5"1080×1920
    EE030NA-04AInnolux3.0"960×480(dot)

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    Panel Size :21.3 inch
    Dot Resolution :1600(LCR)×1200 (UXGA)
    Pixel Configuration :LCR Vertical Stripe
    Pixel Density :94 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.090×0.270 mm (H×V)
    Pixel Pitch :0.270×0.270 mm (H×V)
    Weight :3.75/4.00Kgs (Typ./Max.)
    Surface :Antiglare, Hard coating (2H)
    Active Area :432×324 mm (H×V)
    Bezel Area :438.2×330.0 mm (H×V)
    Outline Dimension :457×350 mm (H×V)
    Outline Depth :25±0.5 mm
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    After-sale Services:

    1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).

    2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.

    3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.

    We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.


    The reasons you choose us

    1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

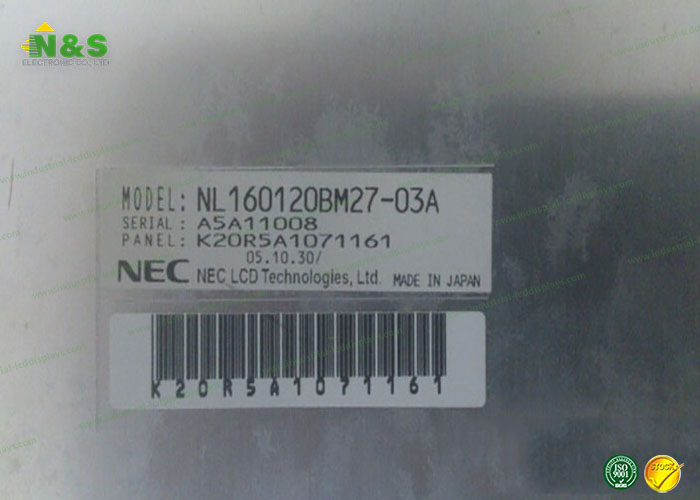

    NL160120BM27-03A NEC LCD Panel Picture
