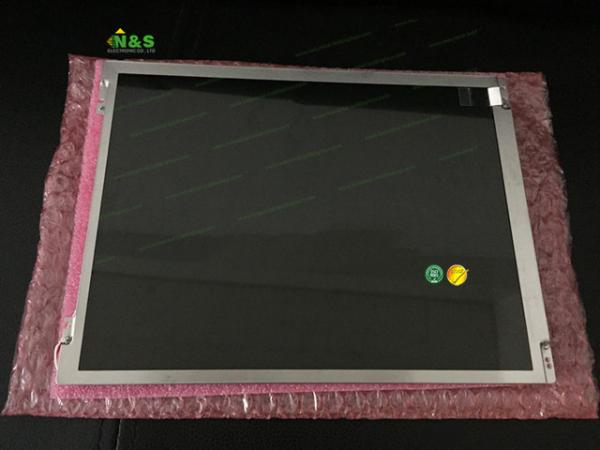

TM104SDH01 Tianma LCD Displays 236×176.9×5.9 mm Outline , 96 PPI Pixel Density

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap TM104SDH01 Tianma LCD Displays 236×176.9×5.9 mm Outline , 96 PPI Pixel Density from wholesalers

    Buy cheap TM104SDH01 Tianma LCD Displays 236×176.9×5.9 mm Outline , 96 PPI Pixel Density from wholesalers
    • Buy cheap TM104SDH01 Tianma LCD Displays 236×176.9×5.9 mm Outline , 96 PPI Pixel Density from wholesalers
    • Buy cheap TM104SDH01 Tianma LCD Displays 236×176.9×5.9 mm Outline , 96 PPI Pixel Density from wholesalers

    TM104SDH01 Tianma LCD Displays 236×176.9×5.9 mm Outline , 96 PPI Pixel Density

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM104SDH01
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    TM104SDH01 Tianma LCD Displays 236×176.9×5.9 mm Outline , 96 PPI Pixel Density

    Normally White TM104SDH01 TIANMA 10.4 inch 211.2×158.4 mm Active Area LCD display for 60Hz

    TM104SDH01 Products Information:


    Panel ModelTM104SDH01
    Panel BrandTIANMA
    Descritiona-Si TFT-LCD ,10.4 inch, 800×600
    Panel Typea-Si TFT-LCD
    Display ModeTN, Normally White, Transmissive
    Active Area211.2×158.4 mm
    Outline236×176.9×5.9 mm
    SurfaceAntiglare, Hard coating (3H)
    Contrast Ratio400:1 (Typ.)
    Display Colors262K (6-bit) , CIE1931 50%
    Response Time10/15 (Typ.)(Tr/Td)
    Viewing Angle70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency60Hz
    Lamp Type6S6P WLED Without Driver
    Signal InterfaceLVDS (1 ch, 6-bit) , 20 pins
    Input Voltage3.3V (Typ.)

    TM104SDH01 Mechanical Features

    Dot Resolution800(RGB)×600 (SVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density96 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.088×0.264 mm (H×V)
    Pixel Pitch0.264×0.264 mm (H×V)
    Weight288g


    FAQ
    1. Q: Where can I get the price?
    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
    2. Q: How can I get a sample to check your quality?
    A: After price confirmation, you can require for samples to check our quality.
    3. Q: What about the lead time for mass production?
    A: It depends on your order quantity and the season you place the order.
    4. Q: What are your terms of payment?
    A: We accept T/T, Western Union, MoneyGram, PayPal.

    Here comes our other LCD panels stock for your easy reference:
    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    TM050XYS01Tianma5.0"272×480
    TM035PYS01Tianma3.5"320×480
    TM032HYH01Tianma3.2"240×320
    TL060JYXP02Tianma9.0"720×1280
    TL055VYXP02Tianma5.5"1080×1920
    TM024HYH01Tianma2.4"240×320
    TS022GAADY02Tianma2.2"176×220
    TM057JYHP03Tianma5.7"720×1280


    Packaging & Delivery
    Packaging Details:
    Safey package
    Plastic trays inside
    2 layes of cartons
    Fragile sign on top
    Can be customize 3.5 inch spare parts auo used lcd panel
    Delivery Detail: 1-3 Working Days
