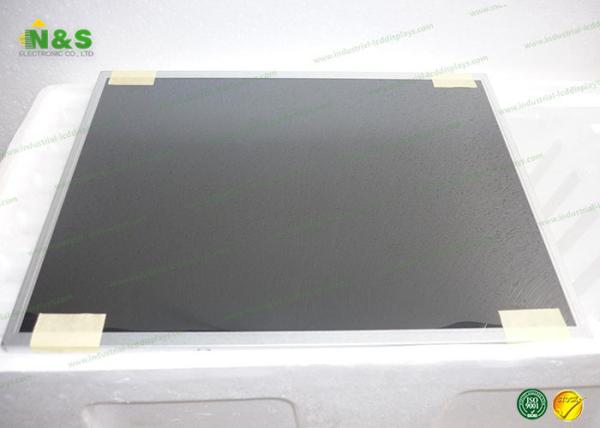

M170E8-L01 Innolux 17.0 inch 358.5×296.5×13.5 mm Outline TN, Normally White

M170E8-L01 Information

Panel Size :	17.0 inch
Dot Resolution :	1280(RGB)×1024 (SXGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	96 PPI
Aspect Ratio :	5:4 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.088×0.264 mm (H×V)
Pixel Pitch :	0.264×0.264 mm (H×V)
Weight :	1.44/1.49Kgs (Typ./Max.)
Surface :	Antiglare (Haze 25%), Hard coating (3H)
Active Area :	337.92×270.336 mm (H×V)
Bezel Area :	341.9×274.4 mm (H×V)
Outline Dimension :	358.5×296.5 mm (H×V)
Outline Depth :	13.0/13.5 (Typ./Max.) mm
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait :	Landscape type
Touch Panel :	Without
Display Mode :	TN, Normally White, Transmissive
Brightness :	250 cd/m² (Typ.)
Contrast Ratio :	1000 : 1 (Typ.) (Transmissive)
Display Color :	16.7M (6-bit + Hi-FRC)
Color Gamut :	72% NTSC (CIE1931)
Response Time :	1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle :	85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity :	Wx:0.313; Wy:0.329
White Variation :	1.33 (Max.)(9 points)
Sunlight Readable :	N
Amount per Box :	10 pcs
Box Size :	440×280×375 mm (L×W×H)
Box Gross Weight :	20.2 Kgs
