N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI from wholesalers

    Buy cheap N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI from wholesalers
    • Buy cheap N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI from wholesalers
    • Buy cheap N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI from wholesalers

    N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : N080ICE-GB1
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI

    N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI


    After-sale service:
    1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
    2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    3.We offered training to our customer who includes operating and maintenance of our products.
    4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
    5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
    6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare


    N080ICE-GB1 Specification


    Panel Brand :INNOLUX
    Panel Model :N080ICE-GB1
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :8.0 inch
    Resolution :800(RGB)×1280 , WXGA
    Display Mode :AAS, Normally Black, Transmissive
    Active Area :107.64×172.224 mm
    Outline :120.65×187.64×5.1 mm
    Surface :Hard coating (3H), Antireflection
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :800:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 60%
    Response Time :25 (Typ.)(Tr+Tf)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :WLED Without Driver
    Signal Interface :MIPI (4 data lanes) , 31 pins
    Input Voltage :1.8/3.6V (Typ.)(VDD/VCI)

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    V850DK1-QS1 Rev.C8Innolux85"3840×2160
    V850DK1-QS1 Rev.C2Innolux85"3840×2160
    V650DJ4-QS5 Rev.M1Innolux65"3840×2160
    N080ICP-G01 CELLInnolux8.0"800×1280
    DE080NA-01DInnolux8.0"800×480
    AT080YN01Innolux8.0"1024×600
    PG055IA-03HInnolux5.5"720×1280

    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×1280 (WXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :188 PPI
    Aspect Ratio :10:16 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.04485×0.13455 mm (H×V)
    Pixel Pitch :0.13455×0.13455 mm (H×V)
    Weight :99.0g (Max.)
    Surface :Hard coating (3H), Antireflection
    Active Area :107.64×172.224 mm (H×V)
    Outline Dimension :120.65×187.64 mm (H×V)
    Outline Depth :2.9/5.1 (Typ./Max.) mm
    Holes & Brackets :Without
    Landscape or Portrait :Portrait type
    Touch Panel :Without

    Packaging & Delivery

    · Delivery Lead Time :2~3 weeks

    · Minimum Order :1 pcs LCD Panel

    · Supply Ability :100 PCS / Per Day

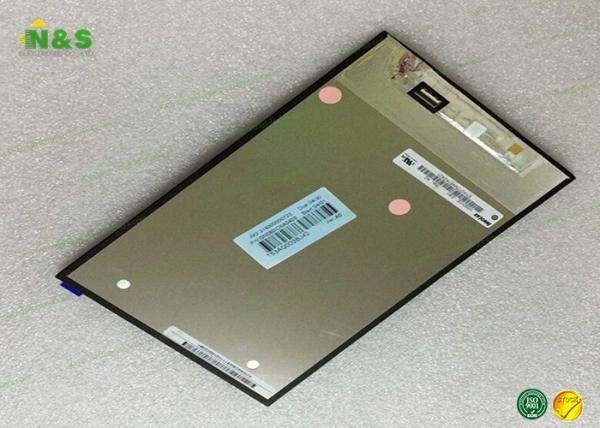

    N080ICE-GB1 Picture
