M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor

    Buy cheap M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor from wholesalers

    Buy cheap M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor from wholesalers
    • Buy cheap M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor from wholesalers

    M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : M238DCJ-E50
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor

    M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor


    M238DCJ-E50 Specification

    Panel Brand :INNOLUX
    Panel Model :M238DCJ-E50
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :23.8 inch
    Resolution :3840(RGB)×2160 , UHD
    Display Mode :MVA, Normally Black, Transmissive
    Active Area :527.04×296.46 mm
    Outline :545×323.4×13.2 mm
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Brightness :
    Contrast Ratio :
    Display Colors :1.07B (8-bit + Hi-FRC) , CIE1931 97%
    Response Time :9.5 (Typ.)(G to G)
    Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :WLED Without Driver
    Signal Interface :eDP (4 Lanes) , 30 pins
    Input Voltage :10.0V (Typ.)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    V850DK1-QS1 Rev.C2Innolux85"3840×2160
    V650DJ4-QS5 Rev.M1Innolux65"3840×2160
    N080ICP-G01 CELLInnolux8.0"800×1280
    DE080NA-01DInnolux8.0"800×480
    AT080YN01Innolux8.0"1024×600
    PG055IA-03HInnolux5.5"720×1280
    PP057IC-01AInnolux5.7"1080×1920
    PG055IC-07FInnolux5.5"1080×1920
    PB050IC-01DInnolux5.0"1080×1920
    PG050IA-02AInnolux5.0"540×960
    V400DK1-QE2Innolux40"3840×2160

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.


    Panel Size :23.8 inch
    Dot Resolution :3840(RGB)×2160 (UHD)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :185 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.04575×0.13725 mm (H×V)
    Pixel Pitch :0.13725×0.13725 mm (H×V)
    Weight :1855±95g
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Active Area :527.04×296.46 mm (H×V)
    Bezel Area :530.2×299.6 mm (H×V)
    Outline Dimension :545×323.4 mm (H×V)
    Outline Depth :8.1/13.2 (Typ./Max.) mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Our Advantage

    As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

    1. AUO LCD Screen
    2. Samsung LCD Display
    3. LG LCD Screen replacements
    4. Sharp LCD panels &Chimei LCD Parts.
    5. Innolux LCD Modules & BOE LCD Screen.

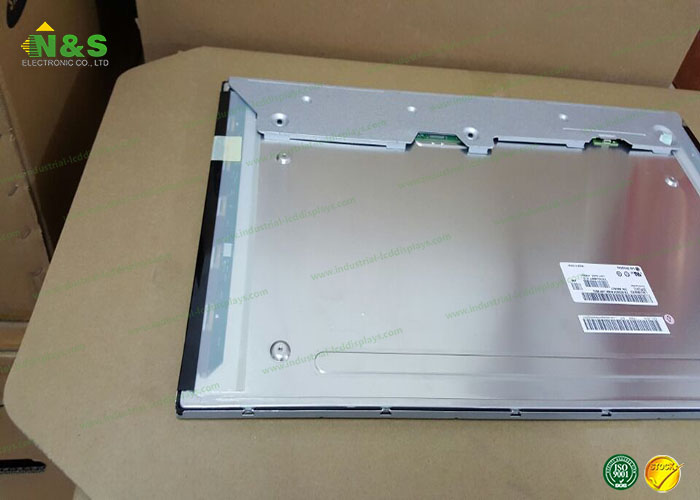

    M238DCJ-E50 Picture
